Metering & mixing & dispensing two-component adhesive like PU, epoxy , silicone into driver cases, display module, transformers,ignition coils, motor, power supply and other electronic components which need to be dispensed materials , other products where want to apply fluids and so on….
All Products
Manufacturing Plant CCD Vision Dispensing System for 2 Components Epoxy Silicones Polyurethane
| Place of Origin | China |
|---|---|
| Brand Name | Daheng |
| Price | $20,000.00/pieces 1-1 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Gluing Machine | Applicable Industries | Manufacturing Plant |
|---|---|---|---|
| Showroom Location | Turkey, Italy, Viet Nam, Russia, Malaysia | Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided | Warranty Of Core Components | 1 Year |
| Core Components | PLC, Pump | Condition | New |
| Application | Two-component Material Such Like PU, Epoxy , Silicone | Packaging Type | POLYWOOD CASE |
| Packaging Material | Plastic, Wood | Automatic Grade | Automatic |
| Driven Type | Electric | Voltage | 230V,380V ,customized |
| Dimension(L*W*H) | 1928x1650x1851 | Weight | 600 KG |
| Warranty | 1 Year | Key Selling Points | High-accuracy |
| Name | CCD AB Component Glue Dispensing Metering Machine | Working Area | 800x700x100mm |
| Control Mode | PLC | Feeding Way | Vacuum Feeding |
| Tank Capacity | 10L,25L,40L |
Product Description
Product Overview

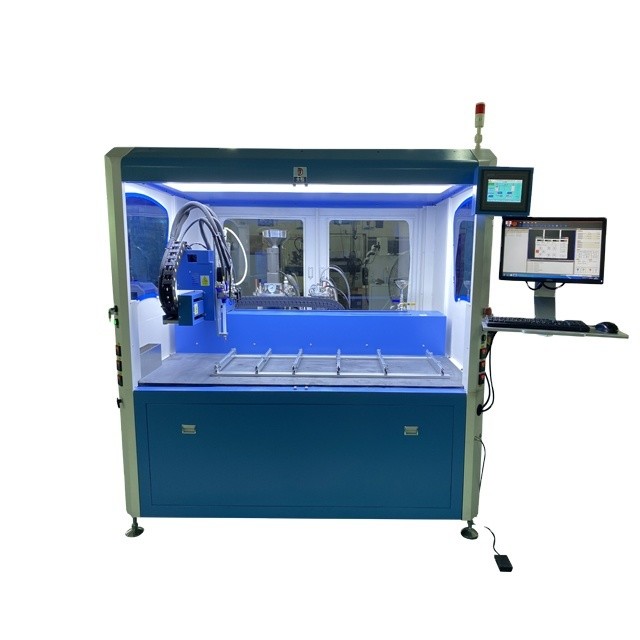

CCD 2-component AB dispensing and metering machine
PGV-502 glue potting machines are the fully automatic glue potting machine launched by Daheng automation. This machine is aiming at epoxy resin , polyurethane, silicone and other two-component materials for materials mixing and automatic perfusion.
Machine introduction ：

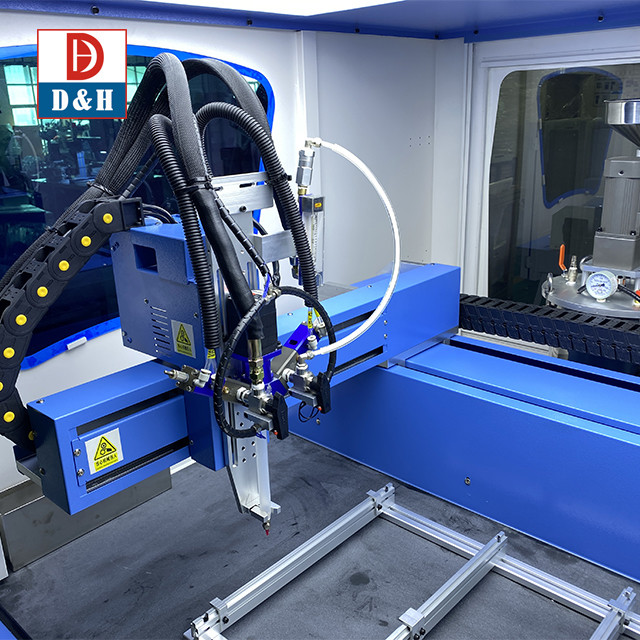

Ultra - high precision double cylinder plunger pump, glue stable and easy to use. Daheng core patent plunger pump
technology,with unique, innovative, practical, advanced; A new generation of fluid measurement ratio control with high accuracy,variable, uninterrupted and long life is realized.
technology,with unique, innovative, practical, advanced; A new generation of fluid measurement ratio control with high accuracy,variable, uninterrupted and long life is realized.
Front elevation
Left elevation
Side elevation
Successful Project
Applications：
Projects in oversea market
Factory Show
Sample customers
Glue mixing ratio | 100:100—100:10 Optional |
Working area | 600（X）*600(Y)*100mm(Z)（effective:400mm（X）） |
Working path | Dot, line , arc , circle |
Positioning method | CCD Visual capture positioning |
Vision system | Visual capture and positioning system software |
Motor | Servo motor (Japan), lead screw + slider (Taiwan brand) |
Production line function | Optional matching function of production line (customized production line according to customers' products) |
Speed | 500mm/s（displacement speed）1-12ml/s（Single pump glue rate） |
Accuracy | ±0.03mm （repeatability）±2%（potting）±2%（mixing） |
Glue discharge | Automatic origin/fixed point glue discharge |
safety | Front door/safety grating |
Program memory | 99pcs |
Input air pressure | 0.5MPa—0.7MPa |
Viscosity | 50cps~Paste |
Operation mode | Manual /Automatic |
Ratio | PLC/ plunger pump/gear pump/screw pump |
Flow | Digital input |
Teaching mode | Teaching programming |

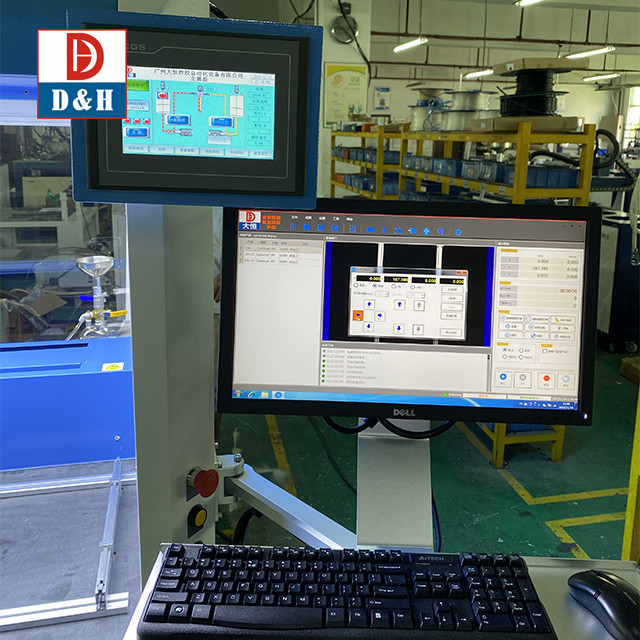

automatic control system | PC、Touch screen (realize program programming, modification, storage, etc |
Out-glue control system | AB glue suction valve, realize AB glue independent operation |
Mixing mode | Dynamic and static optional, instant mixing, convenient cleaning |

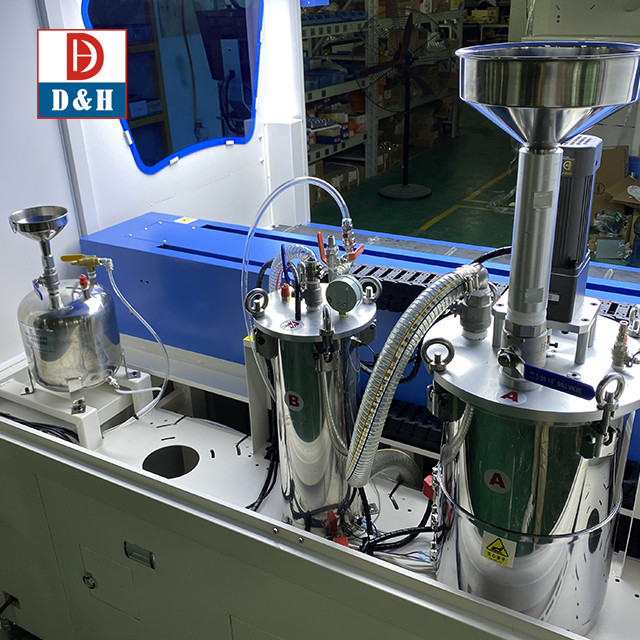

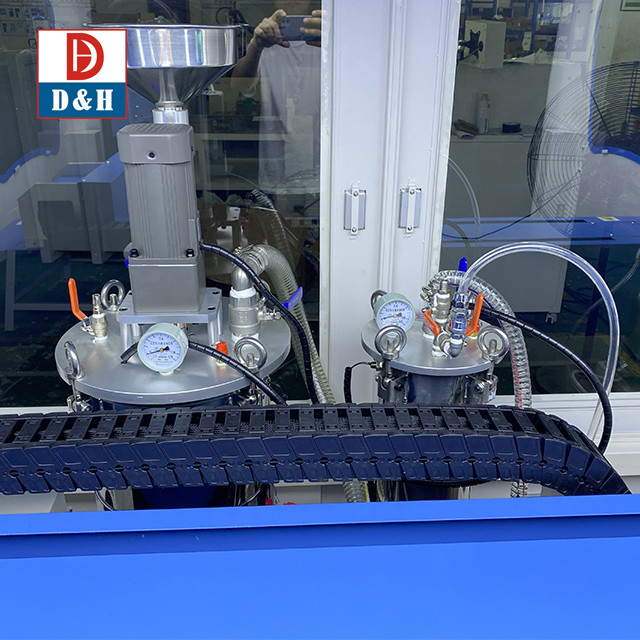

Tank | Stainless Steel（40L）、（25L）、（10L）optional |
Power supply | 220V/50Hz/1.5kW（without heater） |
Dimension | 1900mm×1650 mm×2100mm |
Line body height | 850-950（Can be customized） |
Line body width | Max 550mm(Vision 400mm)（can be customized） |
The conveyor line body | Belt/double chain / roller |
Line body load | As per production |
Positioning | clamping position |
Blocking cylinder | 3 pcs (default) |
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
SIMILAR PRODUCTS
FAQ
Question that will help to make a right dispensing solution .
1. Glue data-sheet . (e.g. single or two components, brand , model , viscosity , single component , dual component )
2. Each dispensing volume , how many gram for each product .
3. The sizes of potting area
4. Capacity (Hourly , daily ?)
5. What kind of your product ?
6. What type of machine you prefer to use ?(desktop , stand-alone , inline machine or XYZ robot)
1. Glue data-sheet . (e.g. single or two components, brand , model , viscosity , single component , dual component )
2. Each dispensing volume , how many gram for each product .
3. The sizes of potting area
4. Capacity (Hourly , daily ?)
5. What kind of your product ?
6. What type of machine you prefer to use ?(desktop , stand-alone , inline machine or XYZ robot)
