Metering & mixing & dispensing two-component adhesive like PU, epoxy , silicone into driver cases, display module, transformers,ignition coils, motor, power supply and other electronic components which need to be dispensed materials , other products where want to apply fluids and so on….
All Products
Electric Driven CCD AB Component Glue Dispensing Metering Machine for Silicone Potting
| Place of Origin | China |
|---|---|
| Brand Name | Daheng |
| Price | $20,000.00/pieces 1-1 pieces |
| Packaging Details | According to the customer requirement |
| Supply Ability | 50 Piece/Pieces per Month MOQ=1PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Gluing Machine | Applicable Industries | Manufacturing Plant |
|---|---|---|---|
| Showroom Location | Turkey, Italy, Viet Nam, Russia, Malaysia | Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided | Warranty Of Core Components | 1 Year |
| Core Components | PLC, Pump | Condition | New |
| Application | Two-component Material Such Like PU, Epoxy , Silicone | Packaging Type | POLYWOOD CASE |
| Packaging Material | Plastic, Wood | Automatic Grade | Automatic |
| Driven Type | Electric | Voltage | 230V,380V ,customized |
| Dimension(L*W*H) | 1928x1650x1851 | Weight | 600 KG |
| Warranty | 1 Year | Key Selling Points | High-accuracy |
| Name | CCD AB Component Glue Dispensing Metering Machine | Working Area | 600x400x100mm |
| Control Mode | PLC | Feeding Way | Vacuum Feeding |
| Tank Capacity | 10L,25L,40L | Marketing Type | Ordinary Product |
| Port | Guangzhou |
Product Description
Product Overview

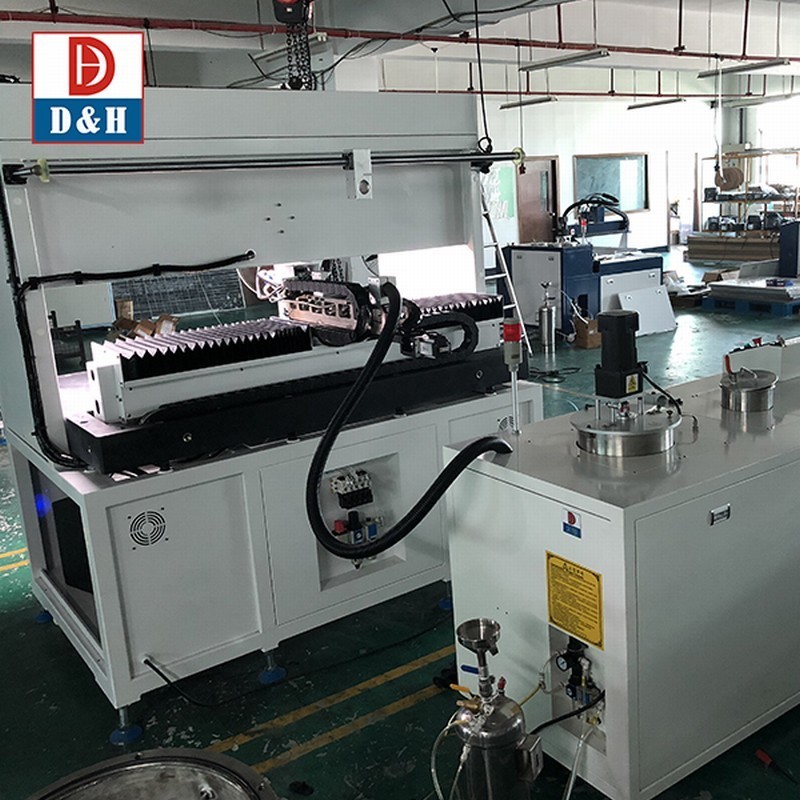

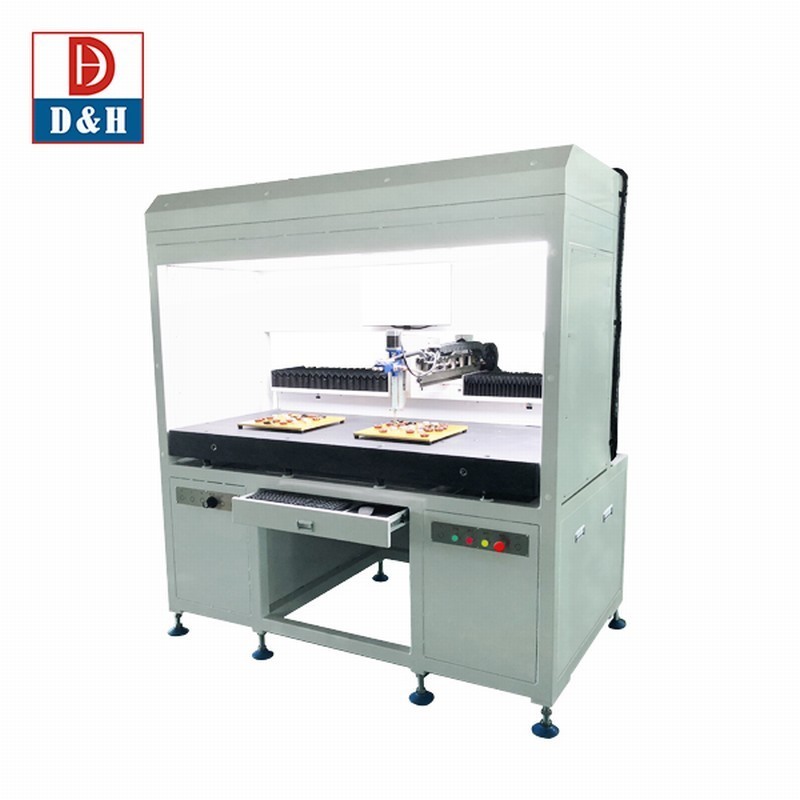

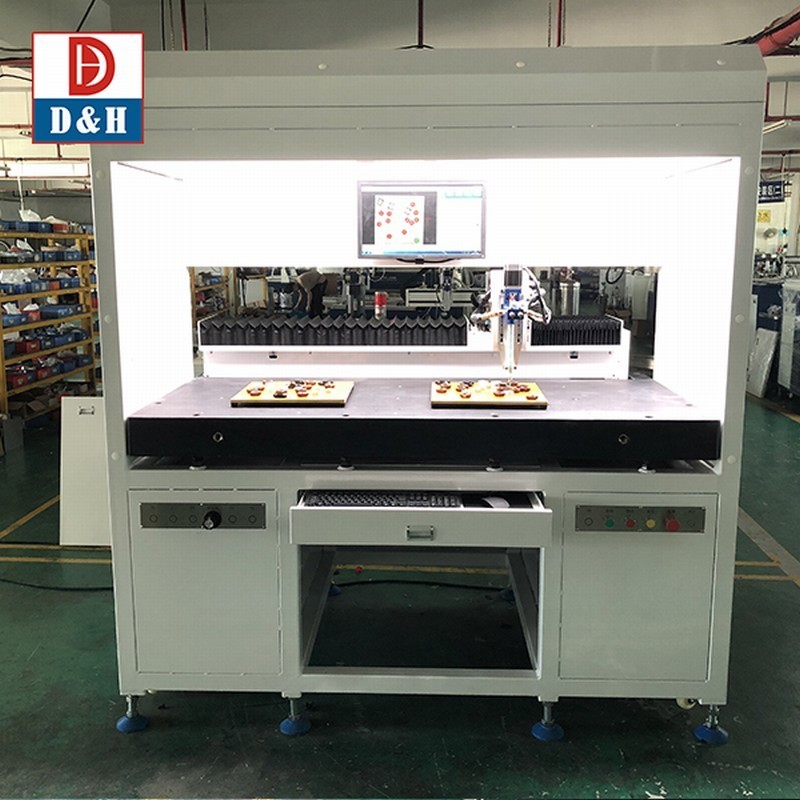

CCD 2-component AB dispensing and metering machine
PGV-501 glue potting machines are the fully automatic glue potting machine launched by Daheng automation. This machine is aiming at epoxy resin , polyurethane, silicone and other two-component materials for materials mixing and automatic perfusion.
Machine introduction ：
Ultra - high precision double cylinder plunger pump, glue stable and easy to use. Daheng core patent plunger pump
technology,with unique, innovative, practical, advanced; A new generation of fluid measurement ratio control with high accuracy,variable, uninterrupted and long life is realized.
technology,with unique, innovative, practical, advanced; A new generation of fluid measurement ratio control with high accuracy,variable, uninterrupted and long life is realized.
Successful Project

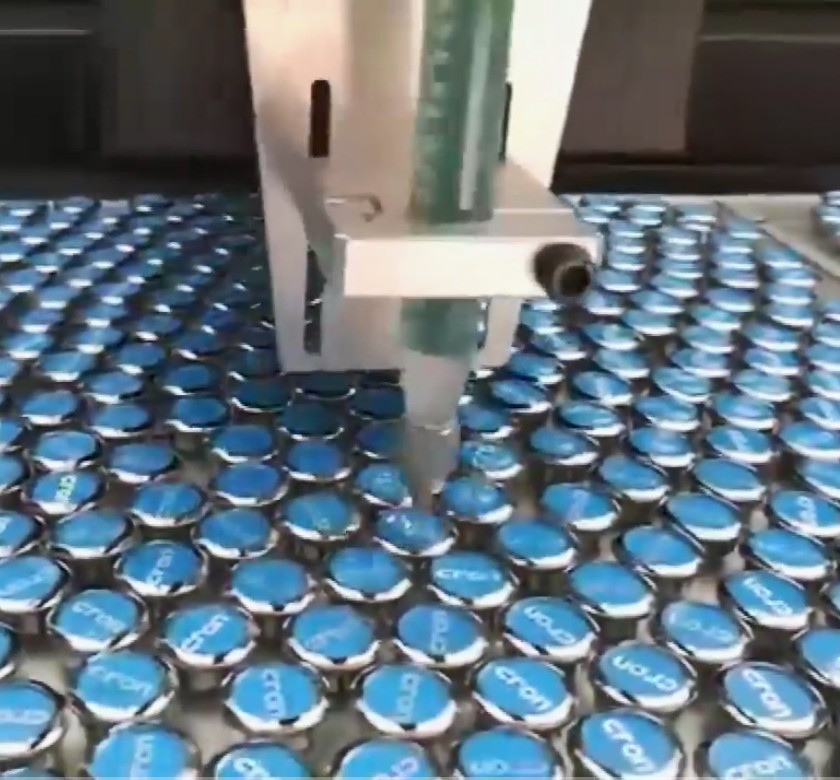

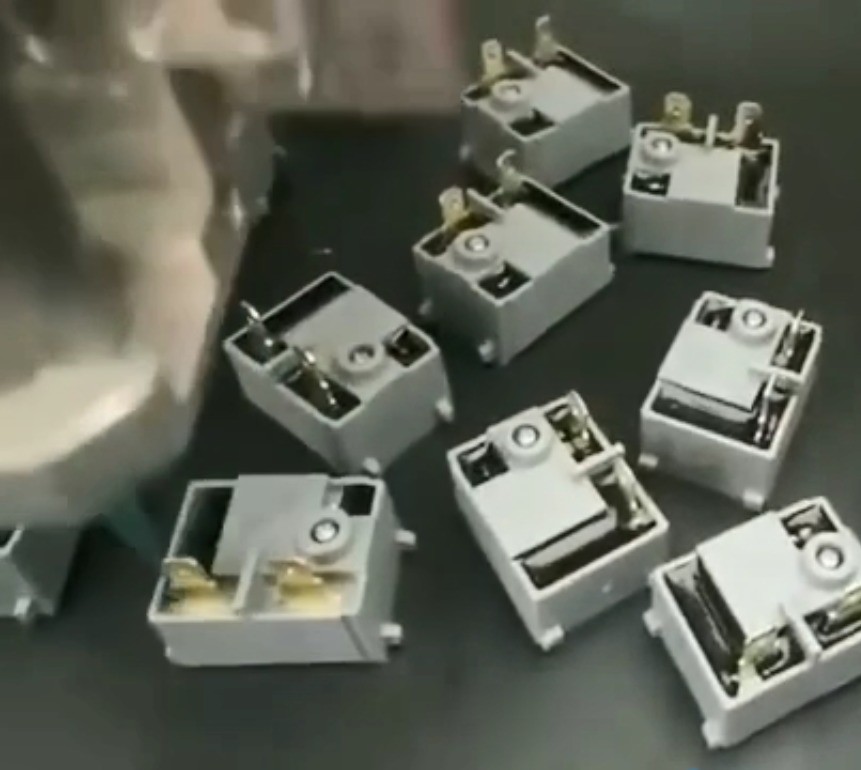

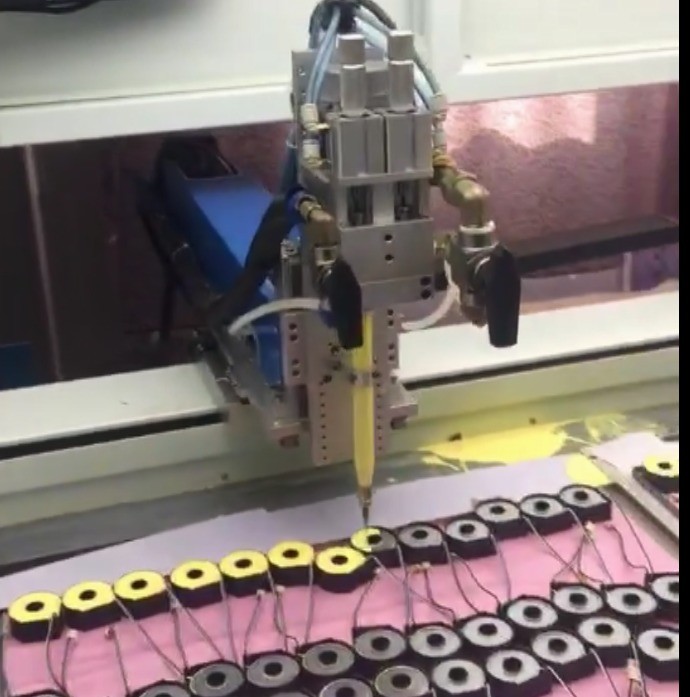

Applications：
Projects in oversea market
Factory Show
Sample customers
Glue mixing ratio | 100:100—100:10 Optional |
Working area | 600（X）*600(Y)*100mm(Z)（effective:400mm（X）） |
Working path | Dot, line , arc , circle |
Positioning method | CCD Visual capture positioning |
Vision system | Visual capture and positioning system software |
Motor | Servo motor (Japan), lead screw + slider (Taiwan brand) |
Production line function | Optional matching function of production line (customized production line according to customers' products) |
Speed | 500mm/s（displacement speed）1-12ml/s（Single pump glue rate） |
Accuracy | ±0.03mm （repeatability）±2%（potting）±2%（mixing） |
Glue discharge | Automatic origin/fixed point glue discharge |
safety | Front door/safety grating |
Program memory | 99pcs |
Input air pressure | 0.5MPa—0.7MPa |
Viscosity | 50cps~Paste |
Operation mode | Manual /Automatic |
Ratio | PLC/ plunger pump/gear pump/screw pump |
Flow | Digital input |
Teaching mode | Teaching programming |
automatic control system | PC、Touch screen (realize program programming, modification, storage, etc |
Out-glue control system | AB glue suction valve, realize AB glue independent operation |
Mixing mode | Dynamic and static optional, instant mixing, convenient cleaning |
Tank | Stainless Steel（40L）、（25L）、（10L）optional |
Power supply | 220V/50Hz/1.5kW（without heater） |
Dimension | 1900mm×1650 mm×2100mm |
Line body height | 850-950（Can be customized） |
Line body width | Max 550mm(Vision 400mm)（can be customized） |
The conveyor line body | Belt/double chain / roller |
Line body load | As per production |
Positioning | clamping position |
Blocking cylinder | 3 pcs (default) |
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
About Company
■ About D&H
D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.
Certifications
■ QUALIFICATION CERTIFICATE
We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing
Sales Network & Customers
Exhibition
Packing & Delivery
■ Standard Wooden Case with Vacuum Package
● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.
● By sea, for large package and quantity;
● Other ways as customer requested.
FAQ
Q：Do you offer oversea service? A：We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service. | ||||||||
Q：How dose your factory do regarding quality control? A：We assure 1 year warranty for the main part,also we offer spare part for back up. Please check with sales engineer in detail. | ||||||||
Q：What are your payment terms? A：Normally, 30% advance by T/T and balance paid off before delivery. | ||||||||
Q：Are you a factory or trading company ? A：We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years. | ||||||||
