Self-Cleaning CCD Visual Two Component Glue Dispensing Potting Metering Machine
| Place of Origin | China |
|---|---|
| Brand Name | Daheng |
| Price | $22,000.00/pieces 1-1 pieces |
| Packaging Details | According to the customer requirement |
| Supply Ability | 50 Piece/Pieces per Month MOQ=1PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Gluing Machine | Applicable Industries | Manufacturing Plant |
|---|---|---|---|
| Showroom Location | Turkey, Italy, Viet Nam, Russia, Malaysia | Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided | Warranty Of Core Components | 1 Year |
| Core Components | PLC, Pump | Condition | New |
| Application | Two-component Material Such Like PU, Epoxy , Silicone | Packaging Type | POLYWOOD CASE |
| Packaging Material | Plastic, Wood | Automatic Grade | Automatic |
| Driven Type | Electric | Voltage | 230V,380V ,customized |
| Dimension(L*W*H) | 1928x1650x1851 | Weight | 600 KG |
| Warranty | 1 Year | Key Selling Points | High-accuracy |
| Name | CCD Two Component Glue Potting Metering Machine | Working Area | 3000x400x100mm |
| Functions | Heat,stir , Vacuum , Self-clean | Tank Capacity | 10L,25L , 40L Optional |
| Feeding System | Vacuum Feeding Or Diaphragm Pump | Controlled Mode | PLC And Computer System |
| Speed | 0-300mm/s | Camera | High Accuracy |
| Moving System | XYZ Platform | Applied Material | PU , EPOXY , SILICONE |
| Marketing Type | Ordinary Product | Port | Guangzhou |
Product Description
Product Overview

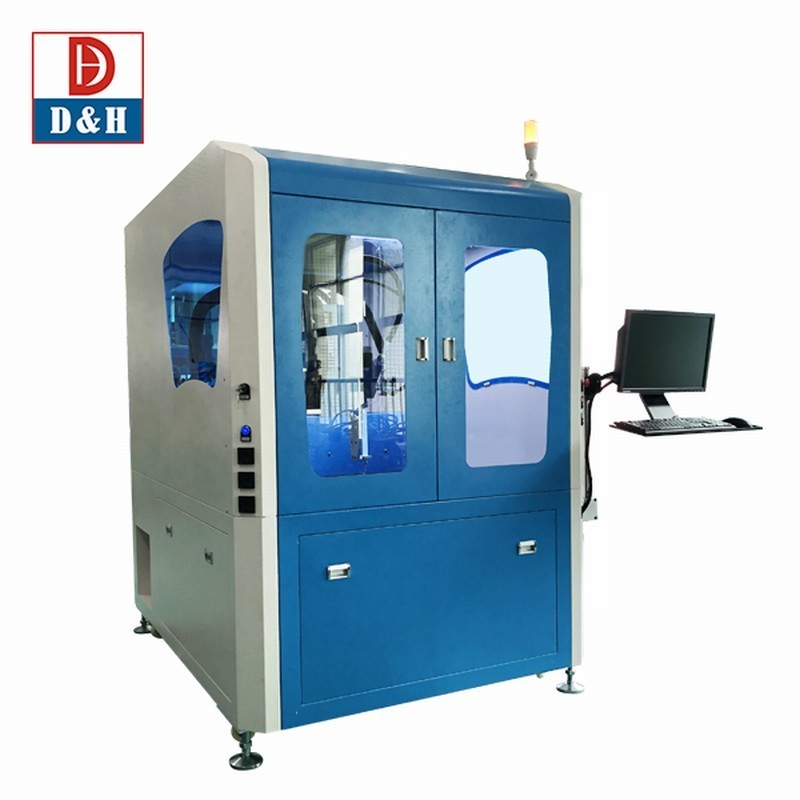

CCD visual two Component glue dispensing potting metering machine
PGV-501 glue potting machines are the fully automatic glue potting machine launched by Daheng automation. This machine is aiming at epoxy resin , polyurethane, silicone and other two-component materials for materials mixing and automatic perfusion.
Select a CCD visual two Component glue dispensing potting metering machine
The machine will have two tanks for keeping Liquid A & B separately.
There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the CCD camera and
The machine will have two tanks for keeping Liquid A & B separately.
There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the CCD camera and
programmable data .
Automatic glue mixing machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio by two sets of high precision pumps, supply to a fully mixing design and then dispensing , dosing , dispensing the aimed products .
Automatic glue mixing machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio by two sets of high precision pumps, supply to a fully mixing design and then dispensing , dosing , dispensing the aimed products .
Machine introduction ：
Ultra - high precision double cylinder plunger pump, glue stable and easy to use. Daheng core patent plunger pump
technology,with unique, innovative, practical, advanced; A new generation of fluid measurement ratio control with high accuracy,variable, uninterrupted and long life is realized.
technology,with unique, innovative, practical, advanced; A new generation of fluid measurement ratio control with high accuracy,variable, uninterrupted and long life is realized.
Machine Description
Double component potting system
We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped testing room.
We can handle 1- and 2-component polyurethanes, epoxies,acrylics, silicone, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.
Potting and encapsulation is the process of embedding electronic components & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Encapsulation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.
AB potting machine is composed of Five Systems
1. Automatic material-feeding system
2. High precision pump metering system
3. Dynamic/Static mixing system
4. Three-axis motion system
5. Programming control system.
2. High precision pump metering system
3. Dynamic/Static mixing system
4. Three-axis motion system
5. Programming control system.
AB-component materials flows into the pump through the feeding system (AB tanks) separately by the self-suction force of the metering pump.
Features&Functions
Strong versatility / High production capacity / High precision
* Auto feeding :take use of vacuum pressure to feed materials into A&B tank separately.
* Tank Stirring :A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom . * Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C adjustable.
* Vacuum : A &B tank vacuum for degas the bubble inside material .
* Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.
*Auto cleaning : self-cleaning and fully auto cleaning system assure machine keep in clean without any materials cure inside .
Advantages:
1、Accurated metering and even mixing helps to avoid the waste of material.
2、Dispensing volume and positioning keep machine work consistent and fast.
3、Good universality
4、Easy to program and operate.
5、Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device and other functional device.
2、Dispensing volume and positioning keep machine work consistent and fast.
3、Good universality
4、Easy to program and operate.
5、Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device and other functional device.
Tech Data
ITEM | Parameter |
Mixing ratio | 1:1--10:1 adjustable |
Working range | 600*400*100mm |
Displacement speed | 250mm/s（speed） |
Out-glue speed | 1-24g/s（base on the glue ratio） |
Accuracy | ±2%（output volume）±2%（mixing） |
tolerance | ≤0.2mm |
Flow control | Digital input |
Program memory | 99pcs |
Motion trail | Dot , line ,curve ,circle |
Automatic controlling system | Touch screen (to achieve program programming, modification, storage and so on |
Out-glue control system | AB glue back suction valve, achieve AB glue independent operation |
programmatically | Tech programming |
Mixing method | dynamic mixing |
Power supply | 220V/50Hz/1500W |
Air source | 0.5-0.8Mpa |
Viscosity range | 50-20000cps |
Outer dimension | 1500L*1200W*1600H mm |
A tank | 25L stainless tank（optional） |
B tank | 10L stainless tank（optional） |
Others | AB tank 、A pump、AB pipeline heating function |
Application

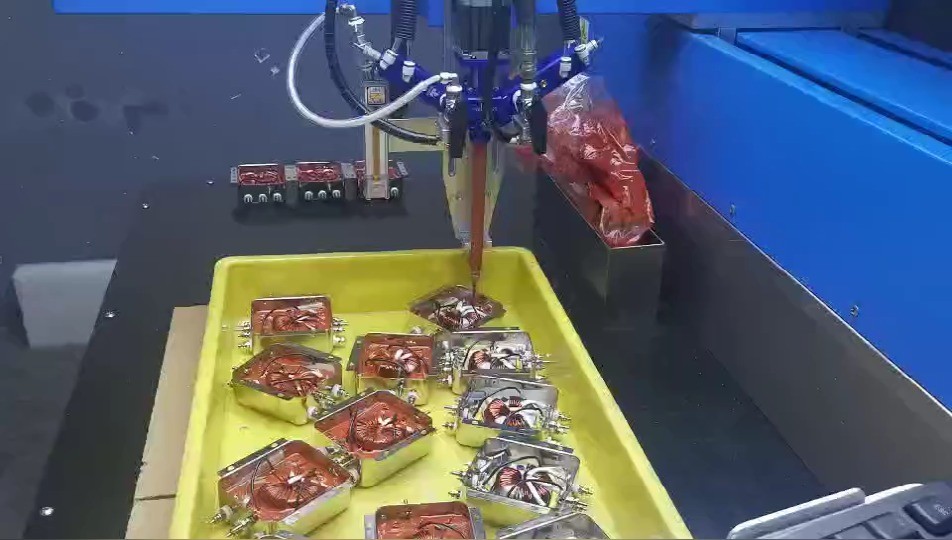

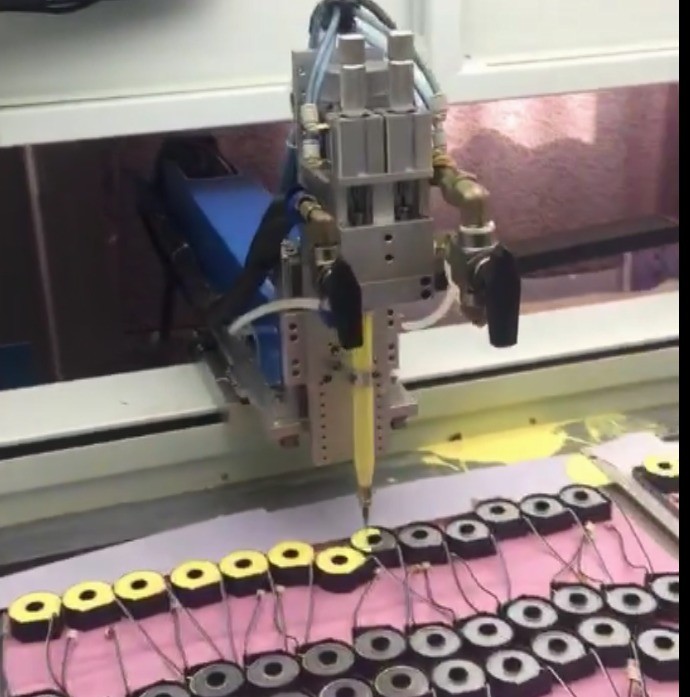

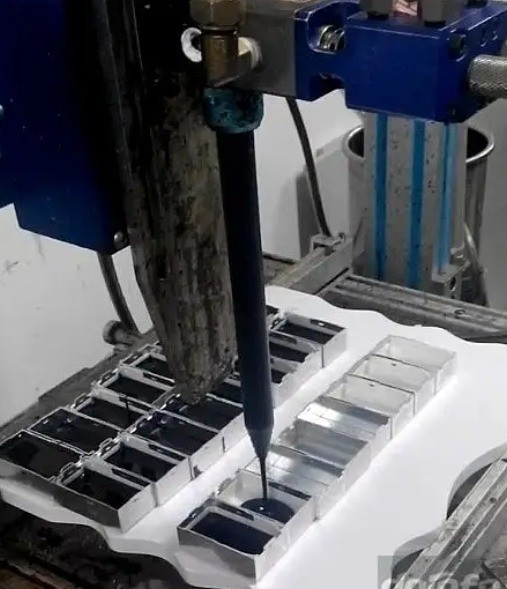

1. Potting&Encapsulation &Casting: electronics components , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast , motor ,junction box ，switches， art mold ,aviation parts, aerospace parts and so on.

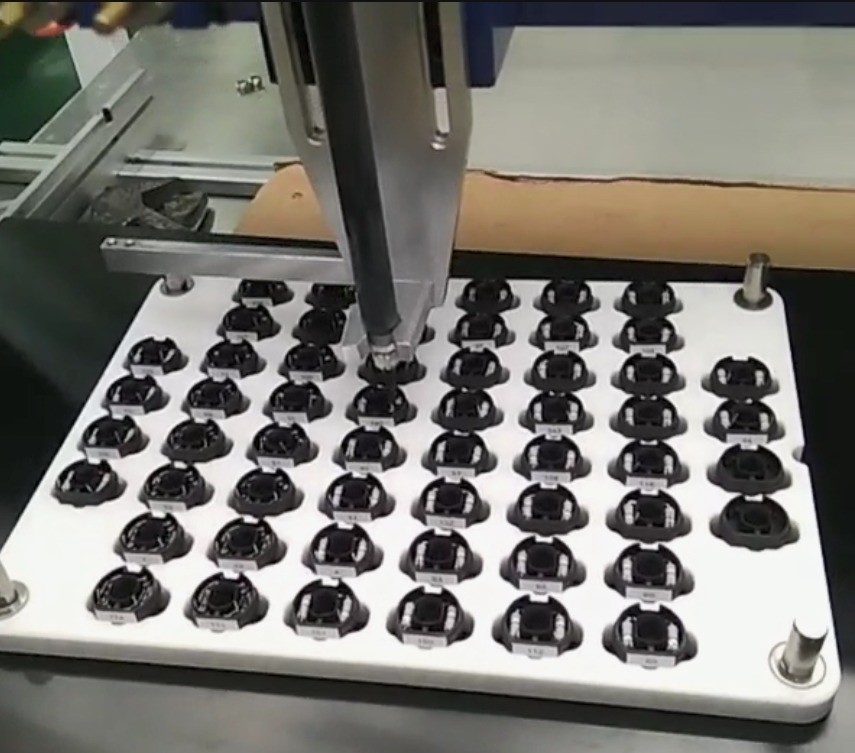

2. Dispensing&Dosing: LED strip , led lamp , led bulb , aluminum,led screen , display module / medical parts，medical liquid filling and so on ...
3. Bonding&doming: LCD screen ,LOCA bonding，ABS plastic / different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics ect .
2. Dispensing&Dosing: LED strip , led lamp , led bulb , aluminum,led screen , display module / medical parts，medical liquid filling and so on ...
3. Bonding&doming: LCD screen ,LOCA bonding，ABS plastic / different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics ect .
Main Applications in electronics appliances
Transformer , capacitance , power module , regulating plate ,protection module , generator , pressurepackage , solid relay ,fault indicator , Sensors , junction box , clutch , wave filter , water meter , battery cover , rectifier etc. ...
Applicable Materials
1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials.
Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, dual-component compound material UV materials and so on .
Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, dual-component compound material UV materials and so on .
