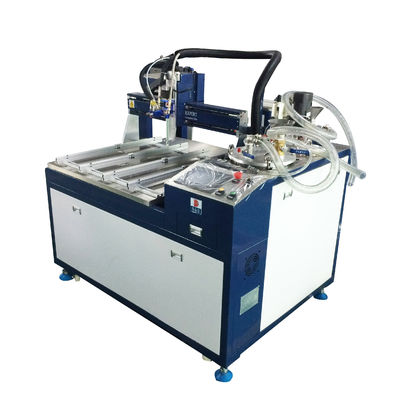

L1640mm*W750*H1900 Epoxy Glue Dispenser with Gear Pump or D H Patented Plunger Pump

cnc a b epoxy glue dispenser

Whatsapp, wechat and Tel are available to contact me for quick response
Name:Mr. Jason Huang
Tel/Wechat/Whatsapp: +86 15626250060

cnc a b epoxy glue dispenser

PGB-700 system accurately meters, mixes and dispenses two-component medium to low-viscosity materials for potting, gasketing, sealing, encapsulation and syringe filling. For variable ratio dispensing, the system handles ratios from 1:1 to 10:1.
The system is composed of material tank, metering pump, metering motor, material pipe, two component valve, motor for dynamic stirring, mixing tube and 3 axis robotic arms. Two kinds of glue are separated before they mix in mixing tube, so the glue will not cure in devices. Glue valve is with vacuum function to keep thin fluid from dripping. Other optional functions include:
Tank stirring function;
Tank defoaming function;
Thermostat heating function on Tank, pipe, and pump;

Applications

1. Electrical Products: Electronic parts, integrated circuits, circuit board solder paste, fixed and dust and moisture protection, LCD liquid crystal screen, speakers, headphone, audio, LED, optical lens, SMD transformers, relays.
2. Communication Products: Keypad, mobile phone casing bonding, radio, telephone, Computers, MP4, electronic toys, chassis bonding, switches, connectors, plug cable.

Machine features:

1. Automatic metering and mixing, touch screen PLC control system, English operation interface allow easy to set parameters;

2. Big LCD screen displays various processing data;

3. Easy programming of dots, stripes, arcs, compound arcs and patterns on different planes;

4. Gluing speed and timing can be set;

5. CAD file can be imported and turned to be dispensing patterns, and downloaded via USB; (optional function)

6. Mixing ratio 1:1-1:10 and gluing volume can be set and adjusted as per actual need. Dynamic mixing ensure two component glue to be mixed to a fully homogeneous consistency;

7. Metering, mixing and gluing simultaneously;

8. Two tanks keep A glue and B glue separately;

9. Liquid level sensor, alarm function;

10. Tank stirring and vacuum defoaming function optional;

11. Auto cleaning; The cleaning mode can be manually or automatically, manual mode just remove the mixing tube then soak into cleaning agent, after 10 min take out and clean with compressed air, Automatic mode only need to operate the cleaning switch on touch screen within 1 minute to complete;

12. Glue tank/metering pump/glue pipe heating function (optional);

13. Vacuum control keeps thin fluids from dripping;

14. Unique control system which will not influenced by air pressure factor, ensures optimal dispensing performance;

15. XYZ axis can be programmed to dispense glue along desired patterns.

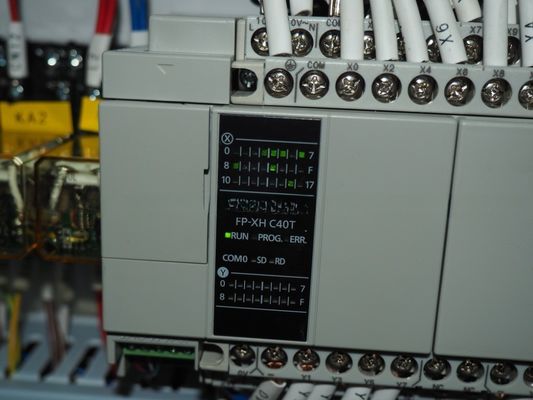

Panasonic PLC.

High precision Panasonic PLC ensure high stably performance and precisely AB glue output quantity

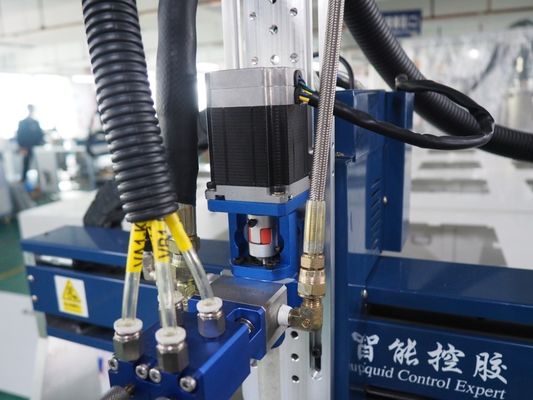

Dynamic mixing.

High speed mixing motor, mixing glue well. According to glue features, static mixing is available

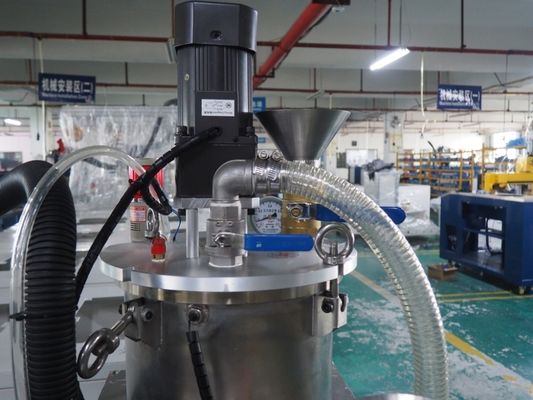

Vacuum tank with stirring motor.

With defoaming function and mixing motor, no bubbles in glue, pre-heating is available for selection

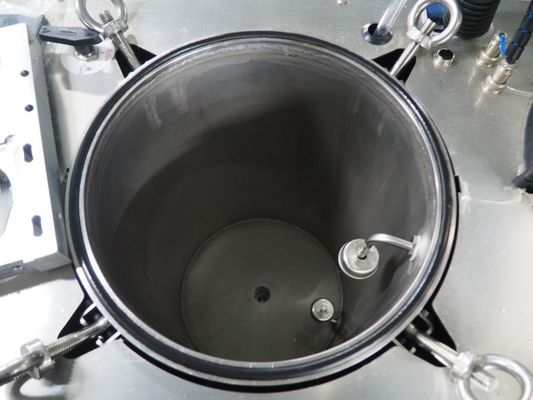

Tank with liquid sensor.

Both AB tank with high level and low level liquid sensor, when the glue is not enough or the machine is abnormal, the machine will show the warning message. Humanized engineering design, avoid the serious damages. There's a professional sealing ring to make sure the glue tank in vacuum status. To avoid the glue to be crystallization or curved.

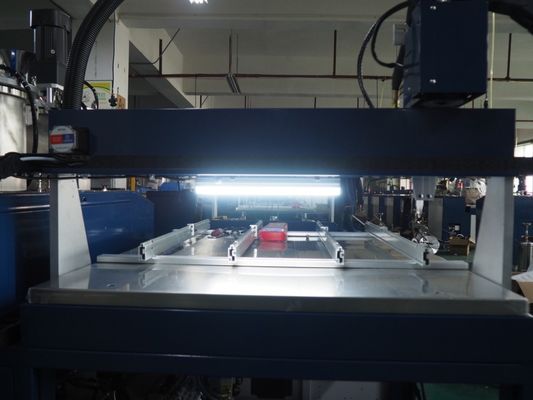

working area with light source.

For providing better working environment, we install LED Tube on Machine
