Customizable LED Strip Light Auto Glue Dispenser Machine for L6000xw1200xh1500mm Size
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Daheng |
| Certification | CE, SGS |
| Model Number | PG-5000 |
| Price | $1.00 - $2.00/sets |
| Packaging Details | Wooden carton :2040*1000*1150mm <br>2040*1000*1450mm <br>2040*1000*950mm |
| Supply Ability | 600 Set/Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Gluing Machine | Condition | New |
|---|---|---|---|
| Application | LED Lighting, Electric Component | Packaging Type | Cartons |
| Packaging Material | Wood | Automatic Grade | Automatic |
| Driven Type | Electric | Voltage | AC220V Or AC 380V |
| Power | 900W-1.5KW | Dimension(L*W*H) | L6000xw1200xh1500mm |
| Weight | 810kgs, 960kg | After-sales Service Provided | Engineers Available To Service Machinery Overseas |
| Definition | LED Strip Light Auto Glue Machine Dispenser | Xyz Working Area | 5000X480X30mm |
| Size | L6000xw1200xh1500mm | Ratio | From 1:1 To 10:1 |
| Stiring Method | Static Or Dynamic | Pump | Daheng Patent Plunger Pump |
| Out-Gluing Rate | 5-66g/5s | Mixing Precision | +/-1% |
| Container Volume | A:25L B:10L | Port | Guangzhou, Shenzhen |
Product Description

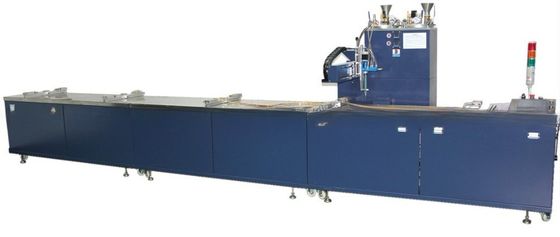

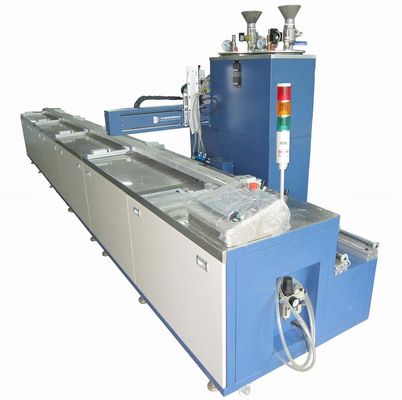

LED Strip Light Auto Glue Machine Dispenser
I. Tech Data
Glues Ratio: From 1: 1 to 10: 1
Stirring mode: Static(standard)/dynamic(optional)
XYZ working area: 5000mm*480mm*30mm
Data Memory: 100
Program Method: Teaching and show-how method
Size: 6000× 1200 X1300mm
Power Input: AC220
II. Features
1. An automatic system of simultaneous metering, mixing and dispensing
2. Glues ratio and out-gluing quantity can be adjusted easily and freely
3. Precise mixing helps to avoid possible glue waste in working
4. Easy to operate and progra
5. Easy to disassembly and install
6. Vacuum and automatic cleaning
7. Wide applications
8. Suitable for the glue injecting of LED strip light under 5m length
9. The configuration could be changed according to customers 'demand
III. Industrial Application

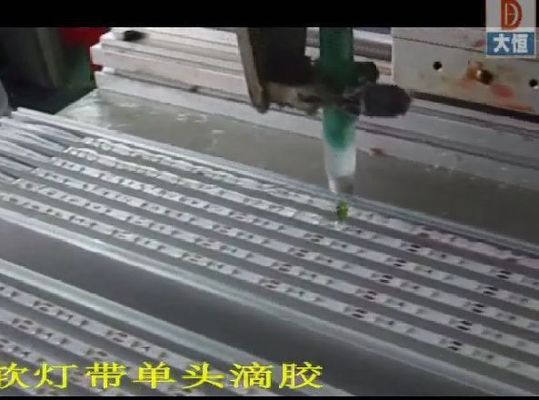

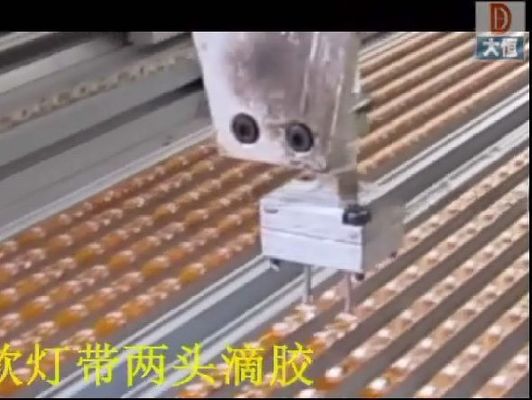

Glue dispensing for surface, U-shaped tube, and various LED bar & stripe lights
| Model & Type | PG-5000 LED Strip Light Auto Glue Machine Dispenser |
| Certificate | CE, SGS |
| Dimension | 6000x1200x1500mm |
| N.W. | 950kg |
| XYZ Working Area | 480x5000x30mm |
| Flow Speed | 0-66g/5s, or customized |
| Moving Speed | 0-300mm per second |
| Glue & Ratio | 1:1 to 10:1, Epoxy, Silicone, PU, UV |
| Repeatability | +/-0.02g |
| Accuracy | +/- 1% |
| Power | AC220V or AC 380V |
| Total Power Consume | 1kw |
| Additional Functions | Heating, Vacuum, Self-refilling, Self-cleaning |
| Application | LED flexible strip |
LED Strip Light Auto Glue Machine Dispenser
