Marble Mosaic Mesh Glue Dispenser with Versatile Ratio L1500xw1200xh1500mm 1 1 to 10 1

  • Marble Mosaic Mesh Glue Dispenser with Versatile Ratio L1500xw1200xh1500mm 1 1 to 10 1
  • Marble Mosaic Mesh Glue Dispenser with Versatile Ratio L1500xw1200xh1500mm 1 1 to 10 1
  • Marble Mosaic Mesh Glue Dispenser with Versatile Ratio L1500xw1200xh1500mm 1 1 to 10 1
  • Marble Mosaic Mesh Glue Dispenser with Versatile Ratio L1500xw1200xh1500mm 1 1 to 10 1
  • Marble Mosaic Mesh Glue Dispenser with Versatile Ratio L1500xw1200xh1500mm 1 1 to 10 1
  • Marble Mosaic Mesh Glue Dispenser with Versatile Ratio L1500xw1200xh1500mm 1 1 to 10 1
Place of Origin Guangdong, China
Brand Name DAHENG
Certification CE, SGS
Price $8,000.00 - $20,000.00/sets
Packaging Details Wooden carton <br>glue dispensing machine for marble mosaics to mesh
Supply Ability 600 Set/Sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Applicable Industries Building Material Shops, Restaurant, Construction Works  Condition New
Voltage 220v Power 1KW
Weight 260KG, 260kg Dimension(L*W*H) L1500xw1200xh1500mm
Warranty 1 Year After-sales Service Provided Engineers Available To Service Machinery Overseas
Name Glue Dispensing Machine For Marble Mosaics To Mesh Xyz Working Area 700 X 700 X 30mm
Size L1500xw1200xh1500mm Ratio From 1:1 To 10:1
Stiring Method Static Or Dynamic Pump Daheng Patent Plunger Pump
Out-Gluing Rate 5-66g/5s Mixing Precision +/-1%
Container Volume A:25L B:10L Port Guangzhou, Shenzhen
Leave a Message
Product Description

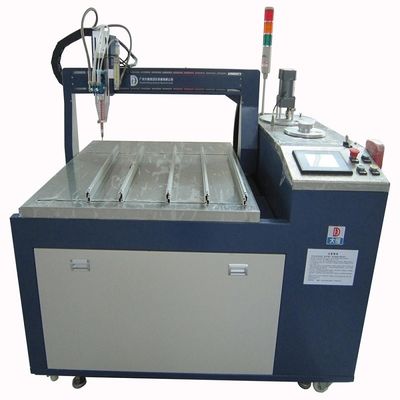

glue dispensing machine for  marble mosaics to mesh

Features and Benefits:
1, A system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid possible waste of glue.
3, Shot size and positioning keep consistent, fast.
4, Good universality
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing backflow device and other functional device.

Application:
Industry: Wall sticker , Wall tile , Ceramix tile sticker, wooden panel, marble panel, etc, some panel need glue to protect and beautify the surface. Ceramic tile Automatic Glue Spraying Machine



 glue dispensing machine for marble mosaics to mesh



XYZ Working area

700mm×700mm×80 mm

Working speed

250mm/s

    Precision

+/-0.1mm

Ratio

10:1or 1:1 are workable

Glue-out speed

1g/s --15g/s

Mixing precision

+/-2%

Program memory

99pcs

Glue viscosity

300cps~50000cps

Operation mode

Manual / automatic / third party single

Controlling system

PLC/double cylinder plunger pump

Flow control

 Digital input

Program

teaching programming

Automatic controlling system

Touch screen / hand switch

Mixing method

Dynamic mixing (including self-cleaning function)

Tanks

Stainless tank 10L ,25L ,40L optional

Liquid level sensor (low liquid level / high liquid level and limiting liquid level )

Tank stirring

Constant temperature heating (A tank ;A pump and A pipes)

Glue  filter

Power

220V/50Hz/3500W

Input air pressure

0.5MPa—0.7MPa

Dimension

1500mm×1200mm ×1500mm

Appearance material

cold-roll steel plate / Industrial aluminium/stainless / metal plate
