260KG Weight Vacuum Chamber Glue Potting Machine for 1600mm*1200mm*1500mm Size
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Daheng |
| Model Number | VGB-450Q |
| Price | $10,000.00 - $15,000.00/sets |
| Packaging Details | Wooden carton <br>Vacuum chamber glue potting machine |
| Supply Ability | 600 Set/Sets per Month Semi-automatic Glue Dispenser |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight (KG) | 260 | Showroom Location | Turkey, Italy, Viet Nam, Indonesia, Russia, Malaysia |
|---|---|---|---|
| Video Outgoing-inspection | Provided | Machinery Test Report | Provided |
| Marketing Type | Ordinary Product | Warranty Of Core Components | 1 Year |
| Core Components | PLC, Pump | Warranty | 1 Year |
| Definition | Vacuum Chamber Glue Potting Machine | XYZ Working Area | 1200x1200mm Customized |
| Size | 1600mm*1200mm*1500mm | Weight | 800kg |
| Mixing Ratio | From 1:1 To 10:1(Adjustable) | Stiring Method | Static Or Dynamic |
| Pump | Daheng Patent Plunger Pump | Out-Gluing Rate | 5-66g/5s |
| Mixing Precision | +/-1% | Container Volume | A:25L B:10L |
| Port | Guangzhou, Shenzhen |
Product Description

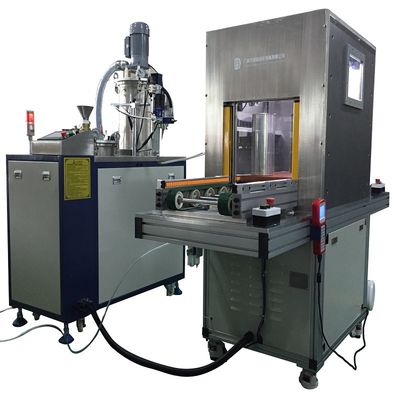

Vacuum chamber glue potting machine
Main Technical Data:
| Model No | VGB-450Q |
| Working Range X/Y/Z(mm) | 1200x1200mm |
| Mixing Ratio | 1:1~10:1(Adjustable) |
| Mixing Method | Static mixing/dynamic mixing |
| Metering Pump | Daheng Plunger Pump |
| Moving Track | Dot/Line/Curve/arc |
| Glue Pouring Speed | 5~66g/5s |
| Matching Accuracy | +/-1% |
| Volume of Container(L) | A25,B10 |
| Dimensions(mm) | 1600mm*1200mm*1500mm |
| Weight(KG) | 310KG |
VGB-600 Standalone vacuum potting machine
Features
Oversized vacuum box
Suitable for large, heavy duty products
Vacuum pressure adjustable
Vacuum potting machine with production line
Features
online potting under vacuum environment.
Customizable to any itinerary
Production line design, easy to expand
Specification
Item: VGB-600
Dimension:2050*1250*2500mm
Item: VGB-450Q
Dimension:3200*800*1700mm
AB ratio:100:100-100:10 adjustable
Movment Track:Dot/Line/Arc/Circle
Speed:300mm/s(Movement speed) 1-12ml/s(gluing out speed)
Accuracy:±0.01mm(Repeatability) ±2%(potting) ±2%(mixing)
Program:99/∞
Input pressure:0.5MPa-0.7MPa
Viscosity:50cps-20000cps(Glue can be heated to decrease viscosity)
Operation:Manual/Automatic/ tooling plate come in and out atomatically
Manual/Automatic/ Automatic conveyor line
Meter Pump:Gear pump/Screw pump/Double cylinder plunger pump
Flow Control: Digital Input
Programming method: teaching programming
Automated control system: PLC / touch screen (programming, modification, storage, etc.)
Glue control system: AB glue valve +Vacuum breaker Valve
Mixed mode: dynamic static optional, instant mixing, easy to clean
Tank:stainless steel(60L)(50L)(40L),(25L),(10L)optional
Power supply: 220V/50Hz/1200W ( The power consumption without heater )
Vacuum degree: 1mbar
Features
Stainless steel table
Suitable for multiple scenes
Free to control, easy to learn
AB ratio:100:100-100:10 adjustable
Movment Track:Dot/Line/Arc/Circle
Speed:500mm/s(Movement speed) 1-12ml/s(gluing out speed)
Accuracy: ±2%(potting) ±2%(mixing)
Input pressure:0.5MPa-0.7MPa
Viscosity:50cps-30000cps(Viscosity can be down via heating glue)
Operation:Manual/Automatic
Meter Pump:Gear pump/Screw pump/Double cylinder plunger pump
Flow Control: Digital Input
Programming method: teaching programming
Automated control system: PLC / touch screen (programming, modification, storage, etc.)
Glue control system: AB glue suction valve to achieve independent operation of AB glue
Mixed mode: dynamic static optional, instant mixing, easy to clean
Tank:stainless steel tank (60L),(50L),(40L),(25L),(10L)optional
Power supply: 220V/50Hz/1200W ( Test under heating unction is not power on)
Features and Benefits:
1. Sealing & Vacuum System
2. An automatic systerm of metering and mixing.
3. Self-refilling
4. Self-cleaning
5. Easy to change the flow speed, ratio on the touch screen.
6. Easy to operate, assembly and disassembly.
7. Our Patent double cylinder plunger pump; Specially designed for high precision, wearability and long life time

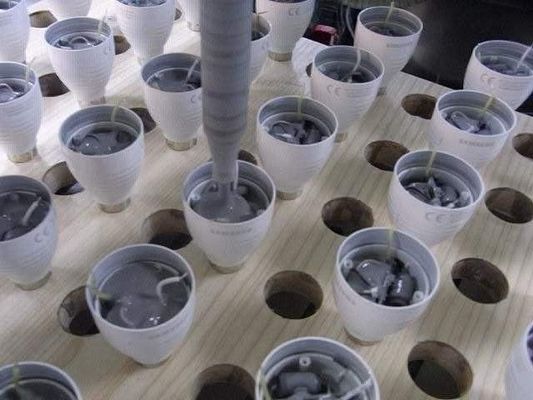

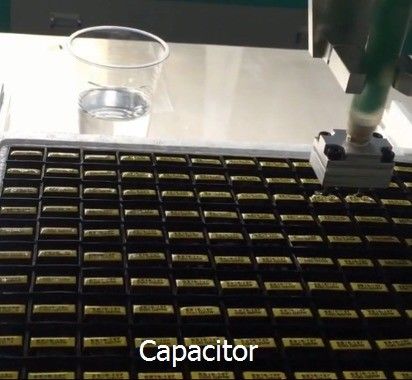

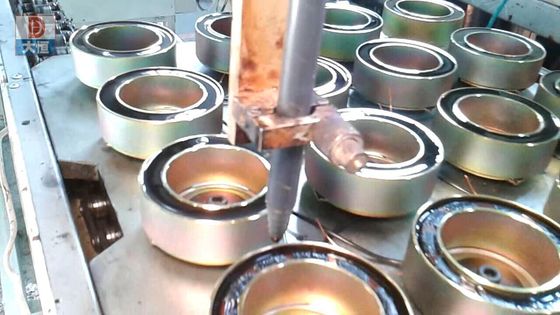

Application:
can be applied in different filter such like air filter , water filter , false vase , electronical & electroniccs where glue dispensing, mixing is demanded for sealing, filling, gluing such as: Power supply, driver, transformer, controller, motor, circuit, PVB board and any products which need to potting glue inside .
Workshop:
Parts of our Oversea Clients:
Certification:
WHO WE ARE?
Guangzhou DH, founded in 2006, is one of the earliest and leading manufactures for gluing machines in China.
We began with manual and simple gluing machine;, developed the first fully automatic gluing machine for LED display in 2010; We are headed in Guangzhou, and branched in Shenzhen, Zhongshan, Shanghai, Xiamen, Beijing;
have exported to Russia,Turkey,Ukraine,India,Singapore,Netherland,Thailand,Malaysia.Dubai etc.
