AC220V/AC380V Voltage Automatic Glue Dispensing Machine for Adhesive Application
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Daheng |
| Price | $10,500.00/sets |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Gluing Machine | Applicable Industries | Manufacturing Plant |
|---|---|---|---|
| Showroom Location | Turkey, Italy, Viet Nam, Brazil, Indonesia, India, Russia, Malaysia, Australia | Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided | Warranty Of Core Components | 1 Year |
| Core Components | PLC, Pump | Condition | New |
| Application | Led Soft Strip | Packaging Type | Cartons |
| Packaging Material | Wood | Automatic Grade | Automatic |
| Driven Type | Electric | Voltage | AC220V Or AC 380V |
| Dimension(L*W*H) | 1000x800x1500mm | Weight | 180 KG, 180kg |
| Warranty | 1 Year | Key Selling Points | High Accuracy |
| Definition | Adhesive Application Glue Dispensing Machine | XYZ Working Area | 480*480*80mm |
| Size | L1000xW800xH1500mm | Mixing Ratio | From 1:1 To 10:1(Adjustable) |
| Stiring Method | Static Or Dynamic | Pump | Daheng Patent Plunger Pump |
| Out-Gluing Rate | 5-66g/5s(Adjustable) | Epoxy Glue Dispenser | Glue Dispenser Machine |
Product Description
adhesive application glue dispensing machine
ue dispens
er /automatic glue dispenser /automatic glue dispensing machine
Main Technical Data:

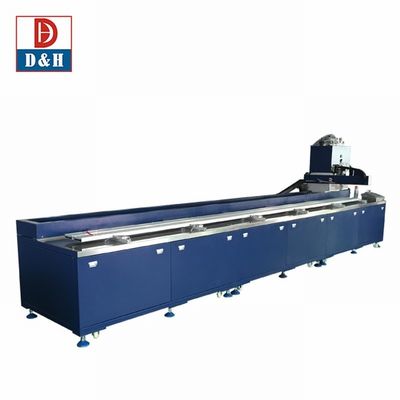

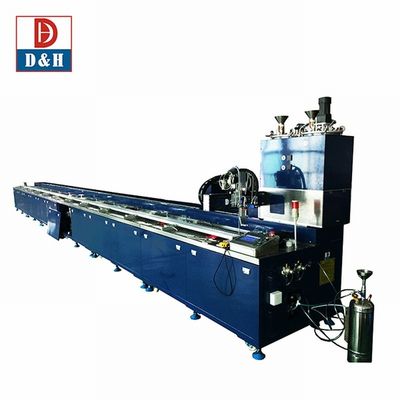

| Model & Type | PG-200 automatic glue dispensing machine |
| Certificate | CE, SGS |
| Dimension | 6000x1200x1500mm |
| N.W. | 960kg |
| XYZ Working Area | 400x5000x30mm |
| Flow Speed | 0-50g/5s, or customized |
| Moving Speed | 0-300mm per second |
| Glue & Ratio | 1:1 to 10:1, Epoxy, Silicone, PU |
| Repeatability | +/-0.02mm |
| Accuracy | +/- 1% |
| Power | AC220V or AC 380V |
| Total Power Consume | 1000W |
| Additional Functions | Heating, Vacuum, Self-refilling, Self-cleaning |
| Application | All kinds of led soft strips |
Features and Benefits:
1. An automatic system of simultaneous metering, mixing and dispensing
2. Glues ratio and out-gluing quantity can be adjusted easily and freely
3. Precise mixing helps to avoid possible glue waste in working
4. Easy to operate and progra
5. Easy to disassembly and install
6. Vacuum and automatic cleaning
7. Wide applications
8. Suitable for the glue injecting of LED strip light under 5m length
9. The configuration could be changed according to customers 'demand
Industrial Application
Reverse Sensor, Electronic Circuit Board, Electronic Ballast ,air Filters, LED products ,Electronic components,Crafts,Ads modules, Capacitors, Power supply, Transformer, end cap for filter, solar junction box ,Power module, Ignition coil, Sensor, Photovoltaic module, Photovoltaic inverter. Etc
Certification:

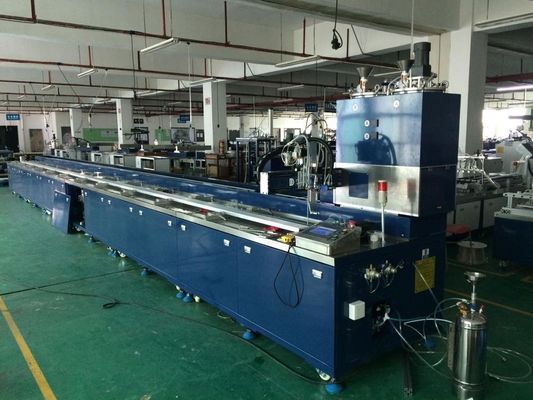

Workshop
Foreign Customers
WHY CHOOSE US?
Guangzhou Daheng founded in 2006, is one of the leading manufactuers for gluing machines in China. We mainly provide fully automatic and semi automatic AB glue dispensing machine for various application.
We are headed in Guangzhou, have branches in Shenzhen, Shanghai, Beijing, Zhongshan, Xiamen; exported regularly to many coutries such as Thailand, USA, German,Malaysia, Singapore,UK Turkey, Dubai, India, Netherland, Ukraine, Russia, etc. Based on years of customers experience, we built up very complete and helpful sales service.
