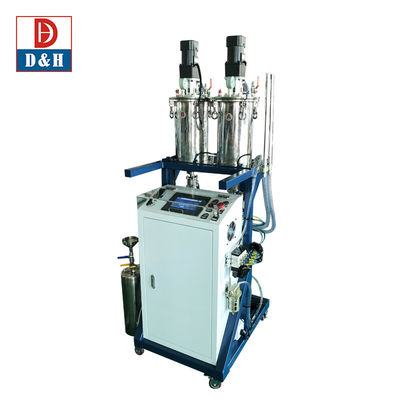

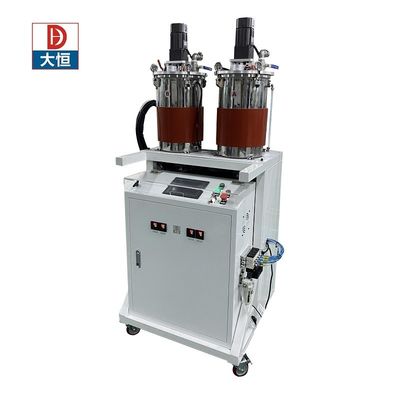

Semi automatic LED Glue Potting Machine for module and soft and hard light strip

  • Semi automatic LED Glue Potting Machine for module and soft and hard light strip
  • Semi automatic LED Glue Potting Machine for module and soft and hard light strip
  • Semi automatic LED Glue Potting Machine for module and soft and hard light strip
  • Semi automatic LED Glue Potting Machine for module and soft and hard light strip
  • Semi automatic LED Glue Potting Machine for module and soft and hard light strip
  • Semi automatic LED Glue Potting Machine for module and soft and hard light strip
Place of Origin Guangdong, China
Brand Name Daheng
Price $13,000.00/pieces 1-1 pieces
Packaging Details According to the customer requirement
Supply Ability 50 Piece/Pieces per Month MOQ=1PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Gluing Machine Applicable Industries Manufacturing Plant
Showroom Location Turkey, Italy, Viet Nam, Indonesia, Russia, Malaysia Video Outgoing-inspection Provided
Machinery Test Report Provided Warranty Of Core Components 1 Year
Core Components PLC, Pump Condition New
Application Chemical, PU , EPOXY, SILICONE Packaging Type Case, Pallets
Packaging Material Wood Automatic Grade Semi Automatic
Driven Type Electric Voltage 230V/380V
Weight 350 KG Warranty 1 Year
Key Selling Points Plunger Pump Name Semi-automatic Industrial Precision Dispenser
Fucntions Heating, Vacuum , Self-clean , Metering,mixing Speed 0.5-12g
Precesion ±2% Pump Type Double Cylinder Plunger Pump ,Gear Pump ,screw Pump
Tank Compacitor 10L,25L,40L Service Provided Online , Onsite
Machine Type Semi Automatic Programming Type PLC
Port Guangzhou
Leave a Message
Product Description
Details Images

Hand held glue applicator PU ab epoxy 10 to 1 high precision manual glue dispenser dispensing machine with glue gun

Double component potting system

We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab.

We can handle 1- and 2-component polyurethanes, epoxies,acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.

Potting and encapsulation is the process of embedding electronic components & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Encapsulation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.
Semi automatic LED Glue Potting Machine for module and soft and hard light strip 0
AB potting machine is composed of Five Systems
1. Automatic material-feeding system
2. High precision pump metering system
3. Dynamic/Static mixing system

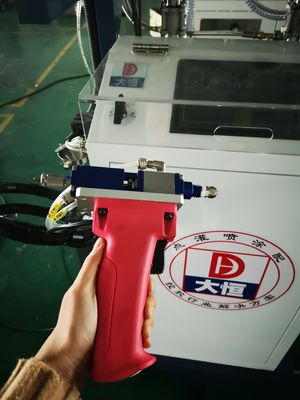

4. Configured with foot-pedal and hand held glue gun for easy apply material
5. Auto cleaning system
AB-component materials flows into the pump through the feeding system (AB tanks) separately by the self-suction force of the metering pump.
Features&Functions

Strong versatility / High production capacity / High precision

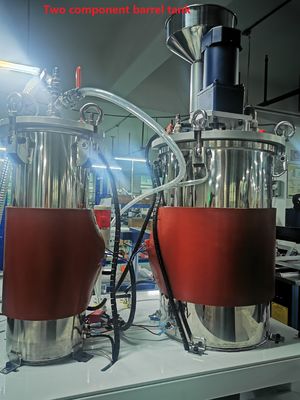

* Auto feeding :take use of vacuum pressure to feed materials into A&B tank separately.
* Tank Stirring :A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom .
* Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C adjustable.
* Vacuum : A &B tank vacuum for degas the bubble inside material .

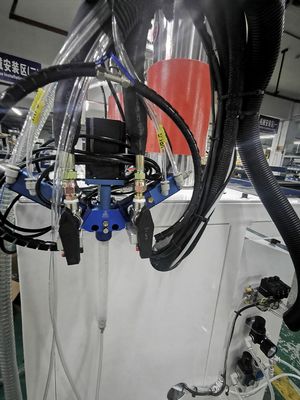

* Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.
* Auto cleaning : self-cleaning and fully auto cleaning system assure machine keep in clean without any materials cure inside .
Advantages:
1、Accurated metering and even mixing helps to avoid the waste of material.
2、Dispensing volume and positioning keep machine work consistent and fast.
3、Good universality
4、Easy to program and operate.
5、Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device and other functional device.
Tech Data
ITEM
Parameter
Mixing ratio
1:1--10:1 adjustable
Displacement speed
250mm/s（speed）
Out-glue speed
1-24g/s（base on the glue ratio）
Accuracy
±2%（output volume）±2%（mixing）
tolerance
≤0.2mm
Flow control
Digital input
Program memory
99pcs
Motion trail
Dot , line ,curve ,circle
Automatic controlling system
Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system
AB glue back suction valve, achieve AB glue independent operation
programmatically
Tech programming
Mixing method
dynamic mixing
Power supply
220V/50Hz/1500W
Air source
0.5-0.8Mpa
Viscosity range
50-20000cps
Outer dimension
1500L*1200W*1600H mm
A tank
25L stainless tank（optional）
B tank
10L stainless tank（optional）
Others
AB tank 、A pump、AB pipeline heating function
Application
1. Potting&Encapsulation &Casting: electronics components , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast , motor , art mold ,aviation parts, aerospace parts .

2. Dispensing&Dosing: LED strip , led lamp , led bulb , aluminum,led screen , display module / medical parts，medical liquid , filling ...

3. Bonding&doming: LCD screen ,LOCA bonding，ABS plastic / different types of stickers , badge , keychains , souvenirs ,arts ,photo frame , and other arts graphics .
Semi automatic LED Glue Potting Machine for module and soft and hard light strip 1
Main applications in electronics components

Transformer , capacitance , power module , regulating plate ,protection module , generator , pressure
package , solid relay ,fault indicator , Sensors , junction box , clutch , wave filter , water meter , battery cover , rectifier and so on ...
Semi automatic LED Glue Potting Machine for module and soft and hard light strip 2
Semi automatic LED Glue Potting Machine for module and soft and hard light strip 3
Suitable material
1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials.
Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, dual-component compound material UV materials and so on .
Working Principle
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
Semi automatic LED Glue Potting Machine for module and soft and hard light strip 4
About Company
Semi automatic LED Glue Potting Machine for module and soft and hard light strip 5

■ About D&H

D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.
Semi automatic LED Glue Potting Machine for module and soft and hard light strip 6
Semi automatic LED Glue Potting Machine for module and soft and hard light strip 7
Certifications
Semi automatic LED Glue Potting Machine for module and soft and hard light strip 8

■ QUALIFICATION CERTIFICATE

We have more than 30 national patents, and are at the industry pioneer level in the core technologies of adhesive potting and dispensing .

Sales Network & Customers
Semi automatic LED Glue Potting Machine for module and soft and hard light strip 9
Semi automatic LED Glue Potting Machine for module and soft and hard light strip 10
Exhibition
Semi automatic LED Glue Potting Machine for module and soft and hard light strip 11
Packing & Delivery
Semi automatic LED Glue Potting Machine for module and soft and hard light strip 12
■  Standard Wooden Case with Vacuum Package
● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.
FAQ
Q：Do you offer oversea service?
A：We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service.
Q：How dose your factory do regarding quality control?
A：We assure 1 year warranty for the main part,also we offer spare part for back up.
Please check with sales engineer in detail.
Q：What are your payment terms?
A：Normally, 30% advance by T/T and balance paid off before delivery.
Q：Are you a factory or trading company ?
A：We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years.
