High precision Panasonic PLC ensure high stably performance and precisely AB glue output quantity
All Products
Manual AB two-component resin glue dispensing machine 2 part epoxy resin digital glue dispenser
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | DH |
| Model Number | PJL-1200 |
| Price | $8,000.00/sets >=1 sets |
| Packaging Details | wooden box packing for sea shipment |
| Supply Ability | 100 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Weight (KG) | 450 |
|---|---|---|---|
| Showroom Location | Turkey, Italy, Viet Nam, Philippines, Russia, Thailand | Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided | Marketing Type | Ordinary Product |
| Warranty Of Core Components | 1 Year | Core Components | PLC, Motor, Pump |
| Warranty | 1 Year | Name | Automatic Epoxy Resin Dispensing Machine With Foot Pedal |
| AB Ratio | 1:1 - 10:1 Optional | Mixing Method | Static / Dynamix Optional |
| Metering Pump | Gear Pump Or D&H Patented Plunger Pump | Output Speed | 2-125g/5s Adjustable |
| Precision | +/-1% | Tank Capacity | 10L, 25L, 40L, 60L Optional |
| Dimension | L1640mm*W750*H1900 | Port | Guangzhou |
Product Description
Product description

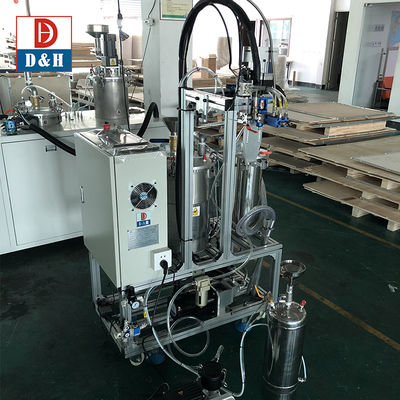

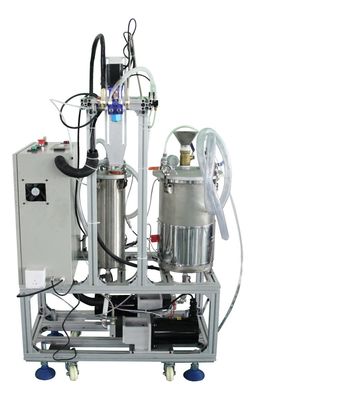

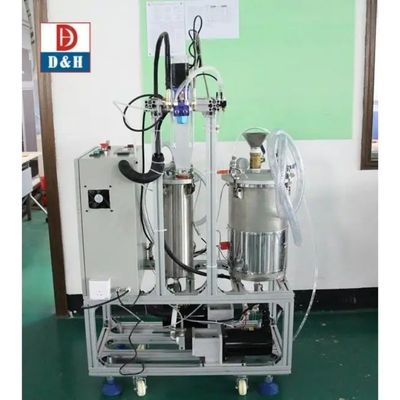

Manual AB two-component resin glue dispensing machine 2 part epoxy resin digital glue dispenser
Epoxy PU silicone two parts glue manual dispensing machine
PJL-1200 system accurately meters, mixes and dispenses two-component medium to low-viscosity materials for potting, gasketing, sealing, encapsulation and syringe filling. For variable ratio dispensing, the system handles ratios from 1:1 to 10:1.
The system is composed of material tank, metering pump, metering motor, material pipe, two component valve, motor for dynamic stirring and mixing tube. Two kinds of glue are separated before they mix in mixing tube, so the glue will not cure in devices. Glue valve is with vacuum function to keep thin fluid from dripping. Other optional functions include:
Tank stirring function;
Tank defoaming function;
Thermostat heating function on Tank, pipe, and pump;
Specification Epoxy PU silicone two parts glue manual dispensing machine | ||||||
Mixing Method: | Dynamic or Static, optional; | |||||
Repeatability: | ±1% | |||||
Mixing Accuracy: | ±1% | |||||
Tank Capacity: | 10L/25L/40L/60L or Customized | |||||
Mixing Ratio: | 1:1 - 1:10 adjustable | |||||
Gluing Speed: | 5-66g/5s adjustable; | |||||
Air Pressure: | 0.5-0.7Mpa | |||||
Power Input: | AC220V 50-60Hz or Customized | |||||
Dimension: | 1500*1200*1500mm | |||||
Weight: | 260KGS | |||||
Applications
Epoxy PU silicone two parts glue manual dispensing machine
1. Electrical Products: Electronic parts, integrated circuits, circuit board solder paste, fixed and dust and moisture protection, LCD liquid crystal screen, speakers, headphone, audio, LED, optical lens, SMD transformers, relays.
2. Communication Products: Keypad, mobile phone casing bonding, radio, telephone, Computers, MP4, electronic toys, chassis bonding, switches, connectors, plug cable.
Machine features:
Epoxy PU silicone two parts glue manual dispensing machine
1. Automatic metering and mixing, touch screen PLC control system, English operation interface allow easy to set parameters;
2. Big LCD screen displays various processing data;
3. Easy programming of dots, stripes, arcs, compound arcs and patterns on different planes;
4. Gluing speed and timing can be set;
5. CAD file can be imported and turned to be dispensing patterns, and downloaded via USB; (optional function)
6. Mixing ratio 1:1-1:10 and gluing volume can be set and adjusted as per actual need. Dynamic mixing ensure two component glue to be mixed to a fully homogeneous consistency;
7. Metering, mixing and gluing simultaneously;
8. Two tanks keep A glue and B glue separately;
9. Liquid level sensor, alarm function;
10. Tank stirring and vacuum defoaming function optional;
11. Auto cleaning; The cleaning mode can be manually or automatically, manual mode just remove the mixing tube then soak into cleaning agent, after 10 min take out and clean with compressed air, Automatic mode only need to operate the cleaning switch on touch screen within 1 minute to complete;
12. Glue tank/metering pump/glue pipe heating function (optional);
13. Vacuum control keeps thin fluids from dripping;
14. Unique control system which will not influenced by air pressure factor, ensures optimal dispensing performance;
Machine details

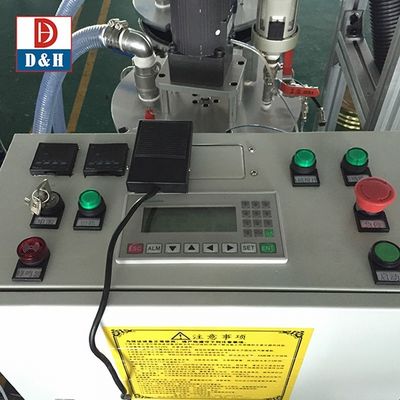

Panasonic PLC.

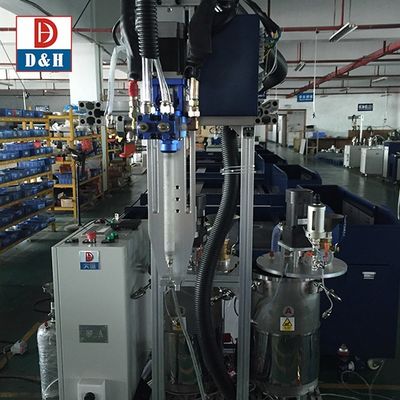

Dynamic mixing.
High speed mixing motor, mixing glue well. According to glue features, static mixing is available

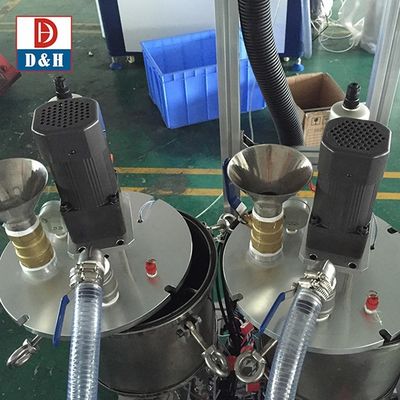

Vacuum tank with stirring motor.
With defoaming function and mixing motor, no bubbles in glue, pre-heating is available for selection
Tank with liquid sensor.
Both AB tank with high level and low level liquid sensor, when the glue is not enough or the machine is abnormal, the machine will show the warning message. Humanized engineering design, avoid the serious damages. There's a professional sealing ring to make sure the glue tank in vacuum status. To avoid the glue to be crystallization or curved.
Vacuum tank.
vacuum tank with auto glue filling function
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 150CM(L) * 110CM (W) * 170CM (D) | |
Weight | 550KGS | |
Packaging Details | The normal package is wooden box(Size: L*W*H). The wooden box will be fumigated. We will use pe film for packing or pack it according to customers special request. | |
Other machines
PGB-200
Small automatic Glue dispensing machine with working area: L480mm*W480mm*H80mm
QPD-300
Glue dispenser for LED bulbs with 3 heads
SZD-700
One component glue dispensing machine with working area: L700mm*W700mm*H80mm
PJL-1500
Automatic glue mixing machine, manual glue dispenser
PGB-1200
automatic Glue dispensing machine with working area: L1200mm*W1200mm*H80mm
PJL-1200
Automatic glue mixing machine, manual glue dispenser, with long pipe
