LED Module Display Automatic Glue Mixing Potting Machine with Out-Gluing Rate 5-66g/5s
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Daheng |
| Price | $12,900.00/sets 1-1 sets |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Gluing Machine | Applicable Industries | Manufacturing Plant |
|---|---|---|---|
| Showroom Location | Turkey, Italy, Viet Nam, Indonesia, Russia, Thailand, Ukraine, Malaysia, Australia | Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided | Warranty Of Core Components | 1 Year |
| Core Components | Engine, Pump | Condition | New |
| Application | PU , EPOXIES ,SILICONES | Packaging Type | Polywood Case |
| Packaging Material | Plastics And Polywood Case | Automatic Grade | Automatic |
| Driven Type | Electric | Voltage | 230V/380V |
| Weight | 500 KG | Warranty | 1 Year |
| Key Selling Points | High Precision | Defition | LED Module Display Automatic Glue Dispensing Mixing Potting Machine |
| Xyz Working Area | 700 X 700 X100mm | Size | L1500xw1200xh1500mm |
| Ratio | From 1:1 To 10:1 | Stiring Method | Static Or Dynamic |
| Pump | Daheng Patent Plunger Pump | Out-Gluing Rate | 5-66g/5s |
| Mixing Precision | +/-1% | Container Volume | A:25L B:10L |
Product Description
Product Overview
LED Double LED Module Display Automatic Glue Dispenser Machine
Features and Benefits:
1, A system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid possible waste of glue.
3, Shot size and positioning keep consistent, fast.
4, Good universality makes PGB-700 suitable for applications of LED, electric and others glue potting needed.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing backflow device and other functional device.
1, A system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid possible waste of glue.
3, Shot size and positioning keep consistent, fast.
4, Good universality makes PGB-700 suitable for applications of LED, electric and others glue potting needed.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing backflow device and other functional device.

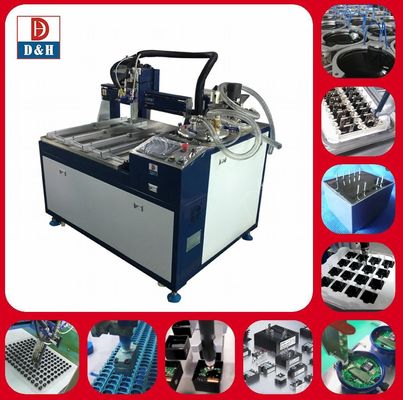

Application cases
LED Module Display Automatic Glue Dispenser Machine
Right elevation
Applications
Front elevation
PRODUCT SPECIFICATIONS
Working area | 700mm×700mm×100 mm |
Working speed | 250mm/s |
Precision | +/-0.2mm |
Ratio | 1 ：1 ---10：1 |
Glue-out speed | 1g/s --15g/s |
Mixing precision | +/-2% |
Program memory | 20pcs |
Glue viscosity | 300cps~50000cps |
Operation mode | Manual / automatic / third party single |
Controlling system | PLC/double cylinder plunger pump |
Flow control | Digital input |
Program | teaching programming |
Automatic controlling system | Touch screen / hand switch |
Mixing method | Dynamic mixing (including self-cleaning function) |
Tanks | Stainless tank 10L ,25L ,40L optional |
Liquid level sensor (low liquid level / high liquid level and limiting liquid level ) | |
Tank stirring | |
Constant temperature heating (A tank ;A pump and A pipes) | |
Glue filter | |
Power | 220V/50Hz/3500W |
Input air pressure | 0.5MPa—0.7MPa |
Dimension | 1200mm×1000mm ×1500mm |
Appearance material | cold-roll steel plate / Industrial aluminium/stainless / metal plate |
