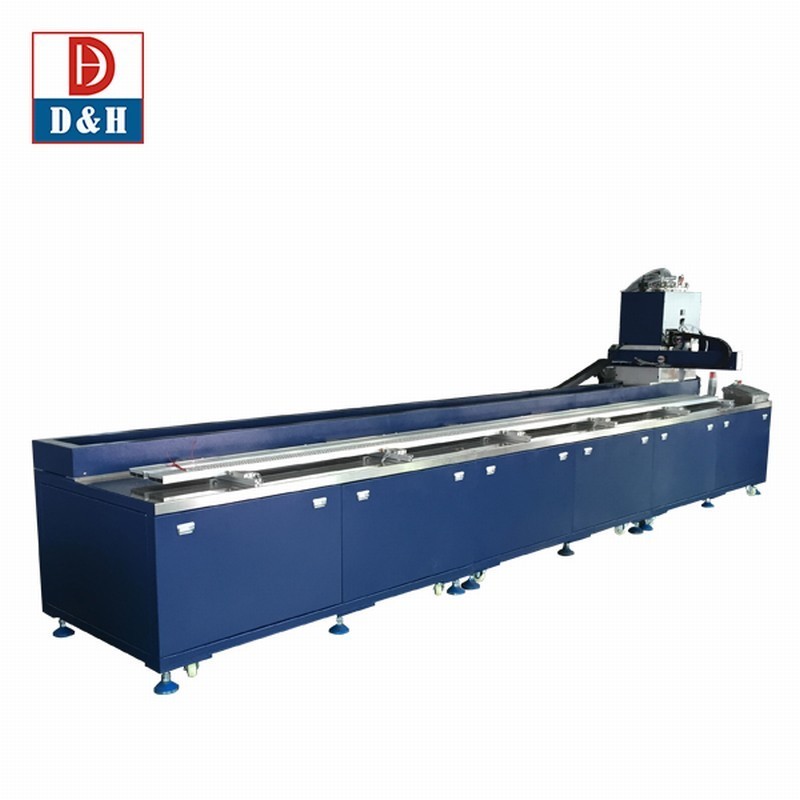

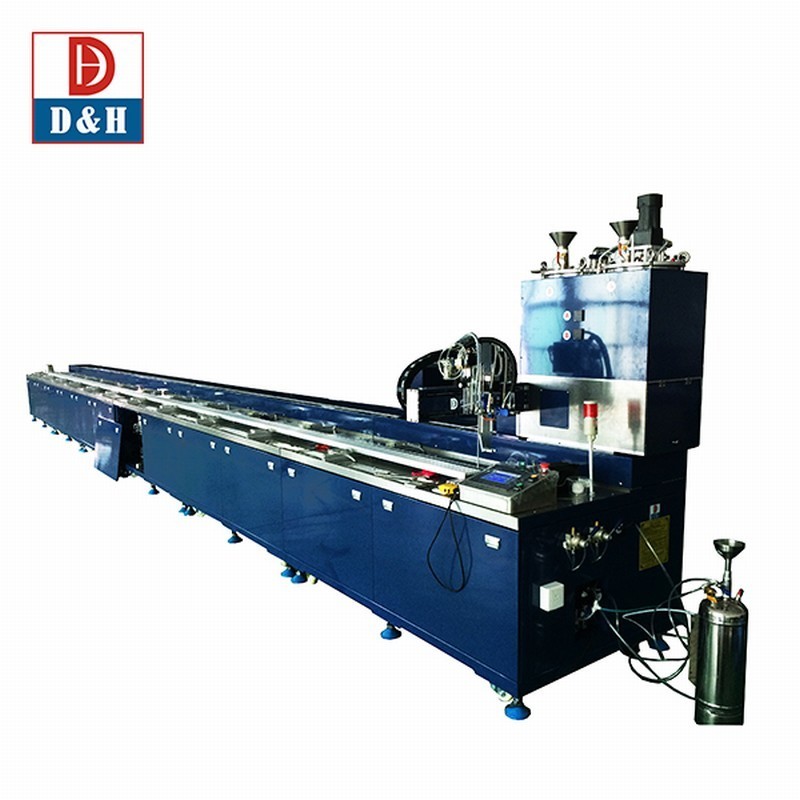

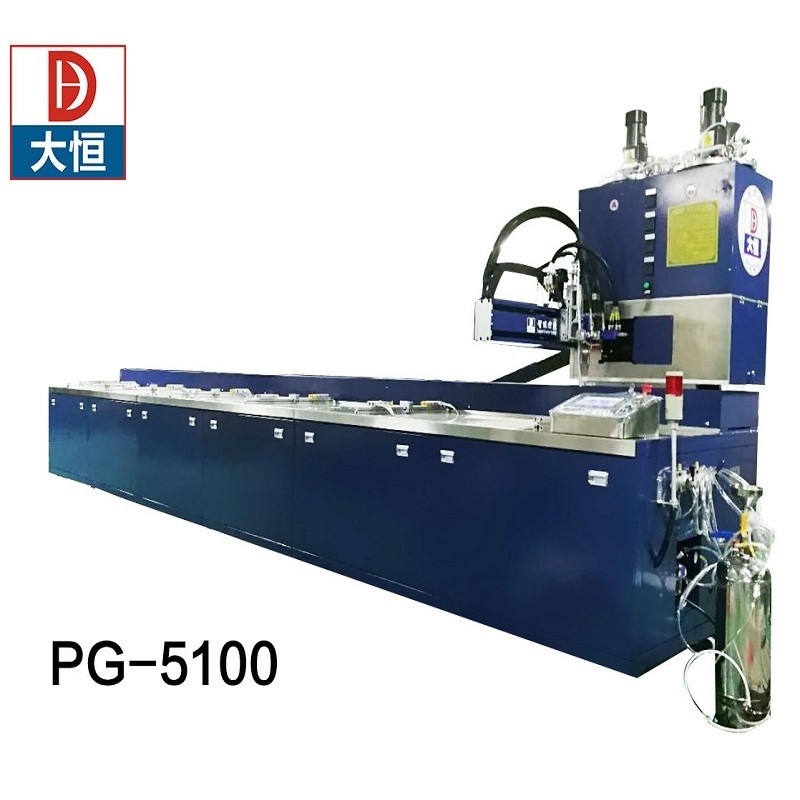

Metering Precision ±2% 3 Axis CNC Glue Dispenser for Automatic Potting Equipment
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | D&H |
| Price | $25,000.00/pieces 1-1 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Gluing Machine | Applicable Industries | Manufacturing Plant |
|---|---|---|---|
| Showroom Location | Turkey, Italy, Viet Nam, Indonesia, Russia, Malaysia | Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided | Warranty Of Core Components | 1 Year |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump | Condition | New |
| Application | Machinery & Hardware | Packaging Type | Case |
| Packaging Material | Plastic, Wood | Automatic Grade | Automatic |
| Driven Type | Electric | Voltage | Customized |
| Weight | 500 KG | Warranty | 1 Year |
| Key Selling Points | High Precision | Product Name | Adhesive Dispenser |
| Function | AB Epoxy Mixing&stirring | Speed | 0-200mm/s |
| Metering Precision | ±2% | Tank Capacity | 10L,25L,40L,60L,customized |
| Glue Type | Two Component | Heating | Available |
| Self-cleaning | Available | Mixing Ratio | 1:1--10:1 Adjustable |
| Working Area | 200x200x100mm |
Product Description
Product Overview
cnc 3 axis automatic glue dispenser auto epoxy machine potting equipment
I Machine demand description
Electronics are increasingly present in our lives,these technologies all use a wide array
of components – sensors, actuators, central processing units (CPUs), printed circuit boards (PCB), etc. – that need to be protected against environmental factors such as dust and moisture, as well as fluids and heat and fire exposure. Our 2 component application equipment is the the good machine for potting and encapsulating vary parts and products, which apply different production processes required metering , mixing , dosing , dispensing and potting with high accuracy and high efficiency .
of components – sensors, actuators, central processing units (CPUs), printed circuit boards (PCB), etc. – that need to be protected against environmental factors such as dust and moisture, as well as fluids and heat and fire exposure. Our 2 component application equipment is the the good machine for potting and encapsulating vary parts and products, which apply different production processes required metering , mixing , dosing , dispensing and potting with high accuracy and high efficiency .
II Metering working Principle
The machine will have two tanks for keeping Liquid A & B separately.
There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with
each other in the mixer pipe and dispensed out according to the programmable data .
III Features and Benefits:
1. The glue potting system are for AB component materials for metering, mixing and potting .
2. Accurated metering and evenly mixing helps to avoid possible waste of glue.
3. Dispensing size and positioning keep consistently and fastly.
4. Good universality makes our machine suitable for applications of LED, electric and others glue potting and dispensing needed.
5. Easy to program and operate.
6.Fast metering & mixing and running speed keep potting with high efficiency.
7. Tally function, non-standard mode, tank level alert, filter mode, liquid display device, preventing backflow device and other functional device.
IV Machine functions：
* Mixing ratio ：100:100-100:10 adjustable . Dynamic or static mixing mode are optional .
* Tank liquid level sensor ：Tank liquid level alarm helps remind glue level line in tank and supplement materials immediately.
* Vacuum filling：The machine can automatically feeding material by using of the negative pressure of AB vacuum tank .
* Vacuum degas：Vacuum defoaming can remove the bubbles contained in the material,and this degas system can satisfy different fluid mixing and potting .
* Heating：Heating helps glue, especially PU and epoxy, to quickly reduce viscosity in cold weather, increase flow speed, and improve glue filling efficiency.
* Self-cleaning ：Automatic cleaning can quickly clean the mixing tube and prevent the mixture from solidifying
* Self-discharging：Automatic discharging can discharge the mixture that is about to be solidified in time to prevent the mixture from solidifying in the mixing tube.
The machine will have two tanks for keeping Liquid A & B separately.
There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with
each other in the mixer pipe and dispensed out according to the programmable data .
III Features and Benefits:
1. The glue potting system are for AB component materials for metering, mixing and potting .
2. Accurated metering and evenly mixing helps to avoid possible waste of glue.
3. Dispensing size and positioning keep consistently and fastly.
4. Good universality makes our machine suitable for applications of LED, electric and others glue potting and dispensing needed.
5. Easy to program and operate.
6.Fast metering & mixing and running speed keep potting with high efficiency.
7. Tally function, non-standard mode, tank level alert, filter mode, liquid display device, preventing backflow device and other functional device.
IV Machine functions：
* Mixing ratio ：100:100-100:10 adjustable . Dynamic or static mixing mode are optional .
* Tank liquid level sensor ：Tank liquid level alarm helps remind glue level line in tank and supplement materials immediately.
* Vacuum filling：The machine can automatically feeding material by using of the negative pressure of AB vacuum tank .
* Vacuum degas：Vacuum defoaming can remove the bubbles contained in the material,and this degas system can satisfy different fluid mixing and potting .
* Heating：Heating helps glue, especially PU and epoxy, to quickly reduce viscosity in cold weather, increase flow speed, and improve glue filling efficiency.
* Self-cleaning ：Automatic cleaning can quickly clean the mixing tube and prevent the mixture from solidifying
* Self-discharging：Automatic discharging can discharge the mixture that is about to be solidified in time to prevent the mixture from solidifying in the mixing tube.
Application：
FEATURES AT A GLANCE
Front elevation
down elevation
side elevation

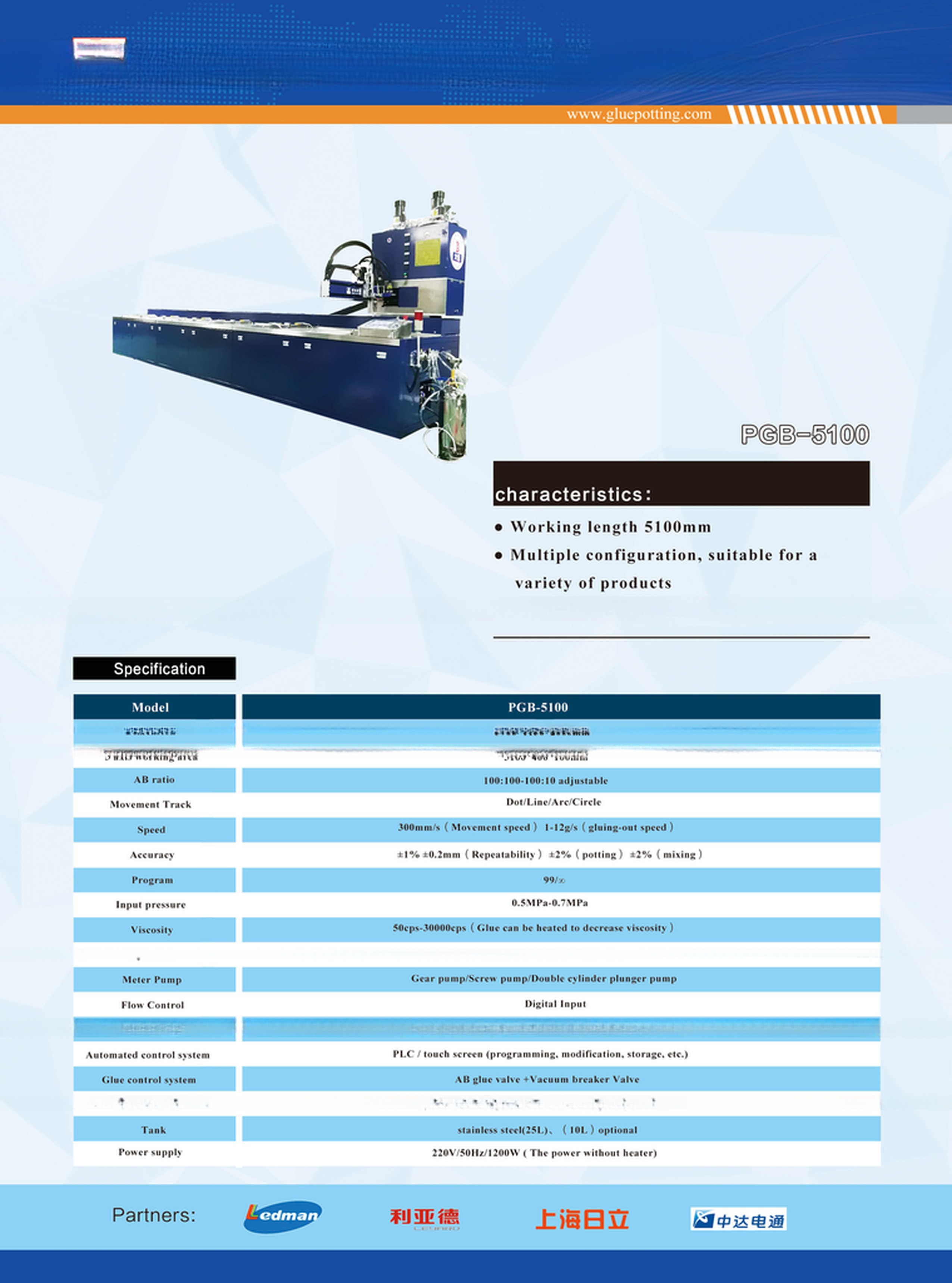

PRODUCT CONFIGURATION
ITEM | Parameter |
Mixing ratio | 1:1--10:1 adjustable |
Working range | 200*200*100mm |
Displacement speed | 200mm/s（speed） |
Out-glue speed | 1-12g/s |
Accuracy | ±2%（output volume）±2%（mixing） |
tolerance | ≤0.2mm |
Flow control | Digital input |
Program memory | 99pcs |
Motion trail | Dot , line ,curve ,circle |
Automatic controlling system | Touch screen (to achieve program programming, modification, storage and so on |
Out-glue control system | AB glue back suction valve, achieve AB glue independent operation |
Programmatically | Tech programming With computer systems (Micro software Windows 7,Windows10 optional) |
Mixing method | dynamic mixing |
Power supply | 220V/50Hz/1500W |
Air source | 0.5-0.8Mpa |
Viscosity range | 50-20000cps |
Outer dimension | 1500L*1200W*1600H mm |
A tank | 25L stainless tank（optional） |
B tank | 10L stainless tank（optional） |
Others | AB tank 、A pump、AB pipeline heating function |

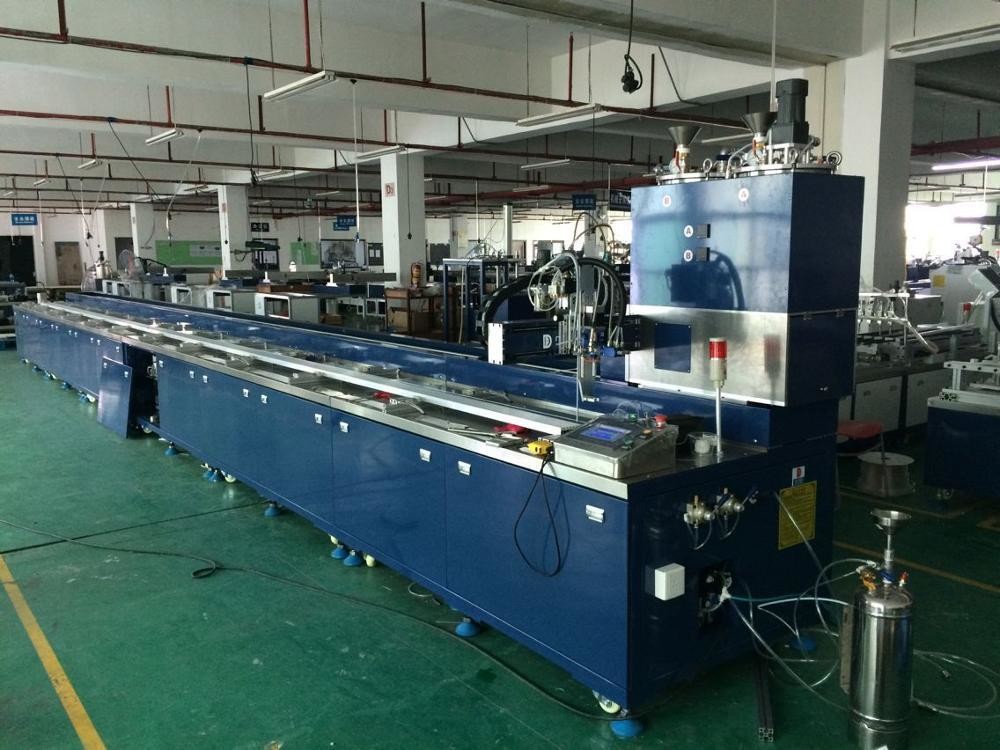

Successful Project
marketing activities oversea
Project in India
Project in Russia
Suitable materials ：
Two component silicones ,polyurethane,epoxies,two part compound,AB compound,Bi-compound
other potting dispensing adhesive .
other potting dispensing adhesive .
About Company
■ About D&H
D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.
Certifications
■ QUALIFICATION CERTIFICATE
We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing
Sales Network & Customers
Exhibition
Packing & Delivery
■ Standard Wooden Case with Vacuum Package
● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.
● By sea, for large package and quantity;
● Other ways as customer requested.
FAQ
Q：Do you offer oversea service? A：We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service. | ||||||||
Q：How dose your factory do regarding quality control? A：We assure 1 year warranty for the main part,also we offer spare part for back up. Please check with sales engineer in detail. | ||||||||
Q：What are your payment terms? A：Normally, 30% advance by T/T and balance paid off before delivery. | ||||||||
Q：Are you a factory or trading company ? A：We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years. | ||||||||
