Automatic 2 component 2 part AB Silicone Epoxy Resin Urethane Resin Meter Mix Dispensing Machine Robot Price
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | D&H |
| Price | $9,900.00/pieces 1-1 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Gluing Machine | Applicable Industries | Manufacturing Plant |
|---|---|---|---|
| Showroom Location | Turkey, Italy, Viet Nam, Russia, Malaysia | Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided | Warranty Of Core Components | 1 Year |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump | Condition | New |
| Application | Machinery & Hardware | Packaging Type | Case |
| Packaging Material | Plastic, Wood | Automatic Grade | Automatic |
| Driven Type | Electric | Voltage | Customized |
| Weight | 500 KG | Warranty | 1 Year |
| Key Selling Points | High Precision | Keyword | Two Component Mixing And Metering Equipment |
| Function | AB Epoxy Mixing&stirring | Speed | 0-200mm/s |
| Metering Precision | ±2% | Tank Capacity | 10L,25L,40L,60L,customized |
| Glue Type | Two Component | Heating | Available |
| Self-cleaning | Available | Mixing Ratio | 1:1--10:1 Adjustable |
| Working Area | 700x700x100mm |
Product Description
Machine Description

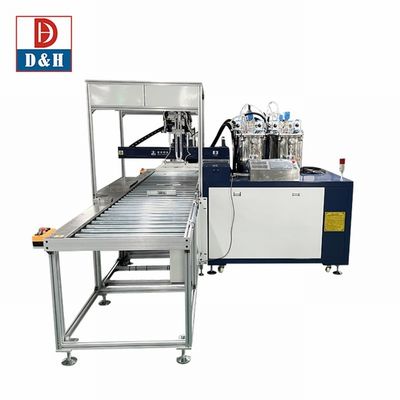

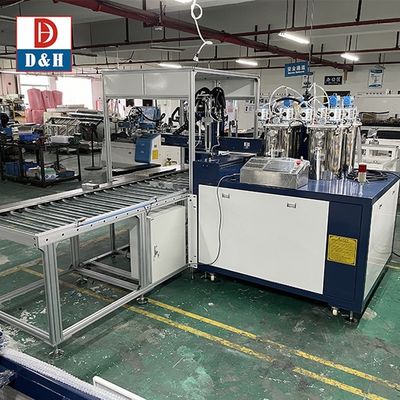

Automatic 2 component 2 part AB Silicone Epoxy Resin Urethane Resin Meter Mix Dispensing Machine Robot Price
We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.
Potting is the process of embedding electronic components & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed.
We offer 2K AB adhesive materials manual potting machine and robot potting machine
1. Vacuum material-feeding system or diaphragm pump feeding system
2. High precision pump metering system
3. Dynamic/Static mixing system

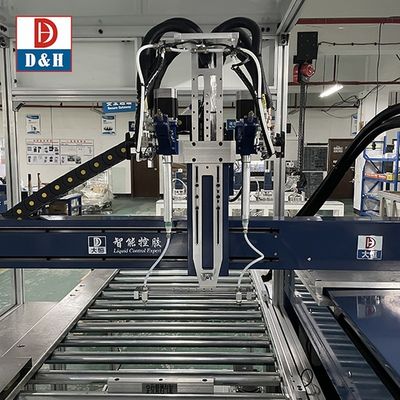

4. Three-axis motion system
5. Programming control system.
2. High precision pump metering system
3. Dynamic/Static mixing system
4. Three-axis motion system
5. Programming control system.
Features&Functions
Strong versatility / Multiple configuration / High production capacity / High precision

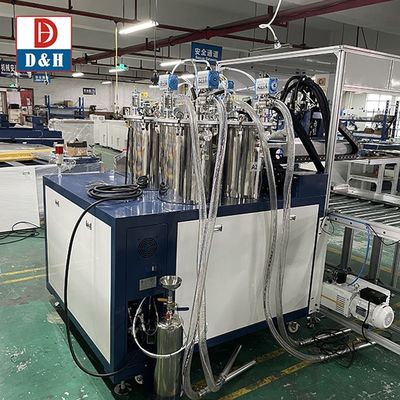

* Auto feeding : take use of vacuum pressure to feed materials into A&B tank separately.

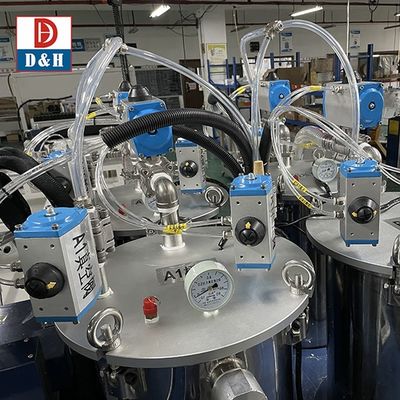

* Tank Stirring : A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom .
* Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C adjustable.
* Vacuum : A &B tank vacuum for degas the bubble inside material .
* Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.
* Auto feeding : take use of vacuum pressure to feed materials into A&B tank separately.
* Tank Stirring : A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom .
* Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C adjustable.
* Vacuum : A &B tank vacuum for degas the bubble inside material .
* Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.
ITEM | Parameter |
Mixing ratio | 1:1--10:1 adjustable |
Working range | 550*650*100mm |
Displacement speed | 200mm/s（speed） |
Out-glue speed | 1-12g/s |
Accuracy | ±2%（output volume）±2%（mixing） |
tolerance | ≤0.2mm |
Flow control | Digital input |
Program memory | 99pcs |
Motion trail | Dot , line ,curve ,circle |

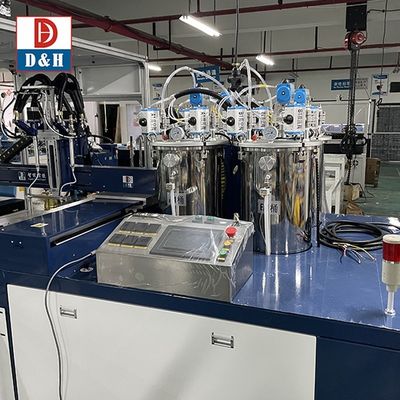

Automatic controlling system | Touch screen (to achieve program programming, modification, storage and so on |
Out-glue control system | AB glue back suction valve, achieve AB glue independent operation |
Programmatically | Tech programming With computer systems (Micro software Windows 7,Windows10 optional) |
Mixing method | dynamic mixing |
Power supply | 220V/50Hz/1500W |
Air source | 0.5-0.8Mpa |
Viscosity range | 50-20000cps |
Outer dimension | 1500L*1200W*1600H mm |
A tank | 25L stainless tank（optional） |
B tank | 10L stainless tank（optional） |
Others | AB tank 、A pump、AB pipeline heating function |
Application
1. Potting&Casting:
Transformer , capacitance , power module , regulating plate ,protection module , generator , pressure package , soli relay ,fault indicator , Sensors , junction box , clutch , wave filter , water meter , battery cover , rectifier and so on ...
electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace...
2. Dispensing&Dosing:
LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling ....
3. Bonding&doming:
LCD screen ,LOCA bonding，ABS plastic, different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....
Transformer , capacitance , power module , regulating plate ,protection module , generator , pressure package , soli relay ,fault indicator , Sensors , junction box , clutch , wave filter , water meter , battery cover , rectifier and so on ...
Applicable Materials
1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials.
Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .
Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .
