Vacuum Glue Potting Machine for Plastic Packaging Material and Electronic Components
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Daheng |
| Price | $49,000.00/pieces 1-1 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Gluing Machine | Applicable Industries | Manufacturing Plant |
|---|---|---|---|
| Showroom Location | Turkey, Italy, Viet Nam, Russia, Thailand, Malaysia | Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided | Warranty Of Core Components | 1 Year |
| Core Components | PLC, Pump | Application | Chemical, Reverse Sensor And Electronic Components , Ignition Coils... |
| Packaging Type | Polywood Case | Packaging Material | Plastic, Polywood-case |
| Automatic Grade | Automatic | Driven Type | Electric |
| Voltage | 230V,380V | Weight | 800 KG |
| Warranty | 1 Year | Key Selling Points | High-accuracy |
| Name | Electronic Components Under Vacuum Glue Potting Machine | Functions | Vacuum In Low Pressure -0.1Mpa |
| Feeding Way | Automatic | Control Mode | PLC And Communication Module |
| Working Area | 400x600x100mm Or Customized | Tank Compacity | 10L,25L,40L Optional |
| Speed | 0-300mm/s | Ratio | 1:1-10:1 |
| Applied Materials | Two-component Adhesive Pu , Epoxy , Silicones |
Product Description
Product Overview
Electronic Components Under Vacuum Glue Potting Machine
* Suitable for large, heavy duty products ,vacuum pressure adjustable
* Applications: Reverse Sensor, Electronic Circuit Board, Electronic Ballast ，air Filters, LED products ,Electronic components,Crafts，Ads modules, Capacitors, Power supply, Transformer, end cap for filter, solar junction box ，Power module,Ignition coil, Sensor, Photovoltaic module, Photovoltaic inverter and other products which need potting process for waterproof , shockproof , dust-proof , encapsulation etc.

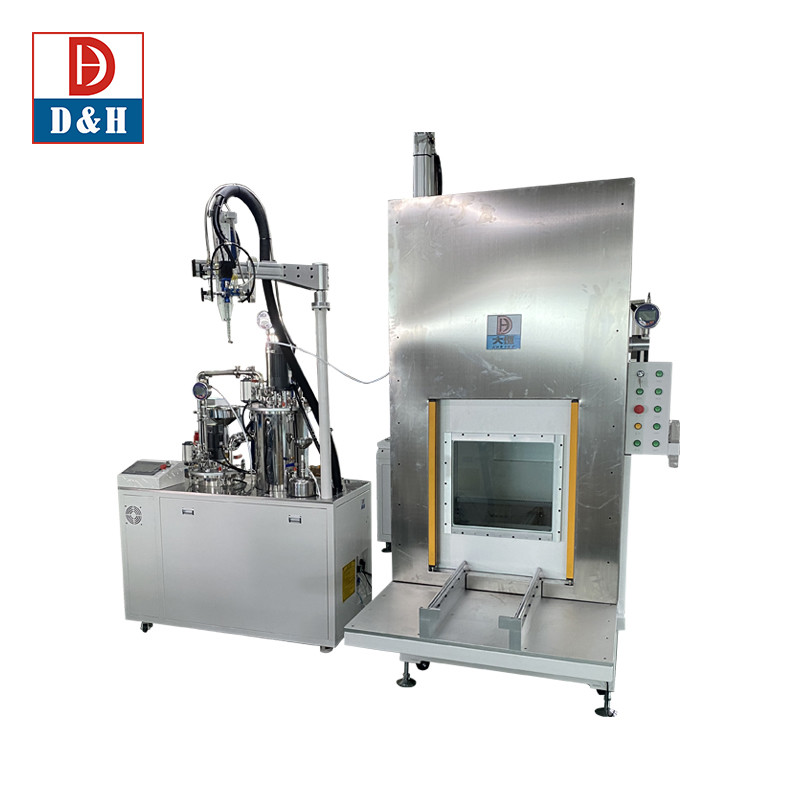

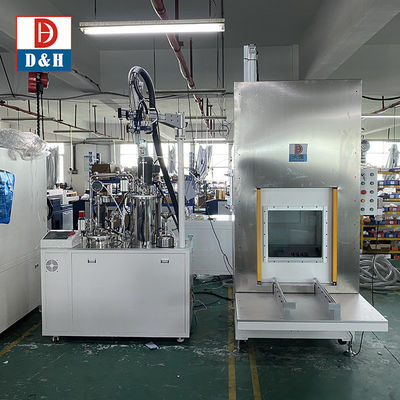

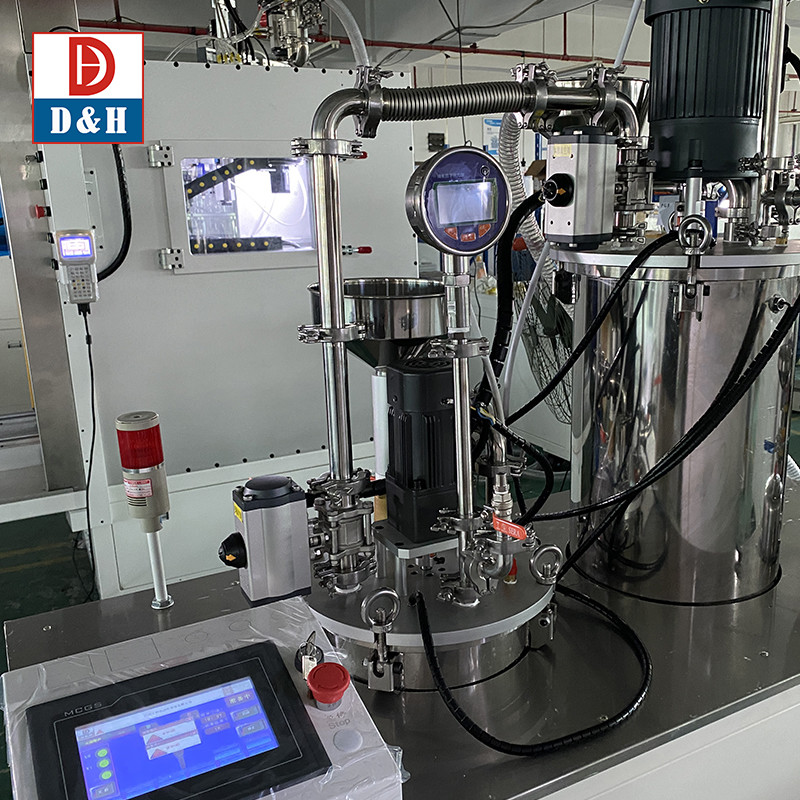

Machine picture

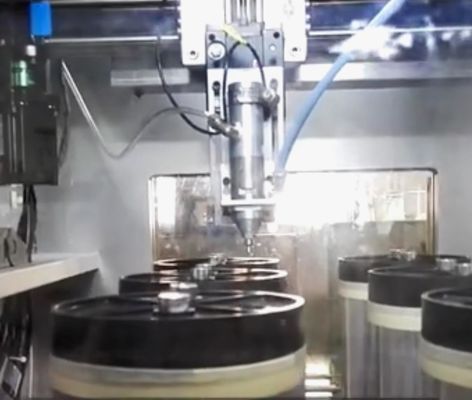

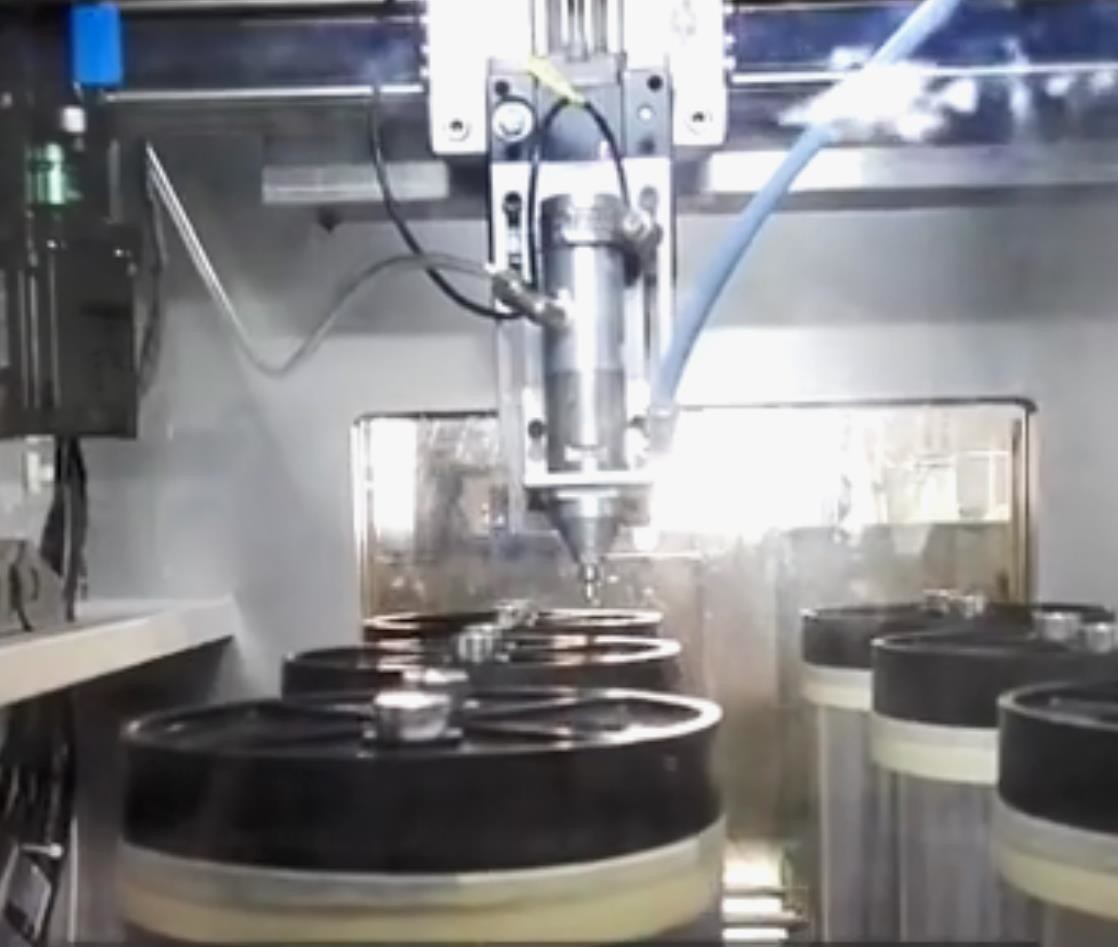

Project cases

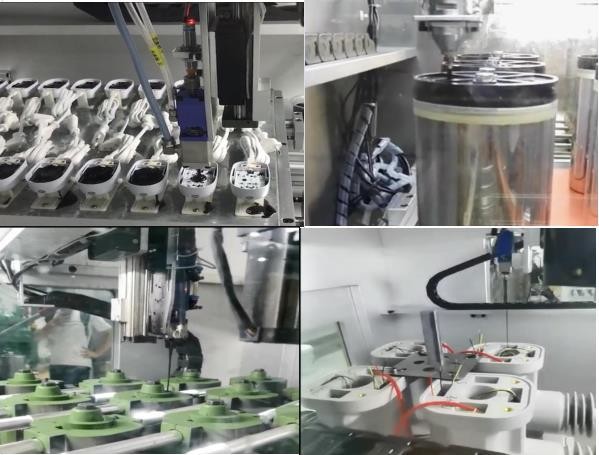

Project application
PRODUCT SPECIFICATIONS
Glue ratio | 1 ：1 ---10：1 |
Ratio acurracy | ±2% |
Glue-out speed | 1g/s --24g/s |
Glue-out accuracy | ±2% |
Program memory | 99 pcs |
Glue viscosity | 50cps~8000cps（Reference number） |
Opearation Mode | Manual mode /Automatic mode |
Ratio Control | PLC/ Double plunger pump (Can change different type of metering pumps) |
Flow Control | Digital input |
Parameter display | Pointer / digital display |
Automatic control system | Touch screen / button switch/ third party signal |
Mixing Method | Static mixing / Automatic cleaning |
Storage Tank | Stainless steel A and B(10L,25L ,40L optional) |
Stainless steel cleaning berrel C（7L） | |
Vacuum degas（-0.1MPa） | |
Liquid level sensor（Low liquid level/high liquid level） | |
A/B Tank stirring | |
AB glue constant temperature heating(available) | |
Glue filter | |
Power | 220V/50Hz/5000W |
Outer dimension | Glue Potting Machine：995mm×600mm×1500mm |
Frame Materials | Cold rolled steel/industrial aluminum/stainless steel/sheet metal |
About Company
■ About D&H
D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.
Certifications
■ QUALIFICATION CERTIFICATE
We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing
Sales Network & Customers
Exhibition
Packing & Delivery
■ Standard Wooden Case with Vacuum Package
FAQ
Q：Do you offer oversea service? A：We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service. | ||||||||
Q：How dose your factory do regarding quality control? A：We assure 1 year warranty for the main part,also we offer spare part for back up. Please check with sales engineer in detail. | ||||||||
Q：What are your payment terms? A：Normally, 30% advance by T/T and balance paid off before delivery. | ||||||||
Q：Are you a factory or trading company ? A：We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years. | ||||||||
