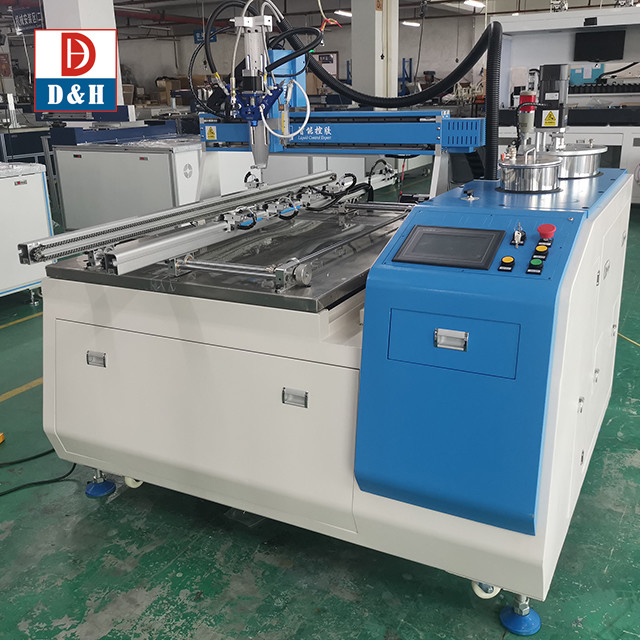

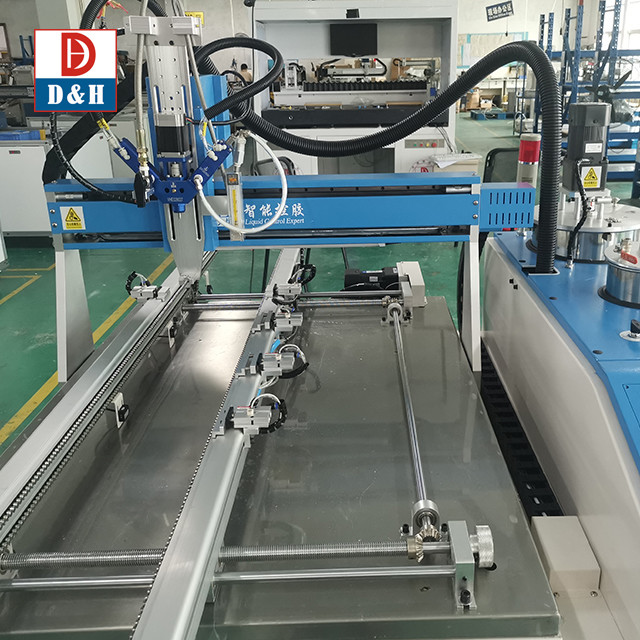

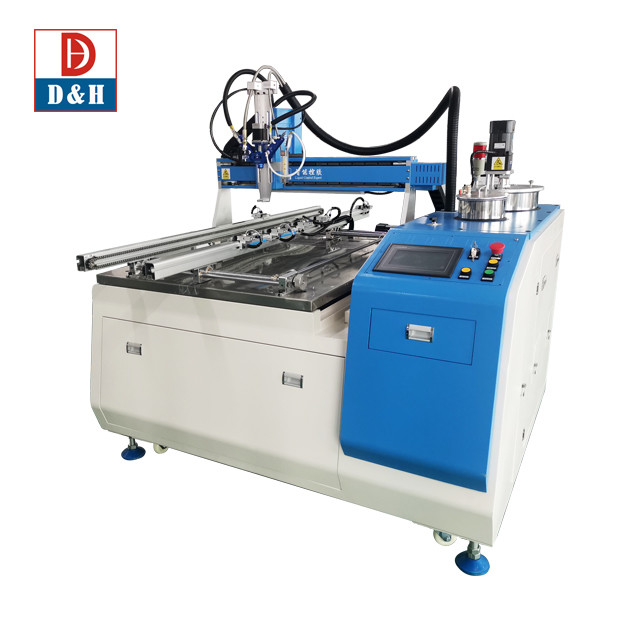

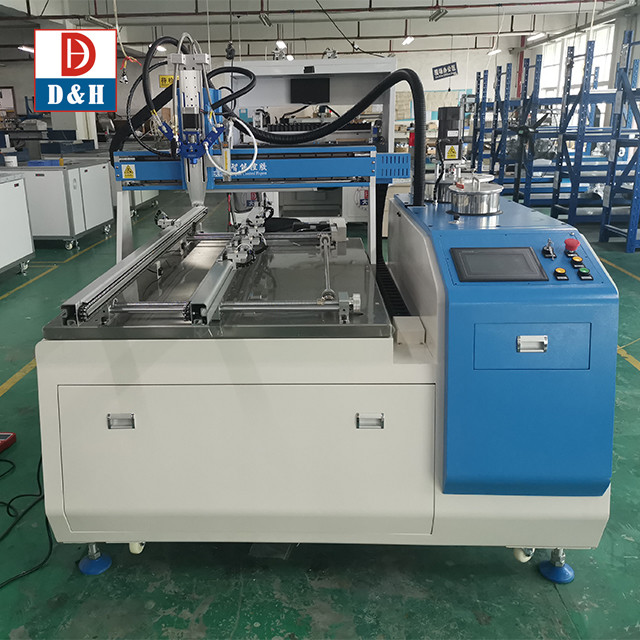

Plastic Packaging Material PGB-810 LED Module Robot Glue Dispensing Automated Machine
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | D&H |
| Price | $20,000.00/pieces 1-1 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Gluing Machine | Applicable Industries | Manufacturing Plant |
|---|---|---|---|
| Showroom Location | Turkey, Italy, Viet Nam, Russia, Malaysia | Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided | Warranty Of Core Components | 1 Year |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump | Condition | New |
| Application | Machinery & Hardware | Packaging Type | Case |
| Packaging Material | Plastic, Wood | Automatic Grade | Automatic |
| Driven Type | Electric | Voltage | Customized |
| Weight | 500 KG | Warranty | 1 Year |
| Key Selling Points | High Precision | Product Name | Automated Dispensing Robot |
| Function | AB Epoxy Mixing&stirring | Speed | 0-200mm/s |
| Metering Precision | ±2% | Tank Capacity | 10L,25L,40L,60L,customized |
| Glue Type | Two Component | Heating | Available |
| Self-cleaning | Available | Mixing Ratio | 1:1--10:1 Adjustable |
| Working Area | 800x700x100mm |
Product Description
Product Overview
led module robot glue dispensing manufacturing machinery automated glue dispensing robot machine
* Working principle :

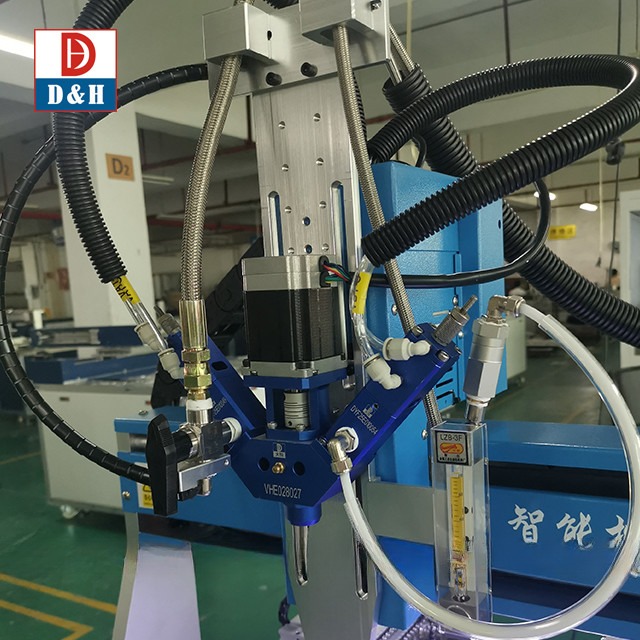

Liquid A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
* Applications
Led display modules , led sign board , led ads modules
Reverse Sensor, Electronic Circuit Board, Electronic Ballast ，air Filters, LED products ,Electronic components,Crafts，Ads modules, Capacitors, Power supply,
Transformer, end cap for filter, solar junction box ，Power module, Ignition coil, Sensor, Photovoltaic module, Photovoltaic inverter. etc
* Machine Features：
1、Intelligent metering ，mixing ， dosing ， dispensing and potting , remote operation
2、Functions : Auto feeding , tank stirring, material heating , vacuum , dynamic /static mixing ,self-cleaning ,self-discharging
1、Intelligent metering ，mixing ， dosing ， dispensing and potting , remote operation
2、Functions : Auto feeding , tank stirring, material heating , vacuum , dynamic /static mixing ,self-cleaning ,self-discharging
3.Flexible manufacturing system
4、Real time monitoring
5、Accessible MES system and support third party communication .
4、Real time monitoring
5、Accessible MES system and support third party communication .
Suitable Materials:
* Epoxies , Urethane(PU) or Silicone .
* Two components glue, AB glue, AB part glue, silicone, epoxy resin, polyurethane;
* All kinds of two-component mixed glues with required ratio, such as epoxy resin AB glue, polyurethane, silica gel,
* Two components glue, AB glue, AB part glue, silicone, epoxy resin, polyurethane;
* All kinds of two-component mixed glues with required ratio, such as epoxy resin AB glue, polyurethane, silica gel,
PRODUCT CONFIGURATION
ITEM | Parameter |
Mixing ratio | 1:1--10:1 adjustable |
Working range | 700*700*100mm |
Displacement speed | 200mm/s（speed） |
Out-glue speed | 1-12g/s |
Accuracy | ±1%（output volume）±1%（mixing） |
tolerance | ≤0.1mm |
Flow control | Digital input |
Program memory | 99pcs |
Motion trail | Dot , line ,curve ,circle |

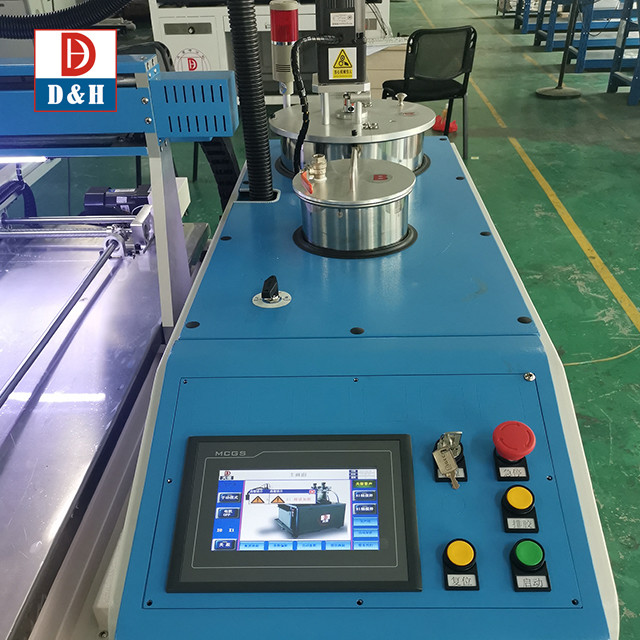

Automatic controlling system | Touch screen (to achieve program programming, modification, storage and so on |
Out-glue control system | AB glue back suction valve, achieve AB glue independent operation |
Programmatically | Tech programming With computer systems (Micro software Windows 7,Windows10 optional) |
Power supply | 220V/50Hz/1500W |
Air source | 0.5-0.8Mpa |
Viscosity range | 50-20000cps |
Outer dimension | 1500L*1200W*1600H mm |
A tank | 25L stainless tank（optional） |
B tank | 10L stainless tank（optional） |
About Company
■ About D&H
D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.
Certifications
■ QUALIFICATION CERTIFICATE
We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing
Sales Network & Customers
Exhibition
Packing & Delivery
■ Standard Wooden Case with Vacuum Package
● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.
● By sea, for large package and quantity;
● Other ways as customer requested.
FAQ
Q：Do you offer oversea service? A：We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service. | ||||||||
Q：How dose your factory do regarding quality control? A：We assure 1 year warranty for the main part,also we offer spare part for back up. Please check with sales engineer in detail. | ||||||||
Q：What are your payment terms? A：Normally, 30% advance by T/T and balance paid off before delivery. | ||||||||
Q：Are you a factory or trading company ? A：We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years. | ||||||||
