E-motors potting with 2 part epoxy resins
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | D&H |
| Price | $28,000.00 - $38,000.00/pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Weight (KG) | 800 |
|---|---|---|---|
| Video Outgoing-inspection | Provided | Machinery Test Report | Provided |
| Marketing Type | Ordinary Product | Warranty Of Core Components | 1 Year |
| Core Components | PLC, Pump, Valve | Warranty | 1 Year |
| Applicable Industries | Manufacturing Plant, Electronic Industry, Electrical Industry, Automotive, Electronics, Automobile Industry, Automotive Industry, Robot Manufacturing, New Energy | Showroom Location | Turkey, Italy, Viet Nam, Philippines, Russia, Malaysia |
| Color | Silver | Key Words | E-motors Potting With 2 Part Epoxy Resins |
| Tank Compacity | 25L ,40L ,60L Or Customized | Metering System | D&H Plunger Pump |
| AB Valve | Patented Suction Valve | Auto Cleaning | Available |
| Heaters | Tanks , Pumps , Hoses | Anti Crystal | Available |
| Vacuum | Feeding System , Under Vacuum Potting System |
Product Description
Machine Description

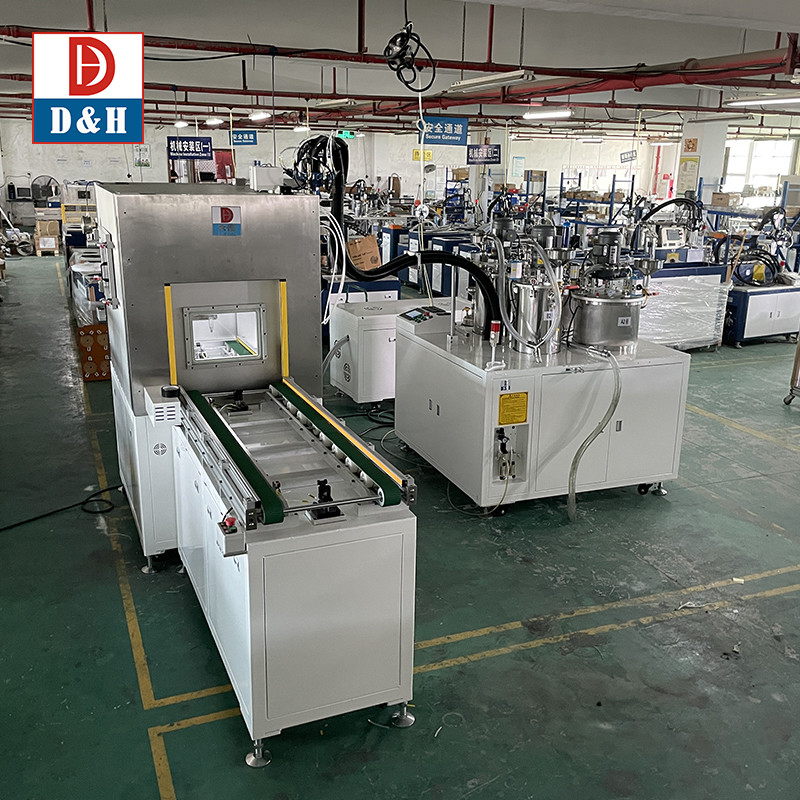

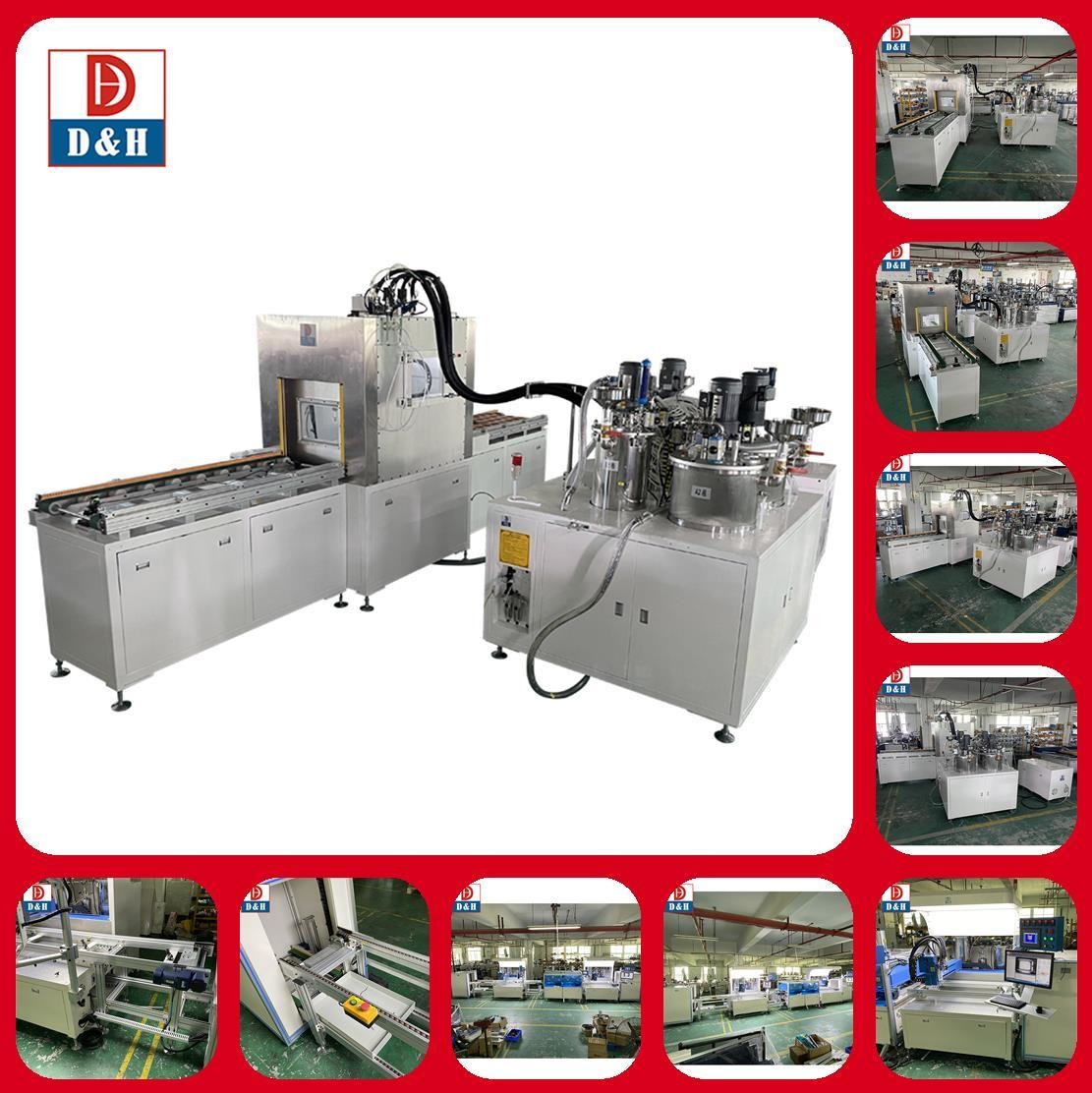

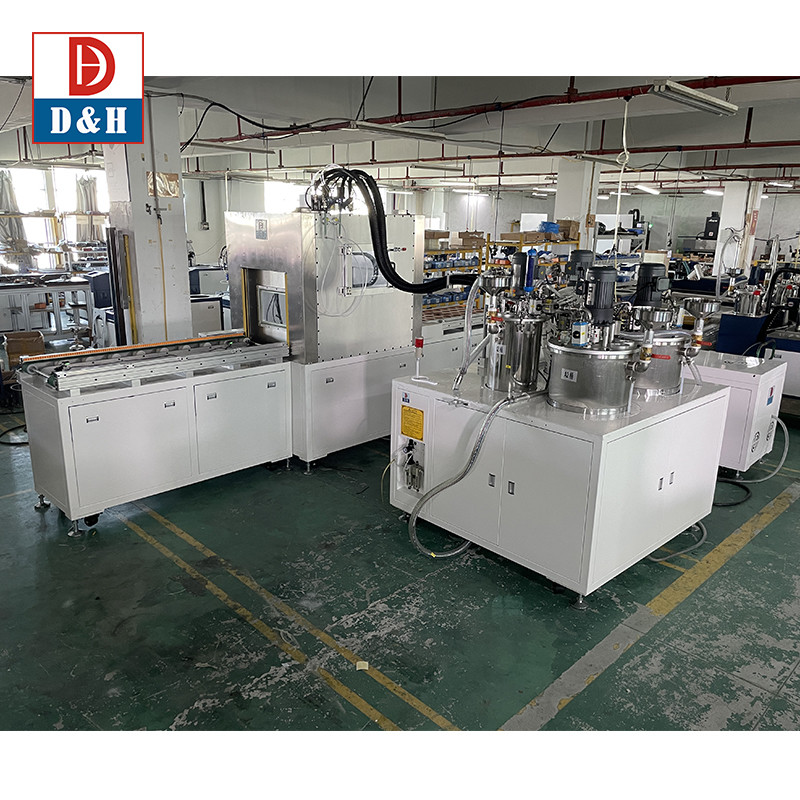

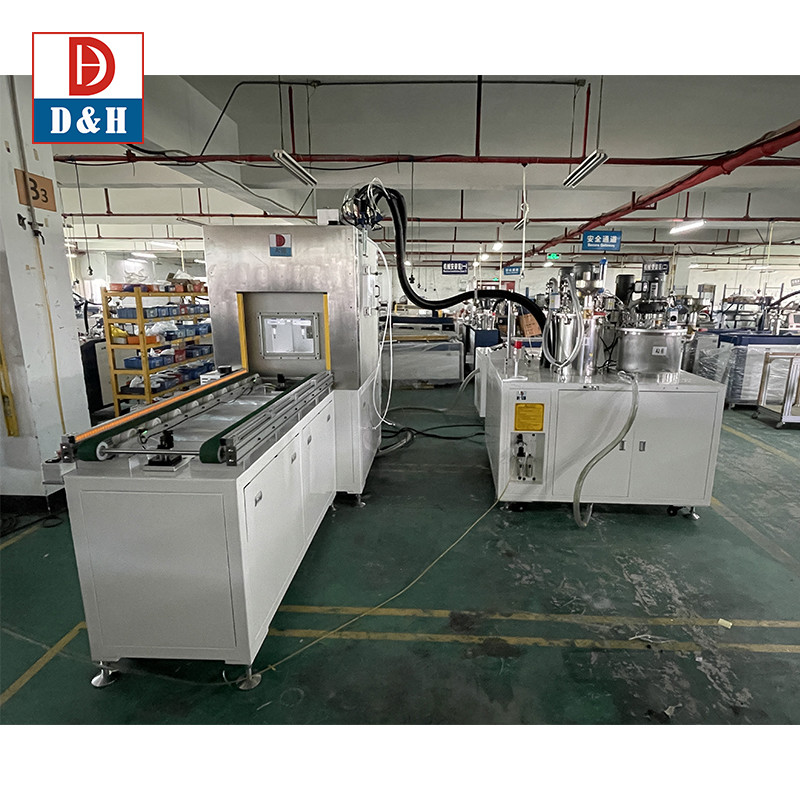

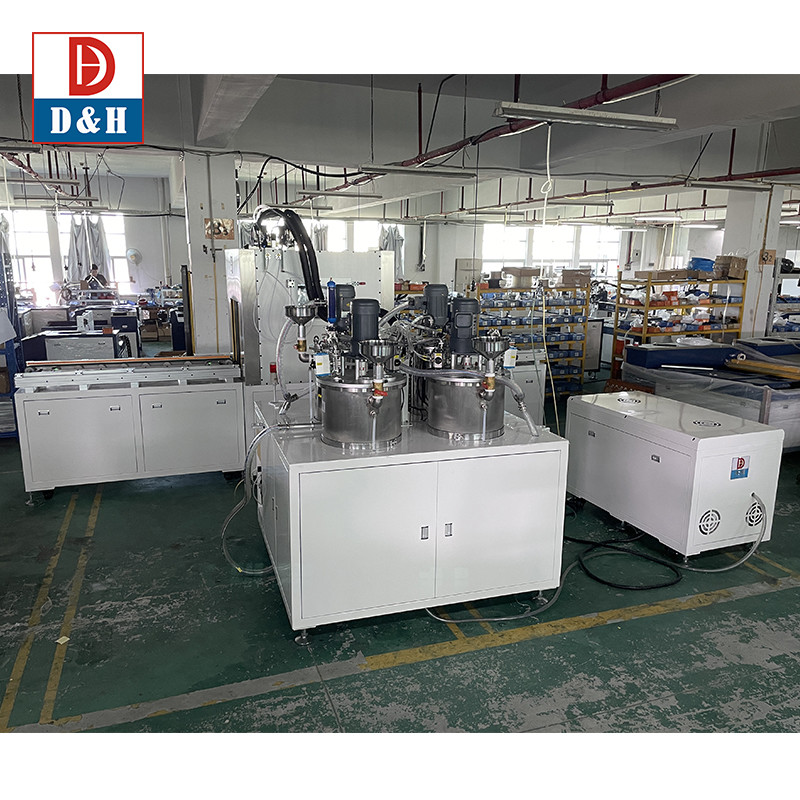

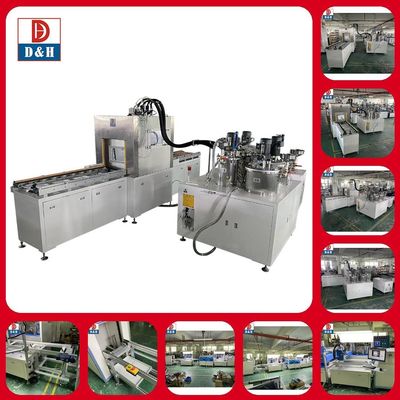

DOUBLE COMPONENT POTTING SYSTEM& UNDER VACUUM SYSTEM
E-motors potting with 2 part epoxy resins
E-motors potting with 2 part epoxy resins
We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.
We offer 2K AB adhesive materials manual potting machine and robot potting machine
1. Vacuum material-feeding system or diaphragm pump feeding system
2. High precision pump metering system
3. Dynamic/Static mixing system
4. Three-axis motion system
5. Programming control system.
2. High precision pump metering system
3. Dynamic/Static mixing system
4. Three-axis motion system
5. Programming control system.
Features&Functions
Strong versatility / Multiple configuration / High production capacity / High precision
* Auto feeding : take use of vacuum pressure to feed materials into A&B tank separately.
* Tank Stirring : A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom .
* Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C adjustable.
* Vacuum : A &B tank vacuum for degas the bubble inside material .
* Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.
1.2 Digital display vacuum degree with time setting function , PLC communicate with glue mixing machine; can work automatically.
2.1 Vacuum special glue valve used for glue potting and prevent glue from dropping .
* Auto feeding : take use of vacuum pressure to feed materials into A&B tank separately.
* Tank Stirring : A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom .
* Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C adjustable.
* Vacuum : A &B tank vacuum for degas the bubble inside material .
* Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.

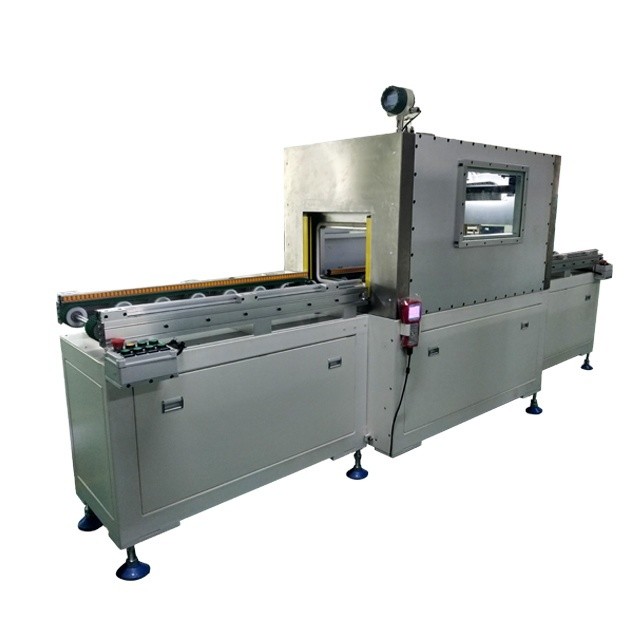

Vacuum Chamber three axis glue potting machine
1、Vacuum Chamber
1.1 Configure security grating toughened glass , observation window, inlet and outlet with safety protection device , to ensure the safety of operators.
1.1 Configure security grating toughened glass , observation window, inlet and outlet with safety protection device , to ensure the safety of operators.
1.2 Digital display vacuum degree with time setting function , PLC communicate with glue mixing machine; can work automatically.
1.3 Vacuum inspect control system , 55L/s vacuum pump to assure vacuum efficiency.
2、Vacuum glue dispensing valve
2、Vacuum glue dispensing valve
2.1 Vacuum special glue valve used for glue potting and prevent glue from dropping .
2.2 Stainless steel design for glue touched parts , rod shaft sealing parts are use original import parts to keep high durability.
2.3 Vacuum valve can be washed via self-cleaning , to prevent remained glue inside and caused blocking .
3、Three axis working platform
2.3 Vacuum valve can be washed via self-cleaning , to prevent remained glue inside and caused blocking .
3、Three axis working platform
3.1 Three axis chamber installed on the top , which is curtail the chamber volume efficiently and accelerate vacuum speed .
3.2 Touch screen operation , English & Chinese operation version , can record and display different parameter .
3.3 Program dot , line , arc , circle and some irregularity products . Glue potting files can be edit on programming or import from CAD. The program memory 99pcs . The touch screen programming support the whole column , graphical browsing , group editing and other functions.
3.4 Z axis fixed board can be adjusted up and down to adopt different work pieces on different heights , you don’t re-edit the working path , but only adjust the working path when replace the nozzles .
Tech Data
Glue ratio | 1 ：1 ---10：1 |
Ratio acurracy | ±2% |
Glue-out speed | 1g/s --24g/s（Base on glue ratio） |
Glue-out accuracy | ±2% |
Program memory | 99 pcs |
Glue viscosity | 50cps~8000cps（Reference number） |
Opearation Mode | Manual mode /Automatic mode |
Ratio Control | PLC/ Double plunger pump (Can change different type of metering pumps) |
Flow Control | Digital input |
Parameter display | Pointer / digital display |
Automatic control system | Touch screen / button switch/ third party signal |
Mixing Method | Static mixing / Automatic cleaning |
Storage Tank | Stainless steel A and B(10L,25L ,40L optional) |
Stainless steel cleaning barrel C（5L） | |
Vacuum degas（-0.1MPa） | |
Liquid level sensor（Low liquid level/high liquid level） | |
A/B Tank stirring | |
AB glue constant temperature heating(available) | |
Glue filter | |
Power | 220V/50Hz/5000W |
Outer dimension | Glue Potting Machine：995mm×600mm×1500mm |
Frame Materials | Cold rolled steel/industrial aluminum/stainless steel/sheet metal |
Category | Parameter | Category | Parameter |
Mixing ratio | 1:1—10:1 | Speed | 0-250mm/s（displacement speed） |
Working area | Inner area:500x350x100mm， Dimension:900x790x760mm | ||
Program memory | 99 pcs | Precision | ±0.1mm （accuracy of displacement） ±2%（mixing accuracy） |
Input air pressure | 0.4MPa—0.8MPa | ||
Viscosity range | 0cps~30000cps | Working path | Dot, line , arc , circle |
Operation mode | JOG/AUTO | ||
Control system | PLC | Auto control system | Industrial touch screen program with programming modification, storage and so on |
Flow control | Digital input | ||
Programming method | Teaching programming | Out-glue control system | AB glue suck-back valve /vacuum suck back skill. |
Mixing mode | Dynamic | ||
Power | 380V/50Hz/1200W | Storage system | Stainless steel tanks A Tank: 40L & B Tank: 25L (10L,25L ,40L optional) |
Vacuum degree | -0.1MPa | Vacuum time | 90S（as per different requirement） |
Application
Potting &Casting:
electronics components , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, ,underwater parts, electronic ballast ,aviation parts, aerospace...
Transformer , capacitance , power module , regulating plate ,protection module , generator , pressure package , soli relay ,fault indicator , Sensors , junction box , clutch , wave filter , water meter , battery cover , rectifier and so on ...
Applicable Materials
1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials.
Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .
Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .
