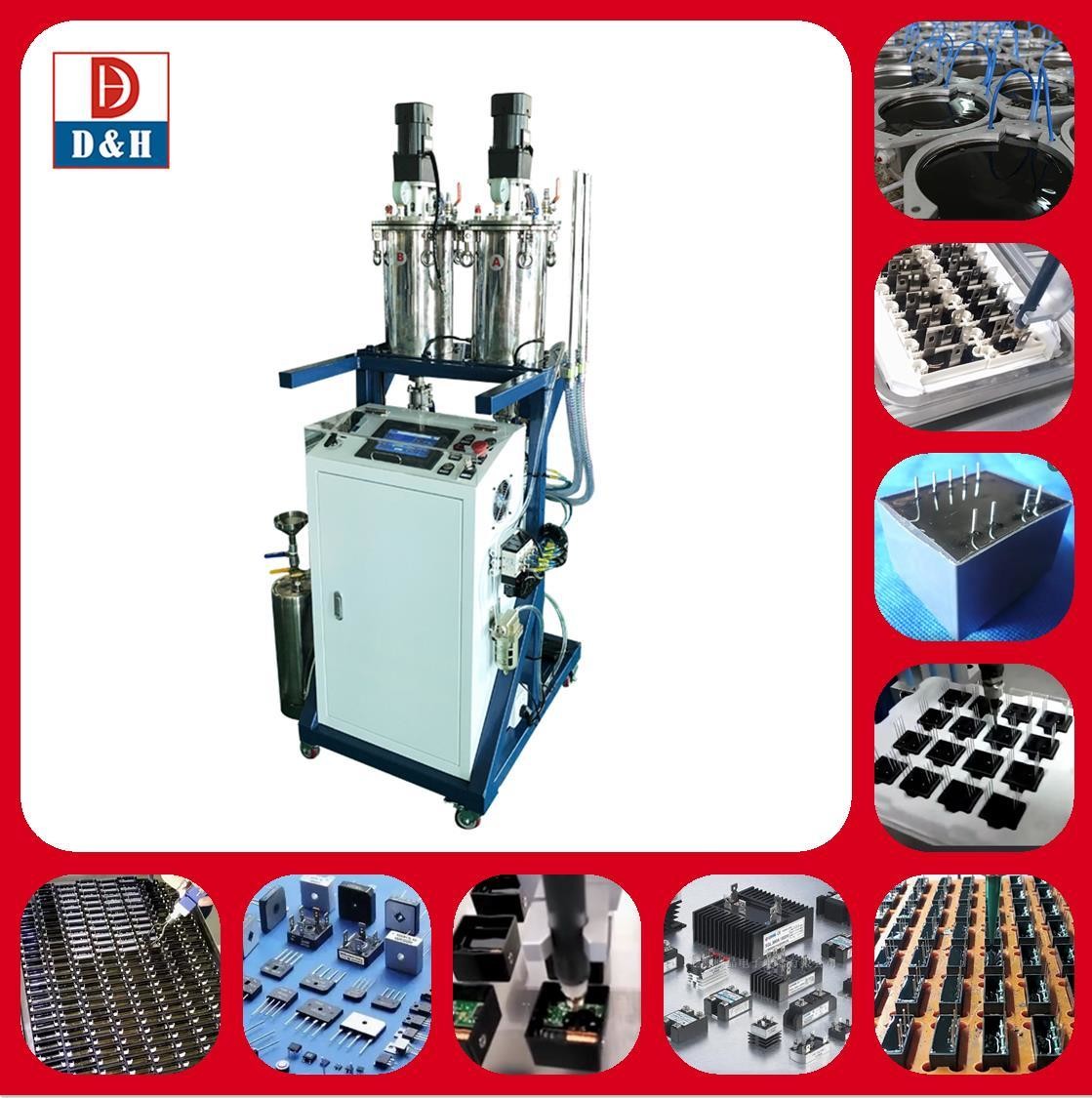

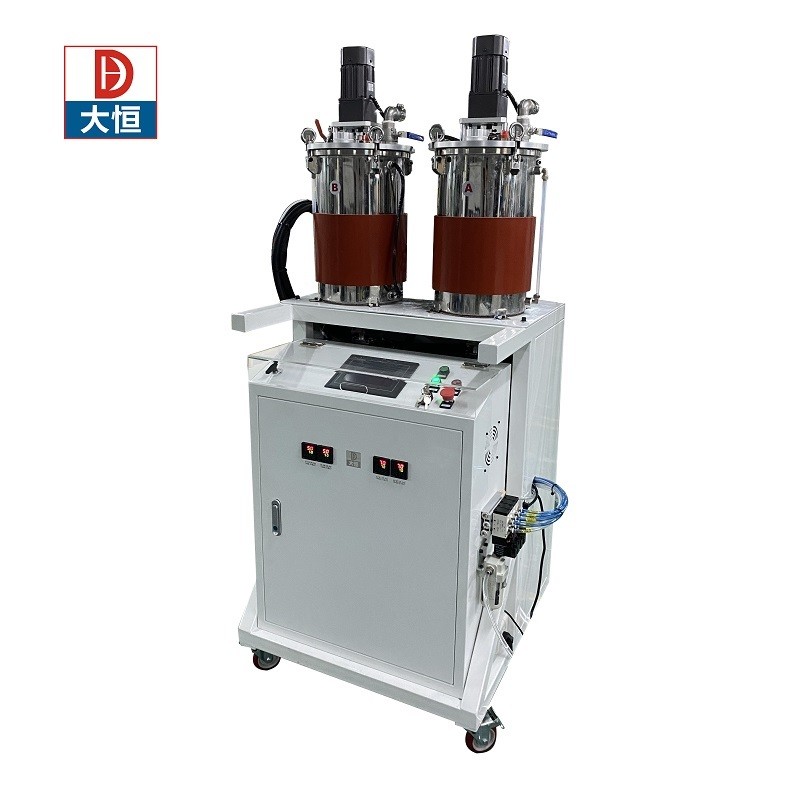

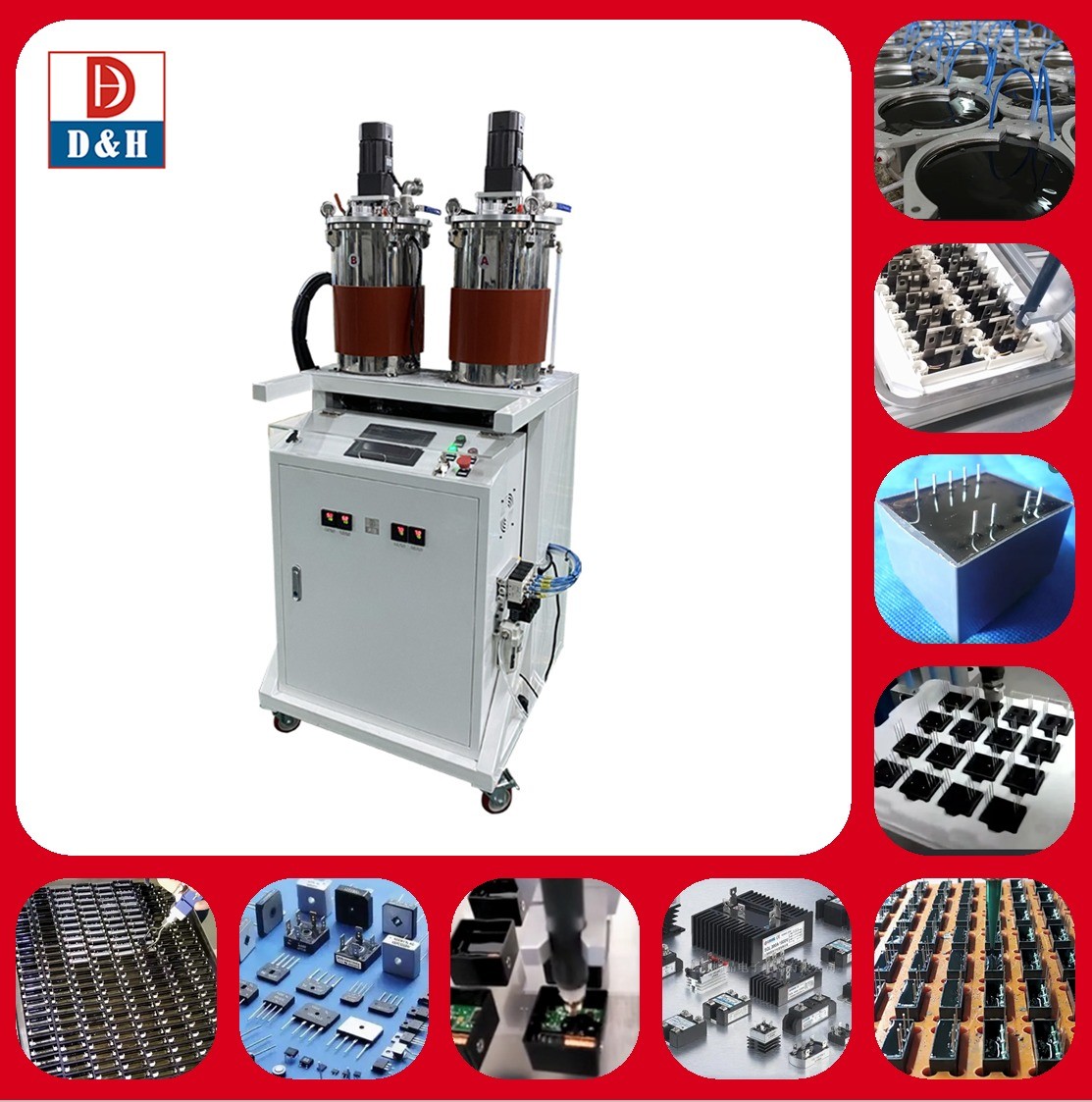

Glue mixing machine
Brand: D&H
Model:PJL-800
Applications:led strips , rigid lights , stickers , cards , labels , false water vase ,glass and so on .
Suitable Material:Two-component liquid (AB),silicon, epoxy , Polyurethane .
Features
1. Accurately ratiomixing, fully automatic mix AB glue.
2. Mixing evenly .
3. Simple adjustable andeasylabor operation
4. Universal , widely use for Capacitance, reversing radar, circuit board and so on .
5. Memory function , self-cleaning , vacuuming , and Liquid level warning
6. More functions can be customized to meet up customers' special requirements.
All Products
Automatic Grade Automatic 3 Axis CNC AB Epoxy Resin Potting Machine
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Daheng |
| Price | $9,900.00/sets 1-1 sets |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Gluing Machine | Applicable Industries | Manufacturing Plant, Energy & Mining |
|---|---|---|---|
| Showroom Location | Turkey, Italy, Viet Nam, Indonesia, India, Mexico, Russia, Spain, Malaysia, Australia | Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided | Warranty Of Core Components | 1 Year |
| Core Components | PLC, Pump | Condition | New |
| Application | PU , EPOXY ,SILICONE | Packaging Type | Poly-wood Case |
| Packaging Material | Poly-wood Case | Automatic Grade | Automatic |
| Driven Type | Electric | Voltage | 230V |
| Weight | 500 KG, 460kg | Warranty | 1 Year |
| Key Selling Points | High Precision | Name | Ab Component Liquid Dosage Machinery |
| XYZ Working Area | 1200 X 1200 X 100mm | Mixing Ratio | From 1:1 To 10:1(Adjustable) |
| Pump | Daheng Patent Plunger Pump | Out-Gluing Rate | 5-66g/5s |
| Container Volume | A:25L B:10L | Control System | PLC |
| Tank Capacity | 10L ,25L , 40L Optional | Speed | 0.5-24g/s |
Product Description
Glue gun machine gluer machinery ab component liquid dosage machinery
Working principle&Functions &configurations :

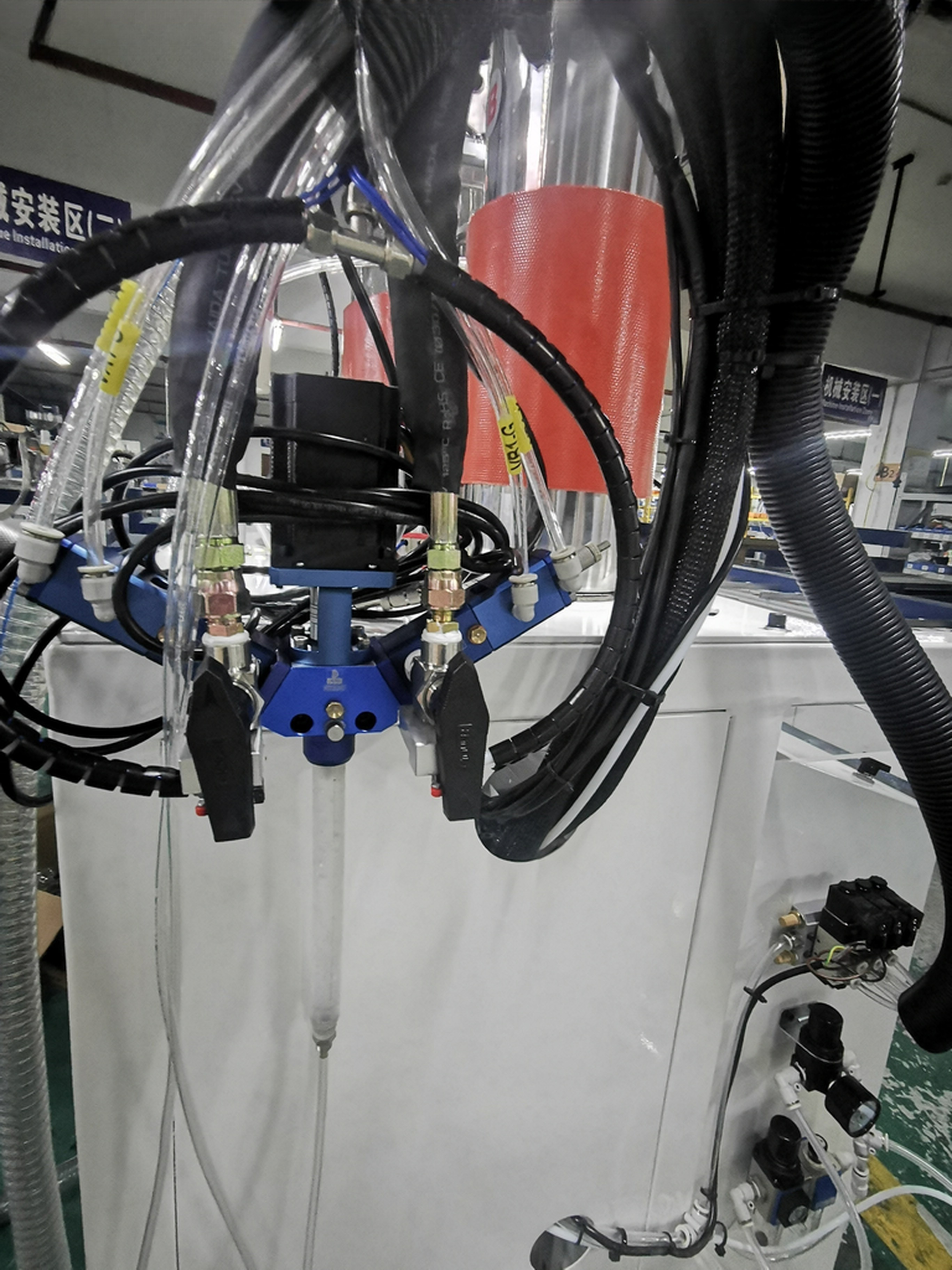

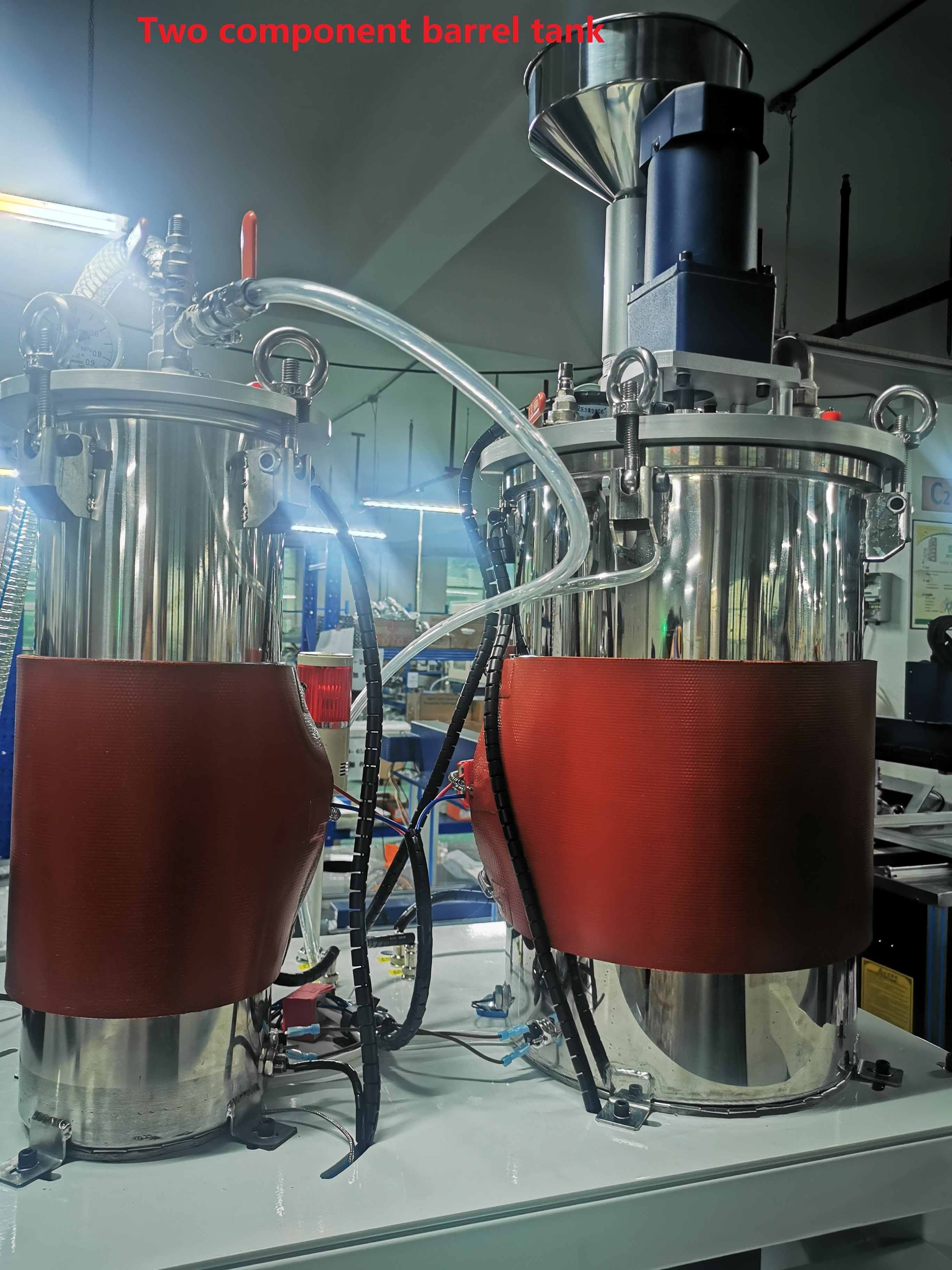

Liquid A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine, draining out liquids individually
from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
Functions &configurations : automated feeding , heating , tank stirring , vacuum , dynamic/static mixing ,self-cleaning , self-discharging .
AB ratio: 100:100-100:10 adjustable
Movement Track: Dot/Line/Arc/Circle
Speed: 500mm/s (Movement speed) 1-12g/s (gluing out speed)
Accuracy: ±0.03mm (Repeatability) ±2% (potting) ±2% (mixing)
Program: 99pcs/more
Input pressure: 0.5MPa-0.7MPa
Viscosity: 50cps-30000cps (Glue can be heated to decrease viscosity)
Operation Method: Manual/Automatic
Meter Pump: Gear pump/Screw pump/Double cylinder plunger pump
Flow Control: Digital Input
Programming method: teaching programming
Automated control system: PLC / touch screen (programming, modification, storage, etc.)
Glue control system: AB glue suction valve to achieve independent operation of AB glue
Mixed mode: dynamic and static optional, instant mixing, easy to clean
Tank：stainless steel(40L)、(25L)、（10L）optional
Power supply: 220V/50Hz/1200W ( The power consumption without heater)
Movement Track: Dot/Line/Arc/Circle
Speed: 500mm/s (Movement speed) 1-12g/s (gluing out speed)
Accuracy: ±0.03mm (Repeatability) ±2% (potting) ±2% (mixing)
Program: 99pcs/more
Input pressure: 0.5MPa-0.7MPa
Viscosity: 50cps-30000cps (Glue can be heated to decrease viscosity)
Operation Method: Manual/Automatic
Meter Pump: Gear pump/Screw pump/Double cylinder plunger pump
Flow Control: Digital Input
Programming method: teaching programming
Automated control system: PLC / touch screen (programming, modification, storage, etc.)
Glue control system: AB glue suction valve to achieve independent operation of AB glue
Mixed mode: dynamic and static optional, instant mixing, easy to clean
Tank：stainless steel(40L)、(25L)、（10L）optional
Power supply: 220V/50Hz/1200W ( The power consumption without heater)
Parameter
Adjustable ratio | 1 ：1 ---10：1 | Flow control | Digital input |
Output speed | 0.5g/s --24g/s base on ratio | ||
Automatic control system | Touch screen/ trigger switch/third party signal | Parameter display | Pipe pressure , glue temperature and parameter can be transmitted to third party device through communication module |
Viscosity | 300cps~50000cps（reference value） | Mixed mode | Dynamic mixing (automatic detect function) |
Operation mode | Manual/automatic | Ratio control | PLC/Daheng pumps |
Glue tank | Stainless tank A（40L）and stainless tank B(25L）, No machine stop when material feeding | Vacuum defoamation（-0.1MPa），4L/s | Liquid level sensor (low liquid level /high liquid level and limit liquid level) |
Mixing accuracy | ≤±2% | Voltage | 220V/50Hz/1500W |
Input air pressure | 0.4MPa—0.7MPa | Material | SPCC+Industrial aluminium+stainless +metal plate |
About Company
■ About D&H
D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.
Certifications
■ QUALIFICATION CERTIFICATE
We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing
Sales Network & Customers
Exhibition
Packing & Delivery
■ Standard Wooden Case with Vacuum Package
● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.
● By sea, for large package and quantity;
● Other ways as customer requested.
FAQ
Q：Do you offer oversea service? A：We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service. | ||||||||
Q：How dose your factory do regarding quality control? A：We assure 1 year warranty for the main part,also we offer spare part for back up. Please check with sales engineer in detail. | ||||||||
Q：What are your payment terms? A：Normally, 30% advance by T/T and balance paid off before delivery. | ||||||||
Q：Are you a factory or trading company ? A：We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years. | ||||||||
