Capacitor Manufacturing Automatic CNC AB Glue Dispensing Machine Line for Application
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Daheng |
| Price | $32,000.00/pieces 1-1 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Gluing Machine | Applicable Industries | Manufacturing Plant |
|---|---|---|---|
| Showroom Location | Turkey, Italy, Viet Nam, Indonesia, Russia, Thailand, Malaysia | Video Outgoing-inspection | Provided |
| Machinery Test Report | Provided | Warranty Of Core Components | 1 Year |
| Core Components | PLC, Pump | Condition | New |
| Application | PU,epoxies ,silicone | Packaging Type | Polywood Case |
| Packaging Material | Plastic, Polywood Case | Automatic Grade | Automatic |
| Driven Type | Electric | Voltage | 220V /380V |
| Weight | 500 KG | Warranty | 1 Year |
| Key Selling Points | High Productivity | Definition | Glue Dispensing Machine Line For Capacitor Production |
| Feeding Way | Automatic Feeding | Function | Vacuum , Heat , Stir , Self-clean |
| Mixing Way | Dynamic /static Mixing | Tank Compacity | 10L,25L , 40L Or Customized |
| Precision | ±2% | Glue-out Precision | 0.5-12g/s |
| Speed | 0-300mm/s | Pump Precision | 0.2g/s |
| Control System | PLC Programming |
Product Description
Details Images

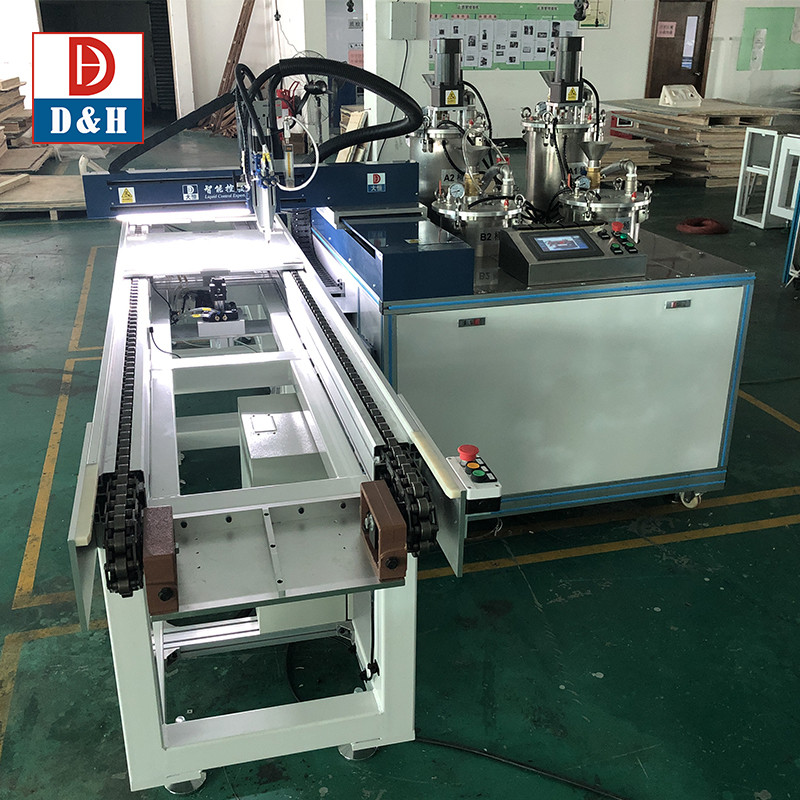

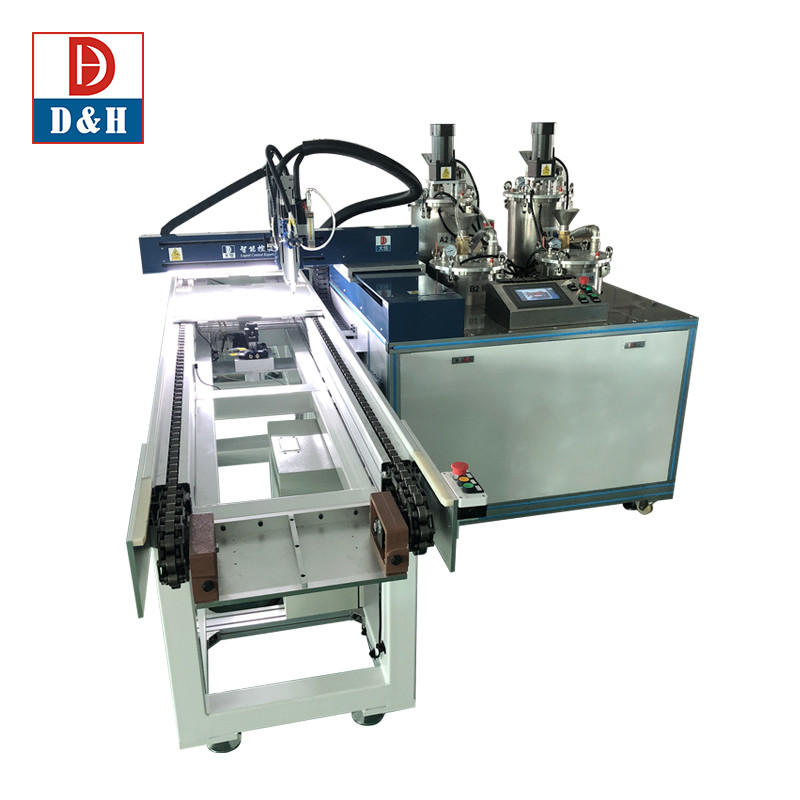

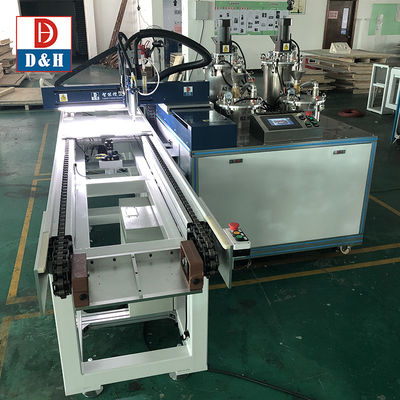

Automatic CNC auto epoxy dispenser ab glue dispensing machine line for capacitor production
Double component potting system
We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like: we can do most of them in our fully equipped testing room.
We can handle 1- and 2-component polyurethanes, epoxies,acrylics, silicone, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, filled or unfilled and even high abrasive for thermal conductivity.
Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Encapsulation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.
AB potting machine is composed of Five Systems
1. Automatic material-feeding system
2. High precision pump metering system
3. Dynamic/Static mixing system
4. Three-axis motion system
5. Programming control system.
2. High precision pump metering system
3. Dynamic/Static mixing system
4. Three-axis motion system
5. Programming control system.
AB-component materials flows into the pump through the feeding system (AB tanks) separately by the self-suction force of the metering pump.
Features&Functions
Strong versatility / High production capacity / High precision
* Auto feeding :take use of vacuum pressure to feed materials into A&B tank separately.
* Tank Stirring :A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom . * Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C adjustable.
* Vacuum : A &B tank vacuum for degas the bubble inside material .
* Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.
*Auto cleaning : self-cleaning and fully auto cleaning system assure machine keep in clean without any materials cure inside .
Advantages:
1、Accurated metering and even mixing helps to avoid the waste of material.
2、Dispensing volume and positioning keep machine work consistent and fast.
3、Good universality
4、Easy to program and operate.
5、Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device and other functional device.
2、Dispensing volume and positioning keep machine work consistent and fast.
3、Good universality
4、Easy to program and operate.
5、Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device and other functional device.
Tech Data
ITEM | Parameter |
Mixing ratio | 1:1--10:1 adjustable |
Working range | 550*650*100mm |
Displacement speed | 250mm/s（speed） |
Out-glue speed | 1-24g/s（base on the glue ratio） |
Accuracy | ±2%（output volume）±2%（mixing） |
tolerance | ≤0.2mm |
Flow control | Digital input |
Program memory | 99pcs |
Motion trail | Dot , line ,curve ,circle |
Automatic controlling system | Touch screen (to achieve program programming, modification, storage and so on |
Out-glue control system | AB glue back suction valve, achieve AB glue independent operation |
programmatically | Tech programming |
Mixing method | dynamic mixing |
Power supply | 220V/50Hz/1500W |
Air source | 0.5-0.8Mpa |
Viscosity range | 50-20000cps |
Outer dimension | 1500L*1200W*1600H mm |
A tank | 25L stainless tank（optional） |
B tank | 10L stainless tank（optional） |
Others | AB tank 、A pump、AB pipeline heating function |

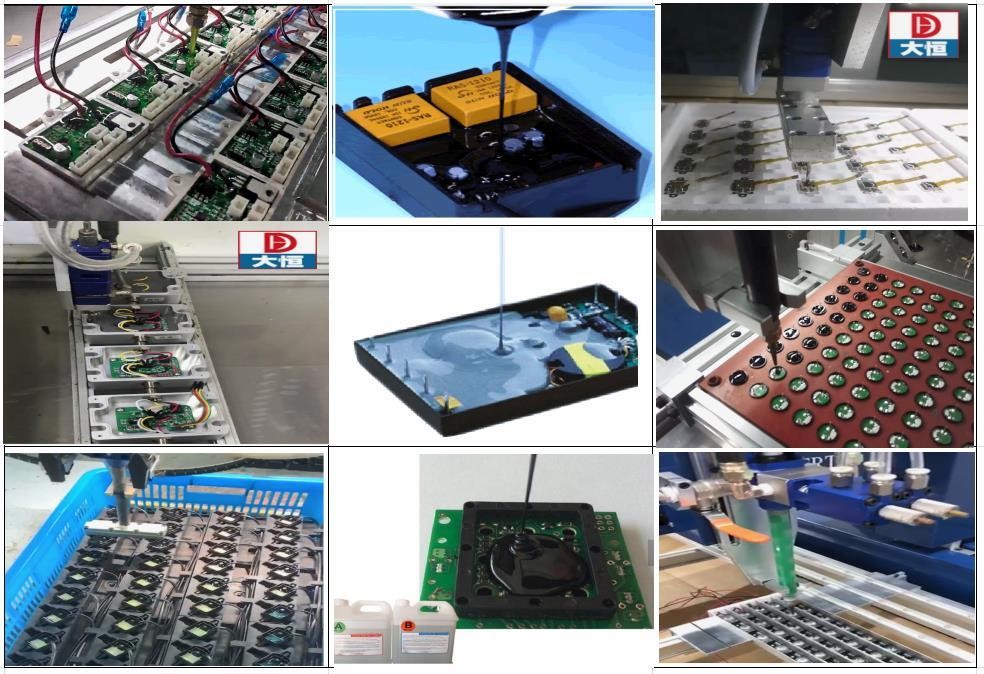

Application
1. Potting&Encapsulation &Casting: electronics components , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast , motor , art mold ,aviation parts, aerospace parts .
2. Dispensing&Dosing: LED strip , led lamp , led bulb , aluminum,led screen , display module / medical parts，medical liquid filling ...
3. Bonding&doming: LCD screen ,LOCA bonding，ABS plastic / different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics .
2. Dispensing&Dosing: LED strip , led lamp , led bulb , aluminum,led screen , display module / medical parts，medical liquid filling ...
3. Bonding&doming: LCD screen ,LOCA bonding，ABS plastic / different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics .

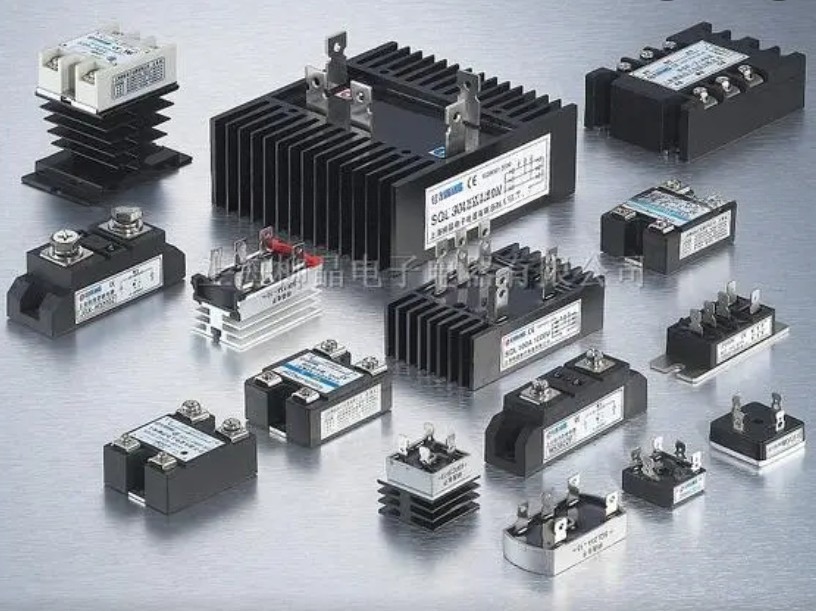

Main Applications in electronics appliances
Transformer , capacitance , power module , regulating plate ,protection module , generator , pressurepackage , solid relay ,fault indicator , Sensors , junction box , clutch , wave filter , water meter , battery cover , rectifier and so on ...
Suitable material
1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials.
Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, dual-component compound material UV materials and so on .
Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, dual-component compound material UV materials and so on .
Working Principle
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
About Company
■ About D&H
D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.
Certifications
■ QUALIFICATION CERTIFICATE
We have more than 30 national patents, and are at the industry pioneer level in the core technologies of adhesive potting and dispensing .
Sales Network & Customers
Exhibition
Packing & Delivery
■ Standard Wooden Case with Vacuum Package
FAQ
Q：Do you offer oversea service? A：We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service. | ||||||||
Q：How dose your factory do regarding quality control? A：We assure 1 year warranty for the main part,also we offer spare part for back up. Please check with sales engineer in detail. | ||||||||
Q：What are your payment terms? A：Normally, 30% advance by T/T and balance paid off before delivery. | ||||||||
Q：Are you a factory or trading company ? A：We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years. | ||||||||
