Line Moving Track Glue Dispenser with High Speed and Precision Repetition of /-0.02mm
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | D&H |
| Price | $3,900.00/sets >=1 sets |
| Packaging Details | Wooden carton <br>semi-automatic glue dispenser |
| Supply Ability | 600 Set/Sets per Month semi-automatic glue dispenser |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Weight (KG) | 3000 |
|---|---|---|---|
| Video Outgoing-inspection | Provided | Machinery Test Report | Provided |
| Marketing Type | Ordinary Product | Warranty Of Core Components | 1 Year |
| Core Components | PLC, Bearing, Gear, Pump | Warranty | 13 Months |
| Applicable Industries | Manufacturing Plant | Showroom Location | Egypt, Turkey, Italy, Viet Nam, Philippines, Russia, Malaysia |
| Definition | Glue Dispensing Equipment | Size | L610 X W500 X H600mm |
| Weight | 40kg | Operate Mode | Button Or Hand Terminal |
| Moving Track | Dot,Line,Arc,Circle | Nozzle | 1~6 Heads Optional |
| Repetition Precision | +/-0.02mm | Working Area | 300x300x100mm |
| Desktop Glue Dispenser | High Precise Glue Dispenser | Three-Axis Glue Dispenser | Semi Automatic Glue Machine |
| Port | Guangzhou, Shenzhen |
Product Description
Glue Dispensing Equipment High Speed Automatic SMT Glue Dispenser Dispenser paste Machine
Desktop Three-Axis Glue Dispenser SZD-300
Main Technical Data:
| Model & Type: | SZD-400 Desktop Gluing Dispenser |
| Certificate | CE, SGS |
| Dimension | L610 X W500 X H600mm |
| N.W. | 40kg |
| XYZ Working Area | 395x395x95 mm |
| Flow Speed | 0-66g/5s, or customized |
| Moving Speed | 0-300mm per second |
| Glue & Ratio | 1:1 to 20:1, Epoxy, Silicone, PU, UV |
| Repeatability | +/-0.02g |
| Accuracy | +/- 1% |
| Power | AC220V or AC 380V |
Features and Benefits:
1) Easy operation
Touch screen, English interface, store data, alarm system.
2) High accuracy of glue control:
All key parts imported, with unique control system, no affected by air pressure, avoiding uneven gluing, glue drawing, deckle edge, etc.
3)Quick program editing
In the gluing control system, we can store 99 programs according to different models of the products which have different dispensing track. It's very easy to select one of the programs when dispensing.
4) Simple adjustment for syringes:
Syringes can be adjusted in directions of up and down, left and right at a certain range, without change for the dispensing track.
5) Great generality, high speed:
1, 2, 4 needles dispensing head are available to improve the speed, widely used in various fluid, industry, and graphics (dot, line, curve, arc and round etc.)

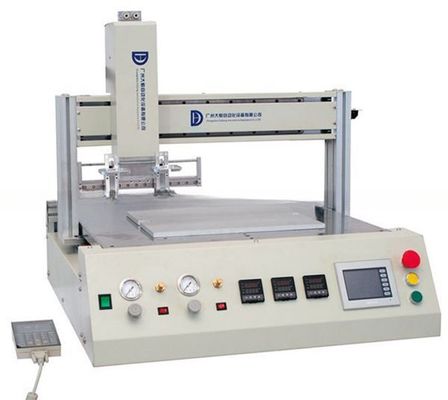

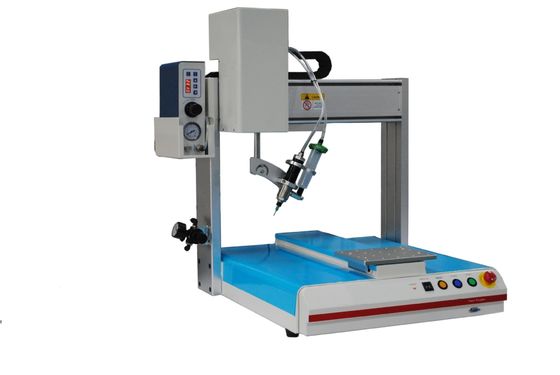

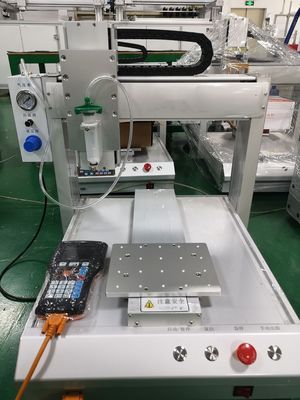

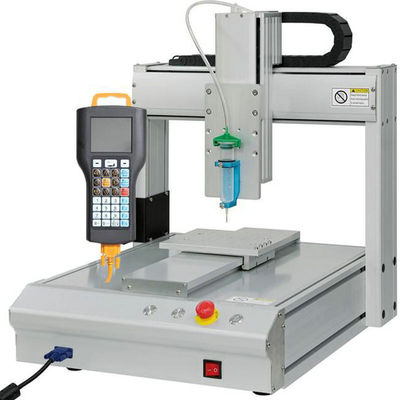

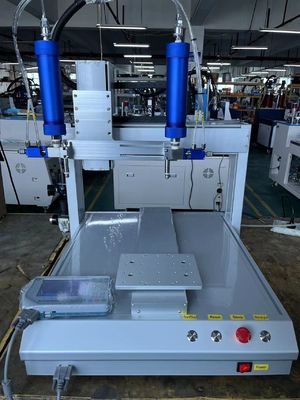

Products Pictures:
Application:
SMD, bulb lamp, COB binding, hand touch, TOP, dot matrix modules, circuit board, relay, cell phone and some other electric product with glue.
Certification:
Factory Tour
Parts of our Oversea Customers
WHO ARE WE & WHY CHOOSE US?
Guangzhou Daheng founded in 2006, is one of the leading manufactuers for gluing machines in China. We mainly provide fully automatic and semi automatic AB glue dispensing machine for various application.
We are headed in Guangzhou, have branches in Shenzhen, Shanghai, Beijing, Zhongshan, Xiamen; exported regularly to many coutries such as Thailand, Malaysia, Singapore, Turkey, Dubai, India, Netherland, Ukraine, Russia, etc. Based on years of customers experience, we built up very complete and helpful sales service.
