High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm

  • High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm
  • High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm
  • High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm
  • High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm
  • High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm
  • High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm
Place of Origin Guangdong, China
Brand Name Daheng
Price $9,000.00/pieces 1-1 pieces
Packaging Details According to the customer requirement
Supply Ability 50 Piece/Pieces per Month MOQ=1PCS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Gluing Machine Applicable Industries Manufacturing Plant
Showroom Location Turkey, Italy, Viet Nam, Russia, Malaysia Video Outgoing-inspection Provided
Machinery Test Report Provided Warranty Of Core Components 1 Year
Core Components PLC, Pump Condition New
Packaging Type Case, Pallets Packaging Material Wood, Polywood Case
Automatic Grade Automatic Driven Type Electric
Voltage 230V 380V Weight 50 KG
Warranty 1 Year Key Selling Points High-accuracy
Name Glue Pasting Machine Working Area 2200x2200x100
Machine Type XYZ ROBOT Moving Precision ±0.1mm
Minimum Output 0.1ml Control Mode Pneumatic
Programming Teach Pendant -touch Screen Programming Memory 999pcs
Marketing Type Ordinary Product Port Guangzhou
Leave a Message
Product Description
Product Overview

Sealant dispensing device 1K adhesive dispensing machine glue pasting machine

* This machine widely use in LED , electronics , auto industry , solar panels，auto door which are suitable for vary kinds of materials like silicone ,epoxy, PU ,UV glue and so on . The machine can work with different paths including dot , line , circle and arc .

* If customer use single-component glue(AB glue mixture) , the syringe can be 5cc ,10cc,55cc ,70cc , 100cc , 200cc and 300cc can be optioanal ;
If customer use glue package for 300ml or 2600ml , the cartridges can be 300ml and 2600ml.
Other 20L , 40L 60L Pail materials .
FEATURES AT A GLANCE

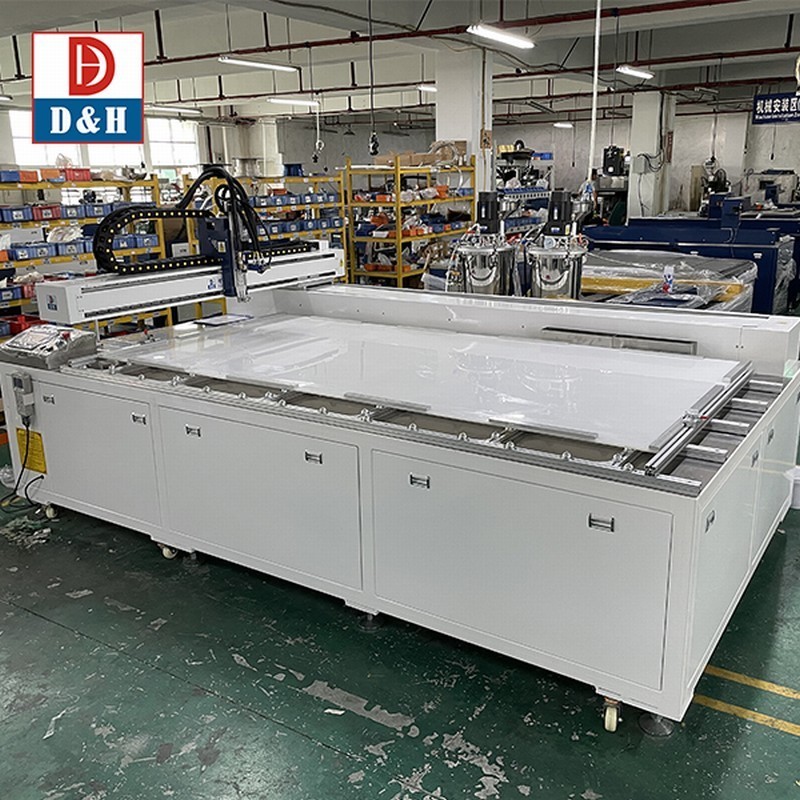

High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm 0
Front elevation

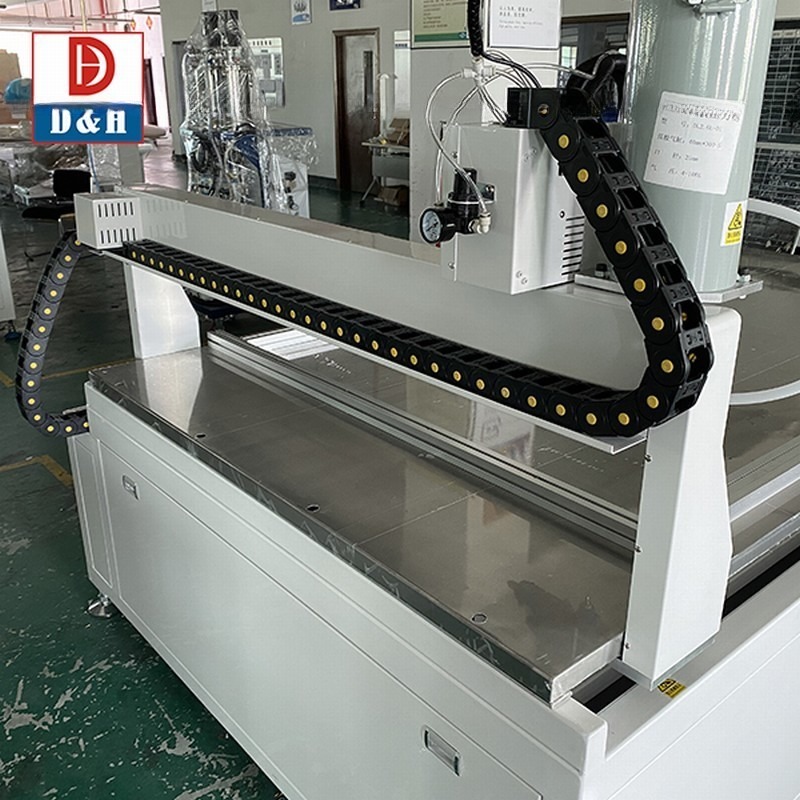

High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm 1
Front elevation

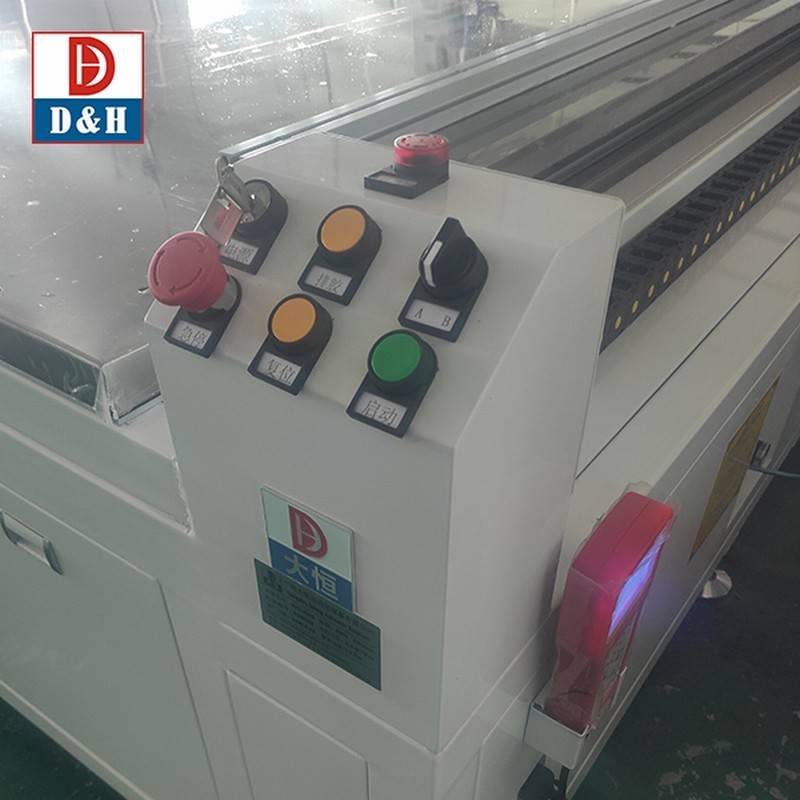

High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm 2
Front elevation
PRODUCT SPECIFICATIONS
Item
Parameter
Work range
X
2200mm
Y
1200mm
Z
100mm
Speed
X
300mm/s
Y
300mm/s
Z
100mm/s
Repeatability
X
±0. 2mm
Y
±0. 2mm
Z
±0.2mm
Accuracy
0.1ml
Weight
400KG
Power supply
AC220V 50Hz
Air supply
0.4MPa---0.8MPa
Dimension
L1960mm xW1550mm x H1238.2mm
PRODUCT CONFIGURATION
Category
Configuration
Quantity
Frame
Carbon steel frame
1 set
Control System
Hand Terminal/Motion Control Card
1 set
Three axis running platform
Transmission sliding gear device
3 sets
stepping motor
3 sets
Lead shine driver
3 sets
Others
Fixture & tool
1 set
SIMILAR PRODUCTS
High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm 3
High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm 4
High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm 5
About Company
High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm 6

■ About D&H

D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.
High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm 7
High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm 8
Certifications
High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm 9

■ QUALIFICATION CERTIFICATE

We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing

Sales Network & Customers
High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm 10
High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm 11
Exhibition
High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm 12
Packing & Delivery
High Precision Sealant Dispensing Device Minimum Output 0.1ml Moving Precision ±0.1mm 13
■  Standard Wooden Case with Vacuum Package
● By air, for sample and small package, international express like DHL, UPS, EMS...
● By sea, for large package and quantity;
● Other ways as customer requested.
FAQ
Q：Do you offer oversea service?
A：We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service.
Q：How dose your factory do regarding quality control?
A：We assure 1 year warranty for the main part,also we offer spare part for back up.
Please check with sales engineer in detail.
Q：What are your payment terms?
A：Normally, 30% advance by T/T and balance paid off before delivery.
Q：Are you a factory or trading company ?
A：We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years.
