2.High precision valve: high speed, glue off clean, no glue drawing, no dropping.
3. Core metering pump specially design for different material from low to high viscosities.
4. Mix glue A & B more evenly; no more or no less for agent B.
All Products

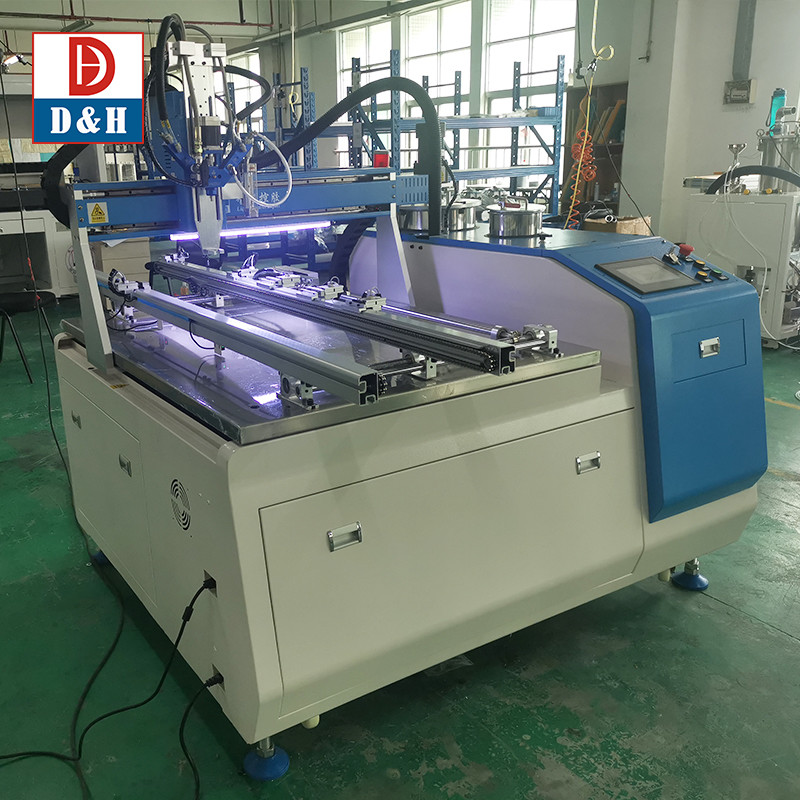

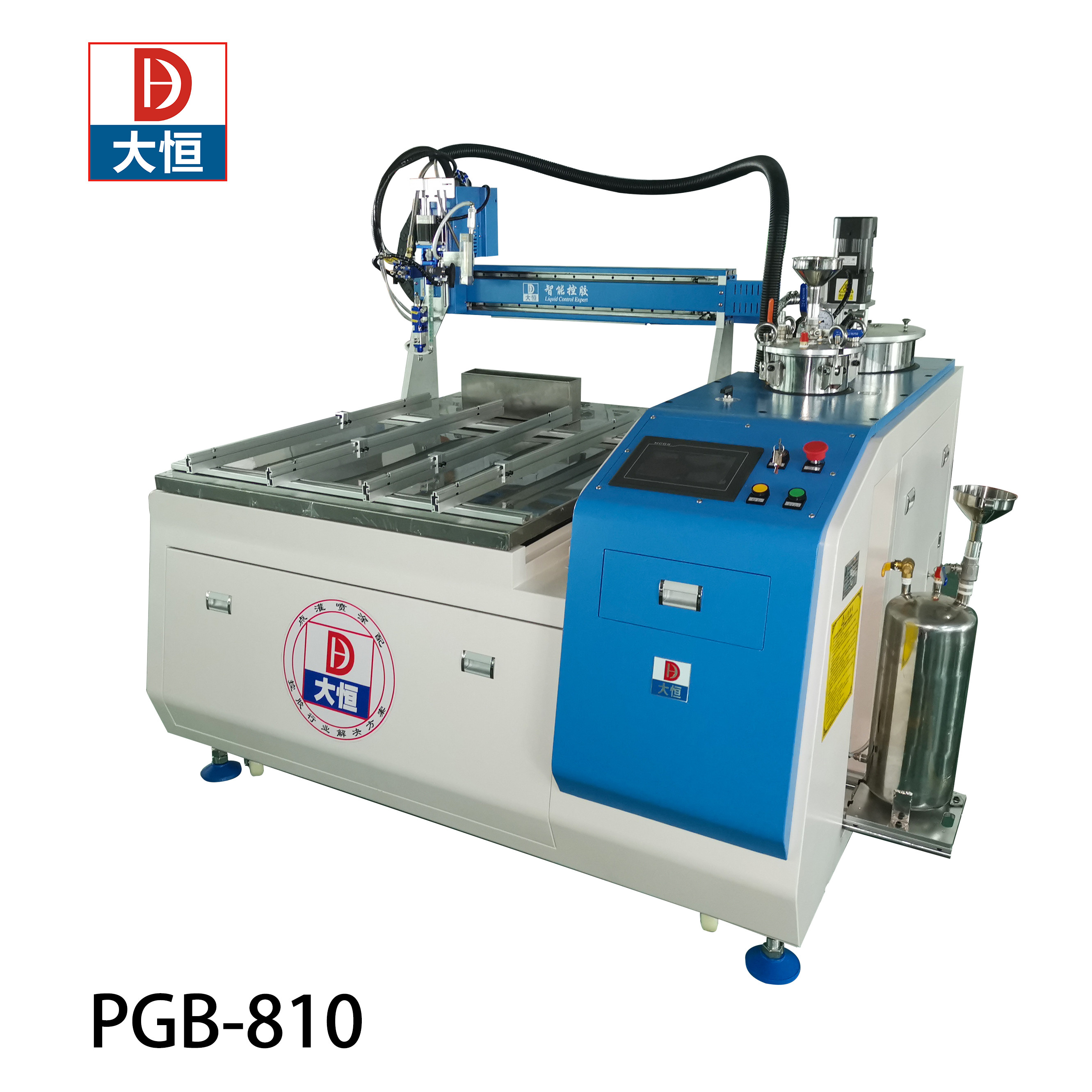

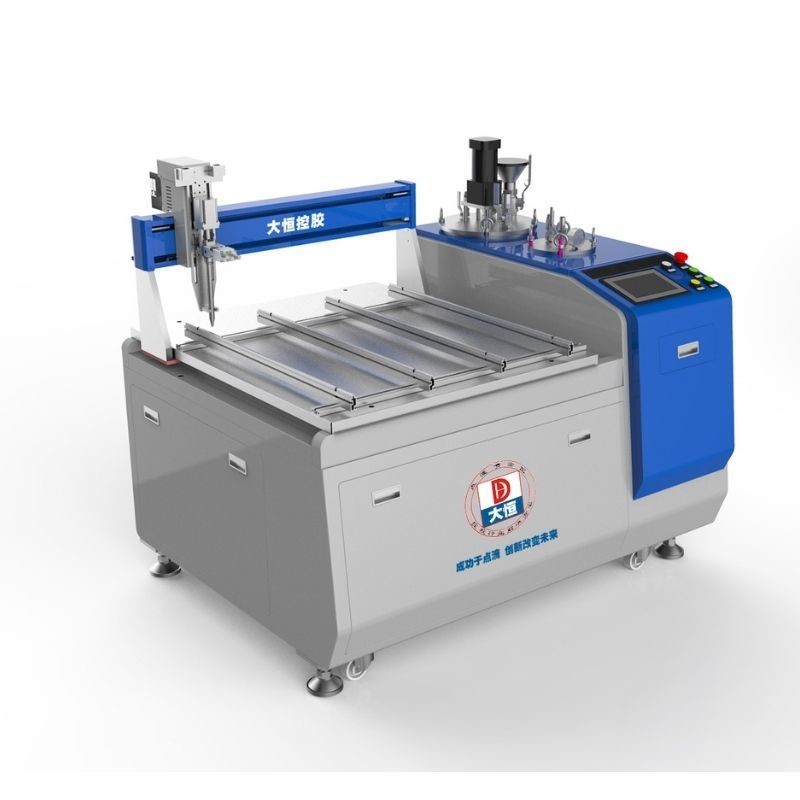

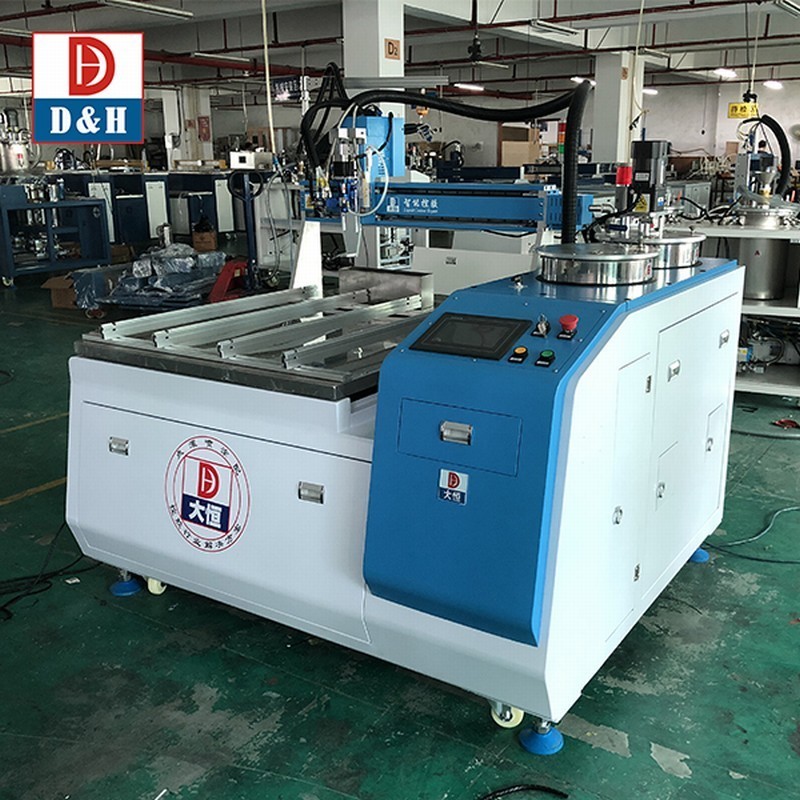

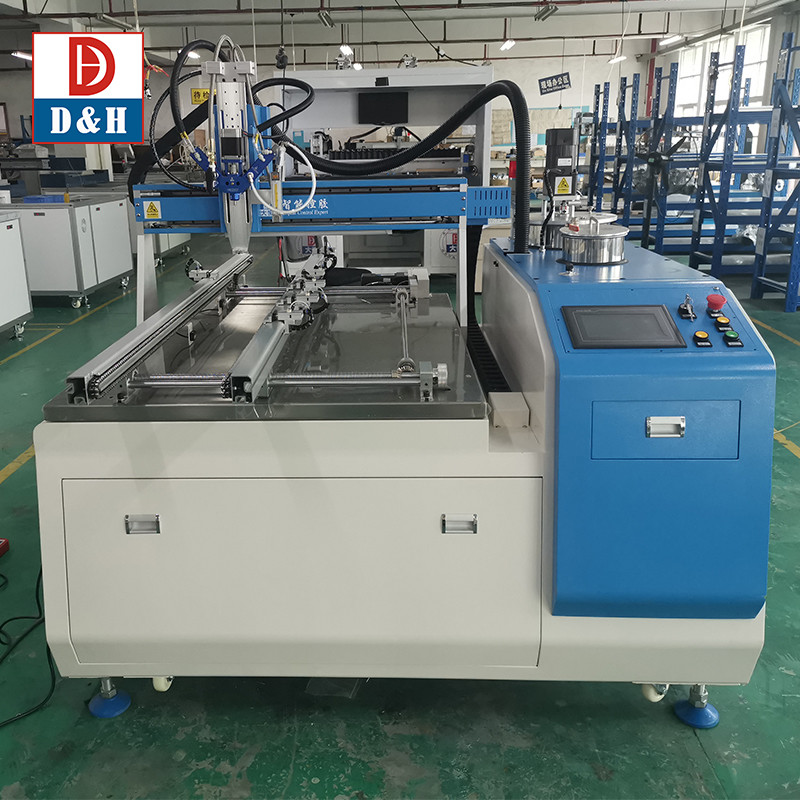

40L Tank Capacity Polyurethane Dispensing Machine for Epoxy Micro Dispensing Design
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Daheng |
| Price | $11,900.00/pieces 1-1 pieces |
| Packaging Details | According to the customer requirement |
| Supply Ability | 50 Piece/Pieces per Month MOQ=1PCS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Filling Machine |
|---|---|---|---|
| Machinery Capacity | 1000BPH | Applicable Industries | Manufacturing Plant, Retail, Printing Shops, Construction Works , Energy & Mining |
| Showroom Location | Turkey, Italy, Viet Nam, Indonesia, Russia, Malaysia | Application | Chemical, Manufacturing Plant |
| Packaging Type | Case | Packaging Material | Wood |
| Automatic Grade | Automatic | Driven Type | Electric |
| Voltage | 380V/220V Customized | Weight | 500 KG |
| Warranty | 1 Year | Key Selling Points | High Productivity |
| Filling Material | Liquid | Filling Accuracy | ±2% |
| Machinery Test Report | Provided | Video Outgoing-inspection | Provided |
| Warranty Of Core Components | 1 Year | Core Components | Pump, PLC |
| Feeding Way | Automatic Feeding | Function | Vacuum , Heat , Stir , Self-clean |
| Mixing Way | Dynamic /static Mixing | Tank Compacity | 10L,25L , 40L Or Customized |
| Precision | ±2% | Glue-out Precision | 0.5-12g/s |
| Speed | 0-300mm/s | Pump Precision | 0.2g/s |
| Control System | PLC Programming | Port | Guangzhou |
Product Description
Why Choose Us
polyurethane dispensing machine epoxy micro dispensing machine
We Daheng Automation specialize in different types of potting and dispensing system. No matter what your resin application requirements look like，we can do most of them in our fully equipped lab. We can handle 1- and 2-component polyurethanes, epoxies, acrylics, silicons, temperature, humidity and UV curing materials. They can be from low- to high-viscosity, and even high abrasive ,high fillers ,high density for thermal conductivity.
Potting and dispensing is the process of embedding products & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Potting insulation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.
We offer automatic ,se-mi automatic fluid dispensing potting machine and the related production line and vacuuming systems .2 Part Silicone plyurethane epoxy potting dispensing machine AB Resins compound dosing , dispensing ,potting system ,2K potting technology AB glue dispensing machine Epoxy dispensing machine Two-component dispensing machine，Dual-component dispensing machine,Meter-mix dispensing machine，Resin dispensing machine Adhesive dispensing system，Dispensing robot with high precision Dispensing valve, Liquid dispenser , Automated dispensing equipment
Potting and dispensing is the process of embedding products & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Potting insulation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.
We offer automatic ,se-mi automatic fluid dispensing potting machine and the related production line and vacuuming systems .2 Part Silicone plyurethane epoxy potting dispensing machine AB Resins compound dosing , dispensing ,potting system ,2K potting technology AB glue dispensing machine Epoxy dispensing machine Two-component dispensing machine，Dual-component dispensing machine,Meter-mix dispensing machine，Resin dispensing machine Adhesive dispensing system，Dispensing robot with high precision Dispensing valve, Liquid dispenser , Automated dispensing equipment
Introduction :
1. Working Mode: controlled by PLC module and MCGS touch screen.
Working principle:
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
Title goes here.
1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank .
2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature
3. Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level .
4. Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure .
5. Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve
6 .Tank with heater which can preheat materials to assure good flowability .
7. Tank with artificial feeding mouth that can be added glue appropriately by hand .
8 Tank with silica-dryer which can prevent material especially PU from crystallization .
D&H Pump technology
1. Two cylinder plunger pumps work by durable motors.
2.The biggest flow volume :24g/s，Repetition accuracy:0.2g.
3.Also Suitable for high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.
Valve technology
1. Two cylinder plunger pumps work by durable motors.
2.The biggest flow volume :24g/s，Repetition accuracy:0.2g.
3.Also Suitable for high viscosity glue: 50cps~35000cps.
4. Suitable for big flow dispensing or slight flow dispensing.
5. Suitable for frequent start and stop dispensing.
6. Anti-wear, Anti-corrosion, super long life time.
Tech Data
ITEM | Parameter |
Mixing ratio | 1:1--10:1 adjustable |
Working range | 550*650*100mm |
Displacement speed | 500mm/s（speed） |
Out-glue speed | 0.5-12g/s per single pump |
Accuracy | ±2%（output volume）±2%（mixing） |
tolerance | ≤0.03mm |
Flow control | Digital input |
Program memory | 99pcs-999pcs |
Motion trail | Dot, Line, Curve, Circle |
Automatic controlling system | Touch screen (to achieve program programming, modification, storage and so on |
Out-glue control system | AB glue back suction valve, achieve AB glue independent operation |
Programmatically | Tech programming/or computer systems (Micro software Windows 7,Windows10 optional) |
Mixing method | dynamic mixing |
Power supply | 220V/50Hz/1500W without heating |
Air source | 0.5-0.8Mpa |
Viscosity range | 50-20000cps |
Outer dimension | 1500L*1200W*1600H mm |
A tank | 10L 25L 40L stainless tank（optional） |
B tank | 10L 25L 40L stainless tank（optional） |
Others | AB tank 、A pump、AB pipeline heating function |
PLC Operation Controlling System
1 Dispensing volume is controlled by the speed of pump’s motors ; Glue speed adjustable within the speed range .
2 Machine with detecting function that detect the speed and running time of pumps to ensure the ratio reliability.
3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .
4 Machine with gel resistance calculator , which prevent the mixture curing inside .
5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .
6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .
7 Reserved PLC communication interface, which easy connecting with outside device .
8 Equipped with a safety lock to prevent staff from wrong operation .
3 Adjustable gluing-out volume make sure glue A/B dispense out at the same time from glue valve to get better glue mixing effect .
4 Machine with gel resistance calculator , which prevent the mixture curing inside .
5 You can set single gluing-out and steady gluing-out function to meet up with your different process requirement .
6 Whole machine system and function is controlled by Panasonic PLC and MGCS touch screen .
7 Reserved PLC communication interface, which easy connecting with outside device .
8 Equipped with a safety lock to prevent staff from wrong operation .
Item No. | Machinery parts | Function description | ||
1 | Main body | Cold-Roll Steel /Metal plate/aluminium | ||
2 | Three-axis moment platform | synchronous belt | XY axis synchronous，Z axis silk rod | |
3 | Step motor/driver | Three axis motor | ||
4 | Movement sensor | Three-axis limit | ||
5 | Bearing | three axis and metering pump | ||
6 | Glue supplying system | A/B tanks | Stainless vacuum tank | |
7 | A/B glue liquid level sensor | ball float type liquid level switch | ||
8 | A glue stirrer | This function select base on glue feature; to prevent the glue from sediment . | ||
9 | A/B Teflon glue pipe | Antirosion,stable flexibility | ||
10 | Y type filter | Prevent impurity come into glue pipe and pump and lock | ||
11 | Vacuum defoamation | Make vacuum defoation to AB glue that with vacuum negative pressure glue refilling function | ||
12 | Constant temperature heater | A glue tank /B glue tank constant temperature heater (room temperature 80 degree) | ||
13 | Metering&Mixing system | Metering Pump | double cylinder plunger pump | |
14 | Dynamic mixing | Glue mixing &stirring with self-detecting function | ||
15 | Self-cleaning | Cleaning the mixture part of the machine | ||
16 | Self-cleaning | Glue B flow meter & non-return valve | ||
17 | Controling system | PLC | Programmable logic controller, glue application control center | |
18 | pneumatic component | Solenoid valve/pressure regulating valve | ||
19 | electronic component | Relay/contactor/power supply/Temperature controller/earth leakage circuit breaker/button switches and so on | ||
20 | Touch screen control panel | Touch control panel | ||
21 | Others | Fixtures | Customized as per fixture | |

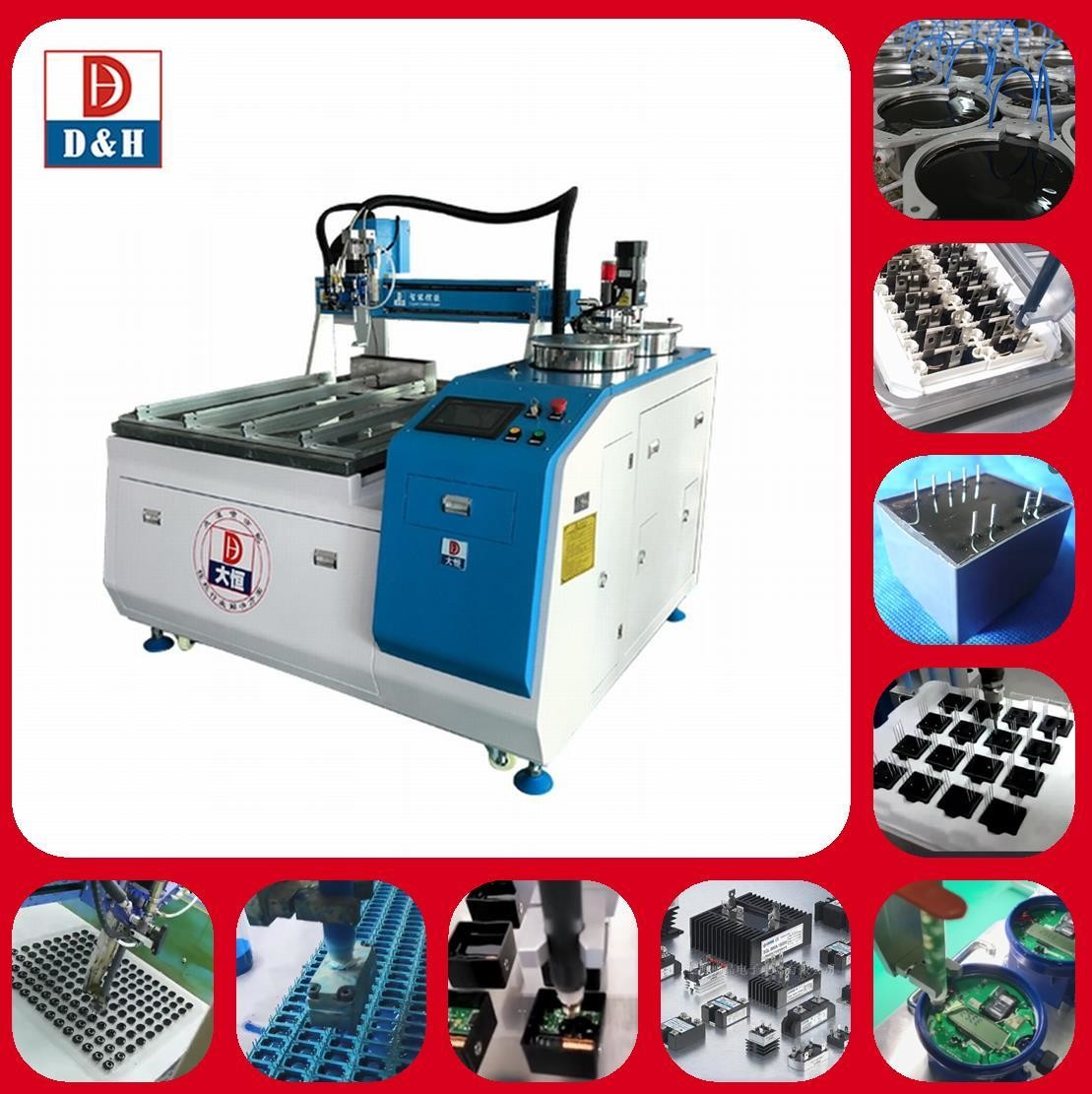

Application
1.Potting&Isolating &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....
2.Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling....
3.Bonding&doming : LCD screen ,LOCA bonding，ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts ,photo frame , and other arts graphics....
Applicable material
1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials. Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .
Our customer cases
Service Term
1. Staff training
Seller is responsible to provide machine’s training including installation, debugging, maintenance to assured customer can totally use the operation skills and well acknowledge maintenance of machine .
2.Maintenance Service
2.Maintenance Service
2.1 Seller provide one year warranty period and support free maintenance service during warranty . Software upgrade service is provided for a long life time.
2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you part
replacement free, buyer pay for the shipment. Double-liquid valve should be bought at its cost price.
2.3 If the parts of the machine become broken past warranty , the parts replacement should be shouldered by buyer.
2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you part
replacement free, buyer pay for the shipment. Double-liquid valve should be bought at its cost price.
2.3 If the parts of the machine become broken past warranty , the parts replacement should be shouldered by buyer.
